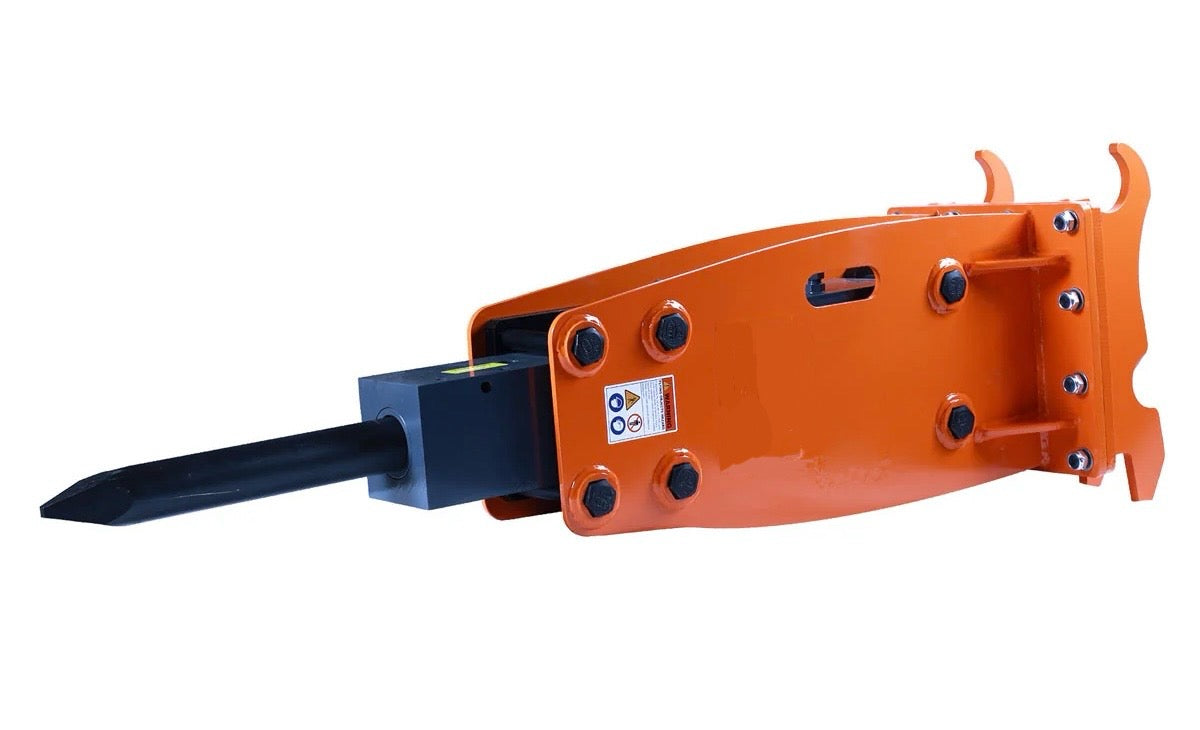

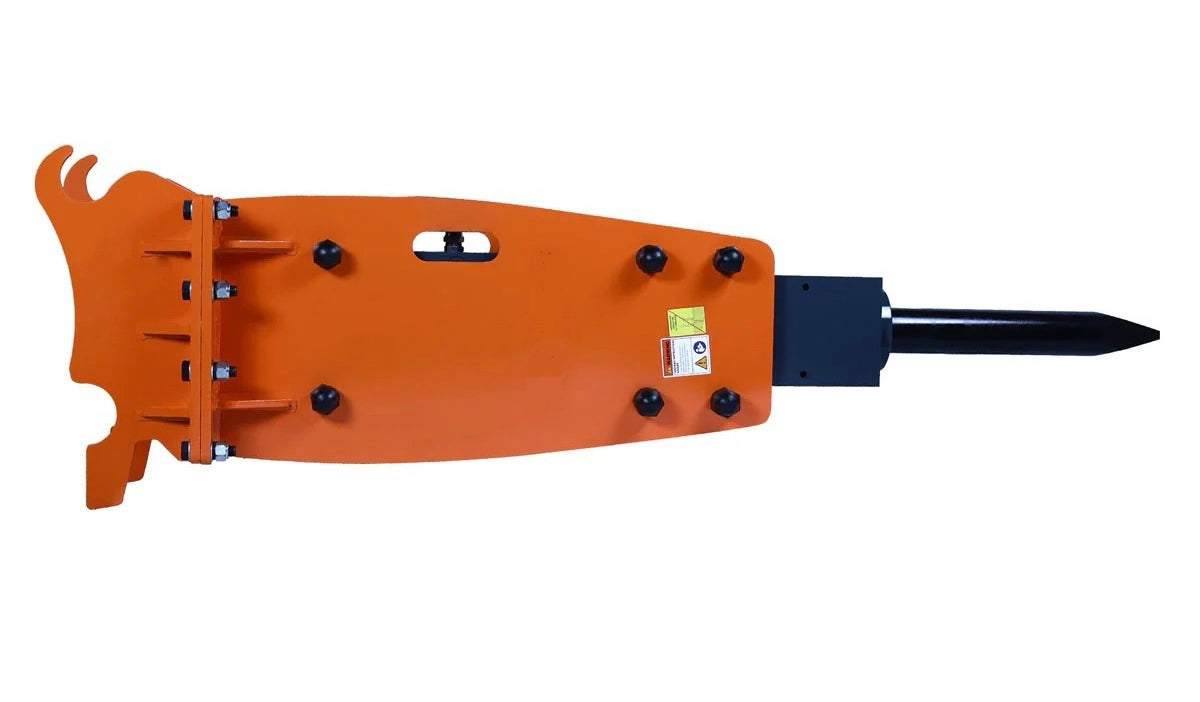

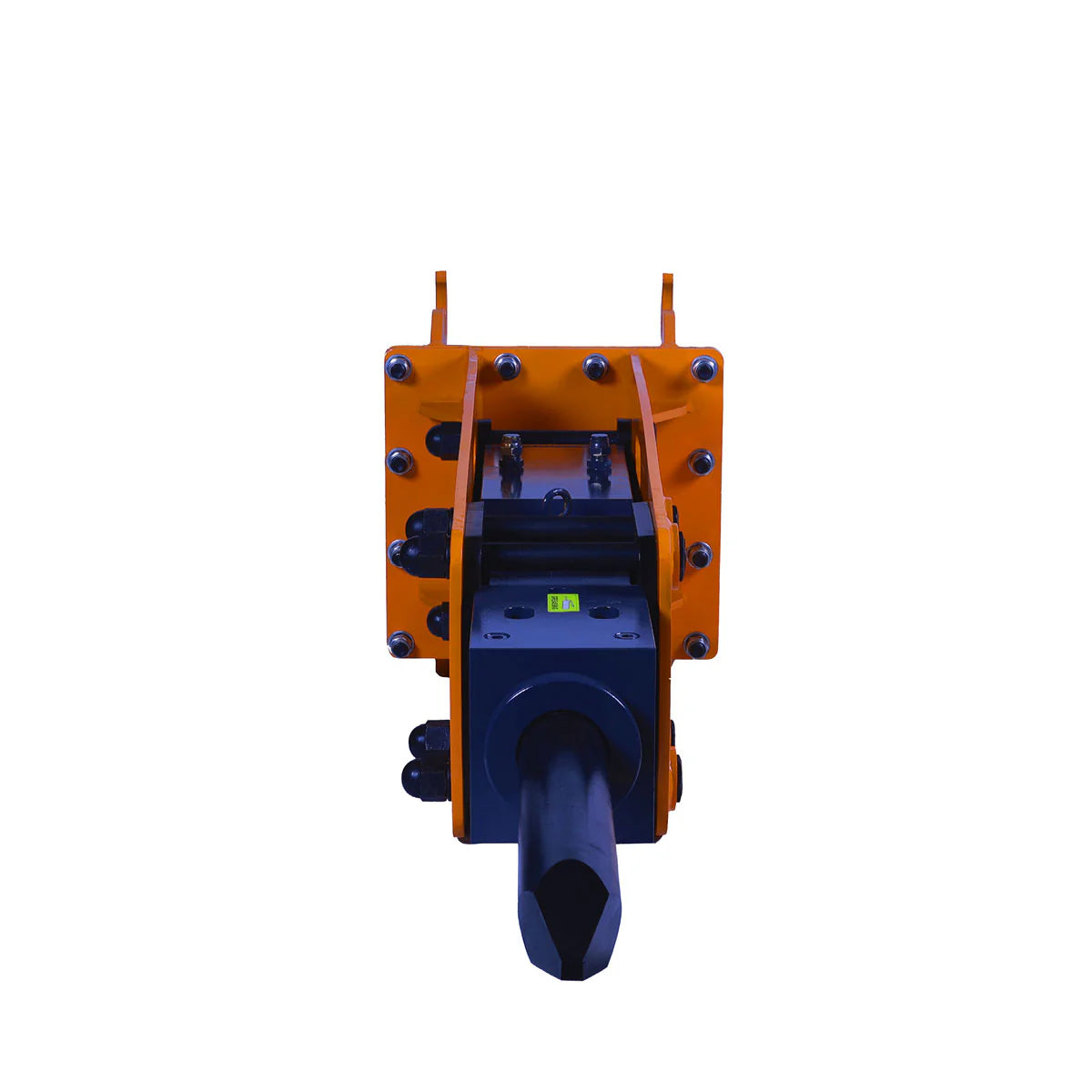

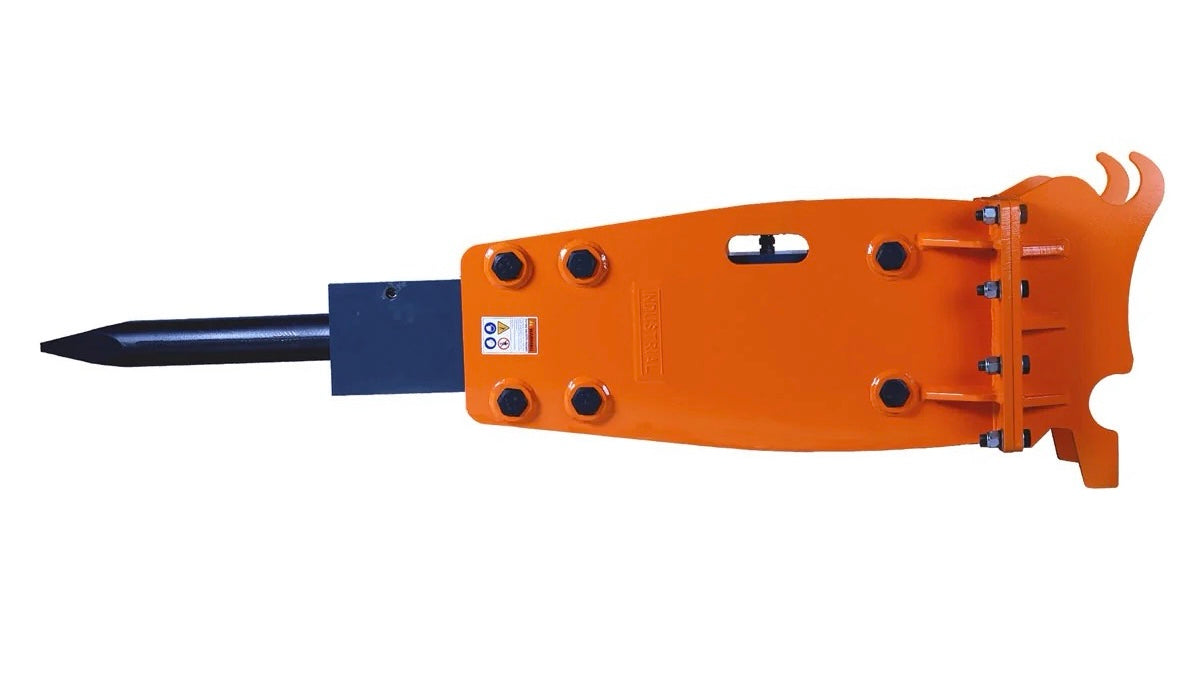

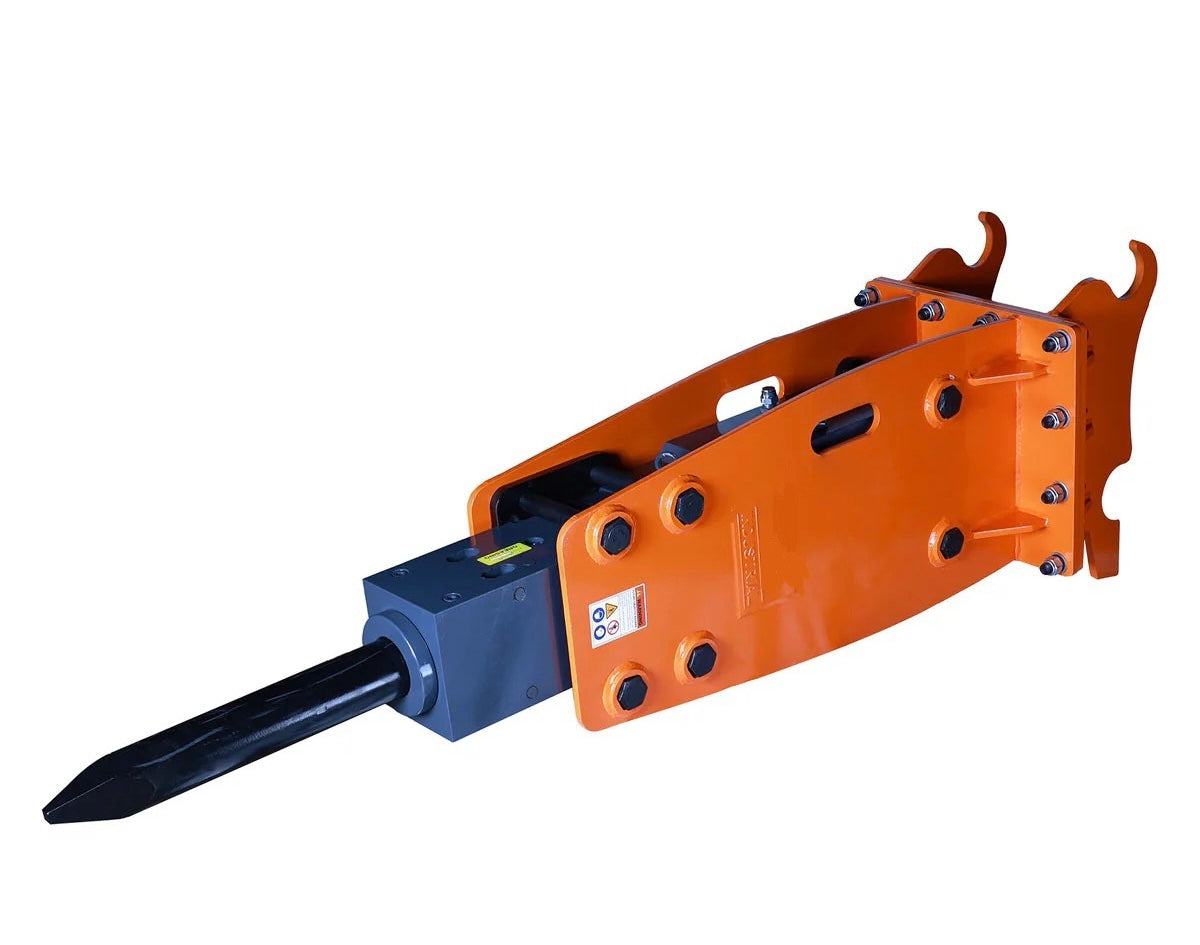

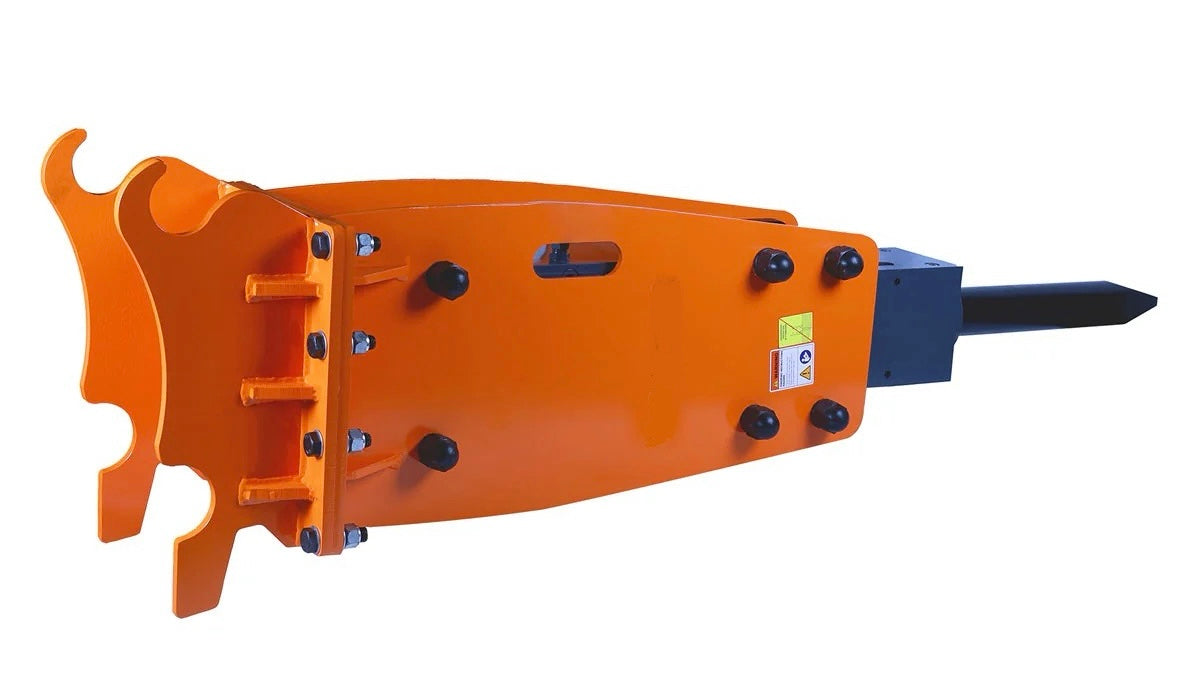

New 10 to 15 Ton Q/C Excavator Hydraulic Hammer Breaker, 4'' (100mm) Moil Point Chisel, 1960 Joules Impact Energy, 400-700BPM
New 10 to 15 Ton Q/C Excavator Hydraulic Hammer Breaker, 4'' (100mm) Moil Point Chisel, 1960 Joules Impact Energy, 400-700BPM
Regular price
$6,499.00 CAD
Regular price
Sale price
$6,499.00 CAD
Unit price
per
Plus Shipping and Tax
- Maximized power-to-weight ratio breaking strength
- The nitrogen-charged operation provides superior breaking efficiency
- Bottom tie rod bolted design offers easy maintenance

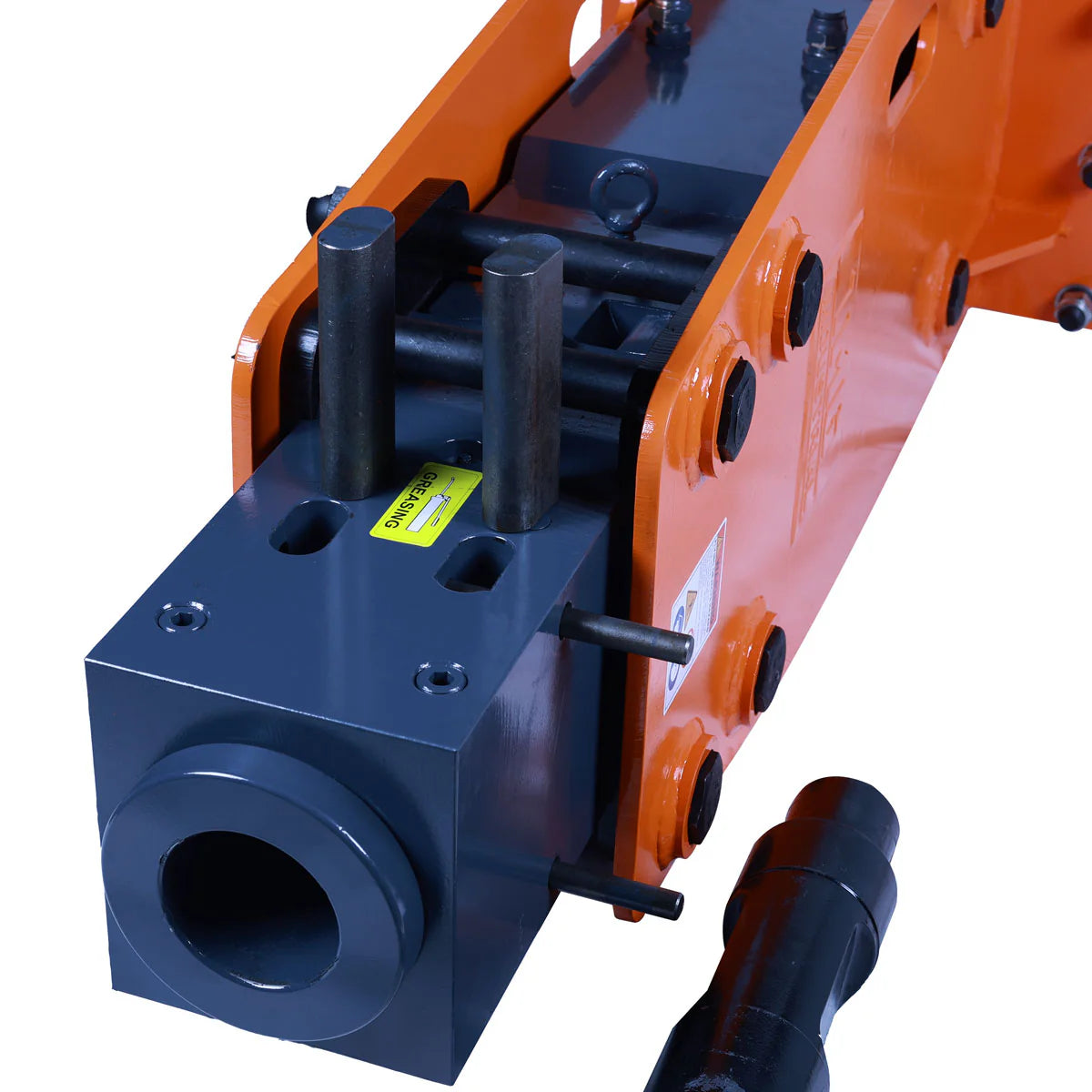

- Tool bushing for quick, easy replacement

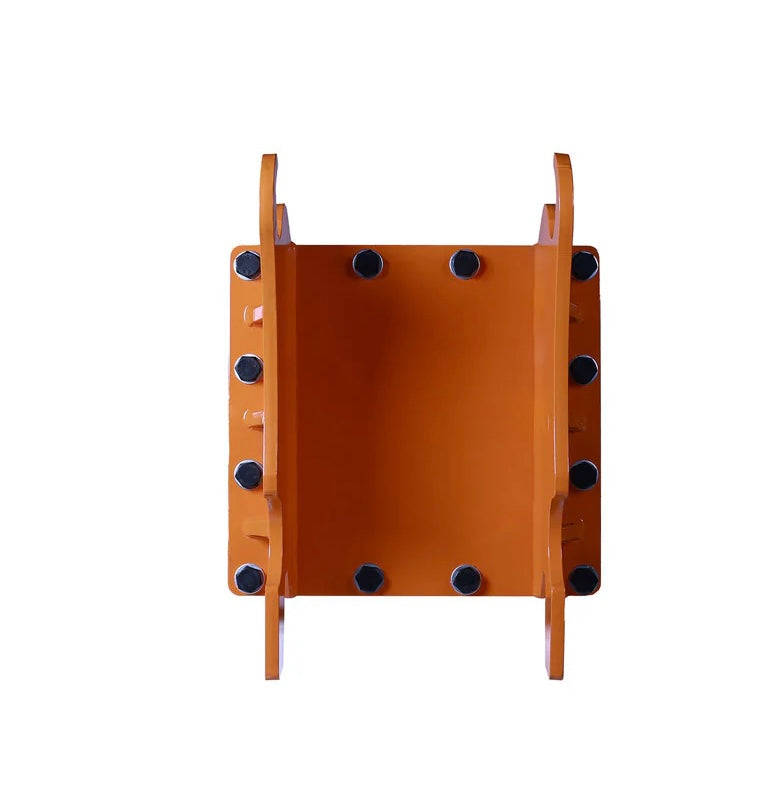

- Quick-change (Q/C) lugging profile
- Operating weight: 1600 lb
- Working pressure: 2200-2500 PSI
- Working flow: 21-32 GPM
- Impact rate: 400-700 BPM
- Impact energy: 1960 joules
- Chisel diameter: 4''
- Hydraulic hose diameter: 3/4”

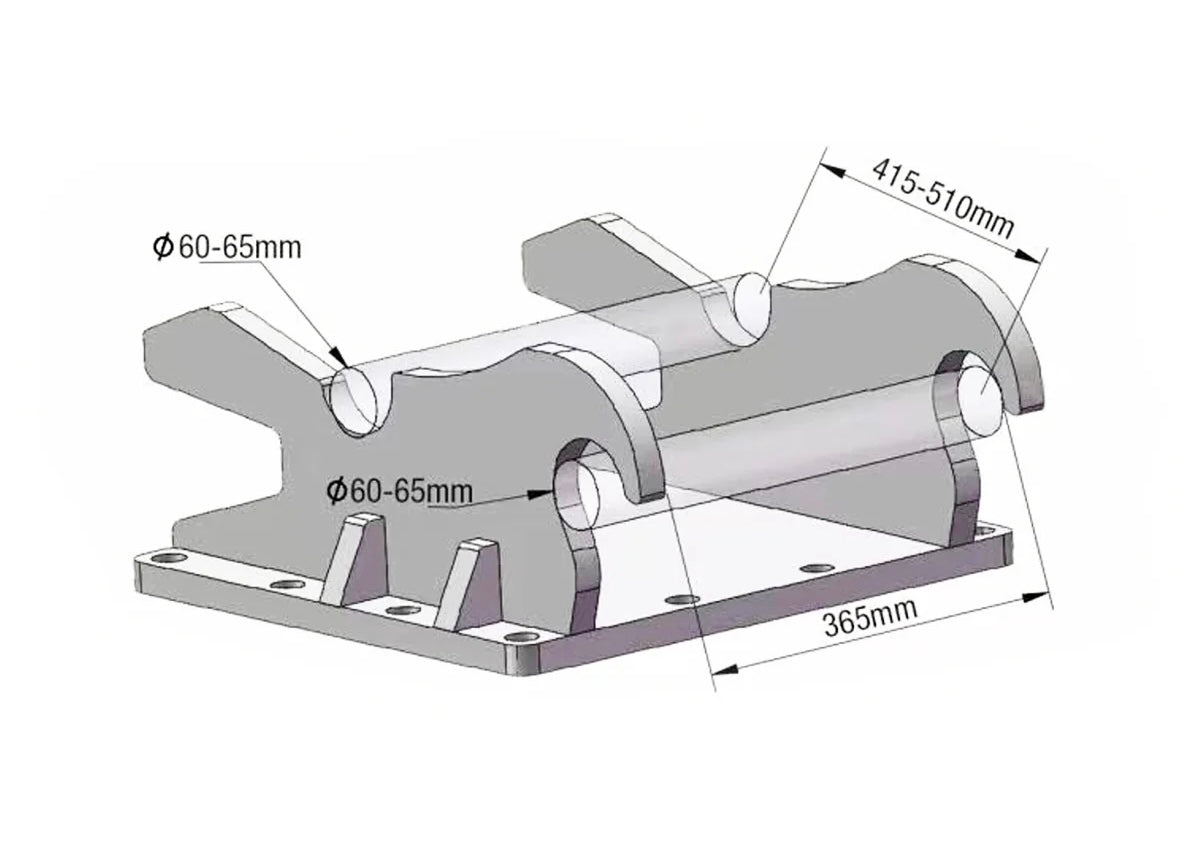

- Ear spacing - inside: 13.9''
- Ear spacing - outside: 15.9''
- Pin center to center: 18.3''
Includes:
- (1) 4'' (100mm) moil point chisel
- (2) 3/4” hydraulic hose with NPT fitting
- (1) nitrogen charge kit with CGA580 cylinder adaptor
- (1) service tool kit
- Packed in one metal shipping crate
- Shipping dimension: 73” x 29” x 27”
- Shipping weight: 1860 lb
-
