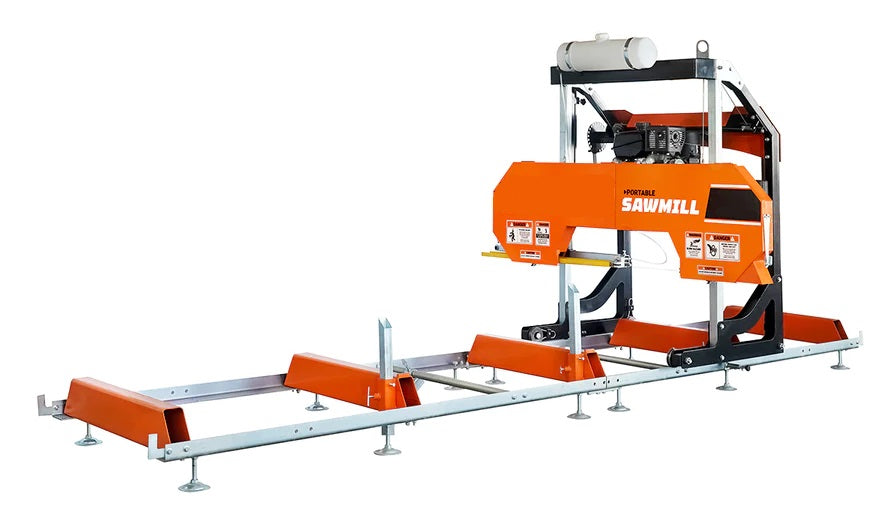

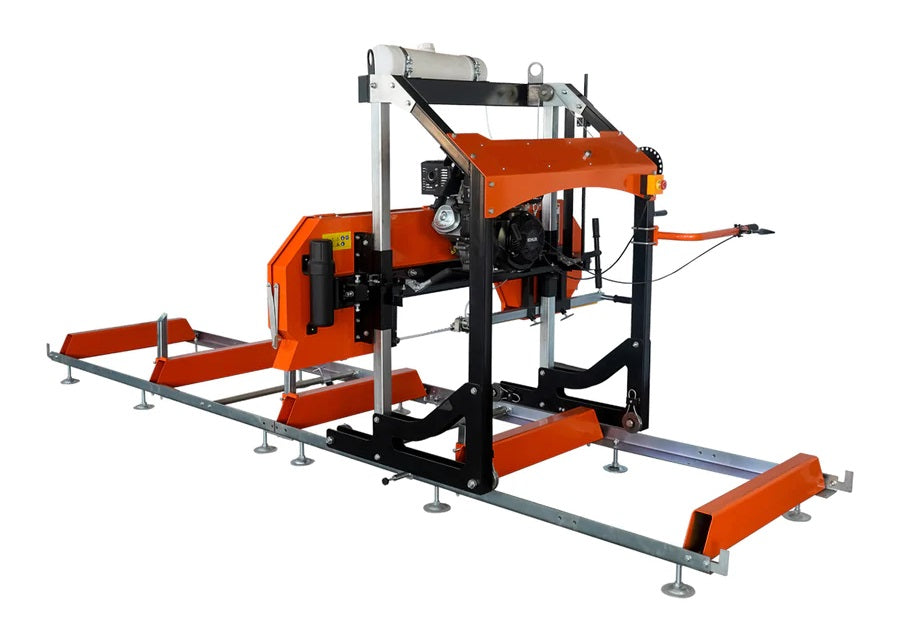

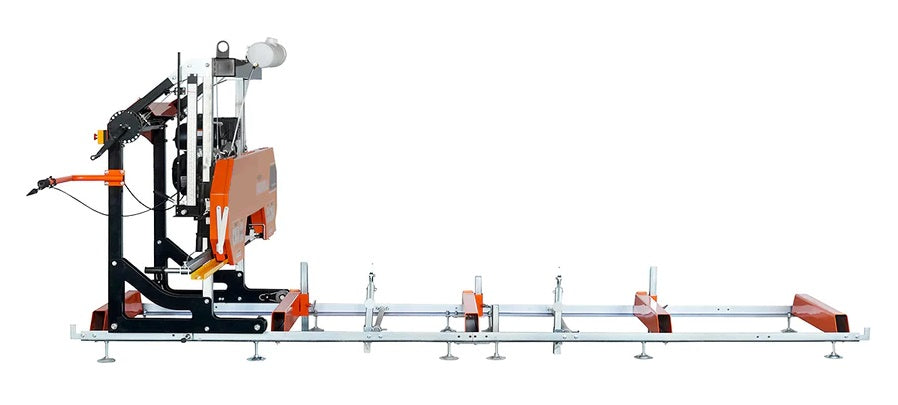

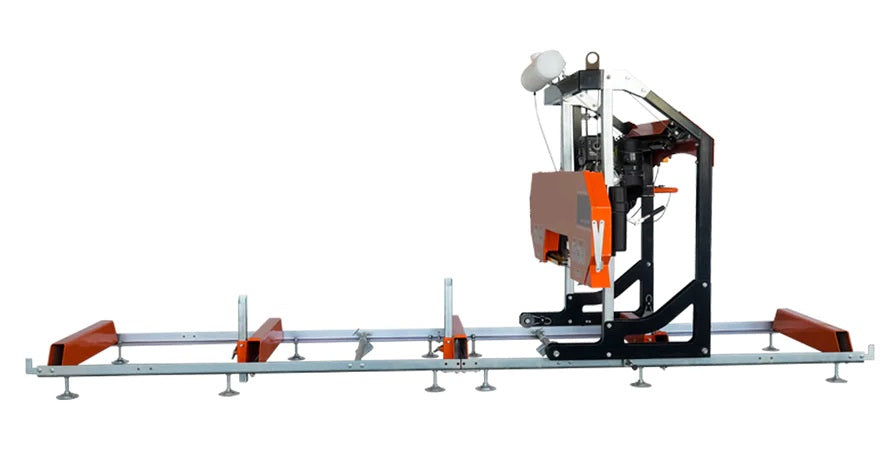

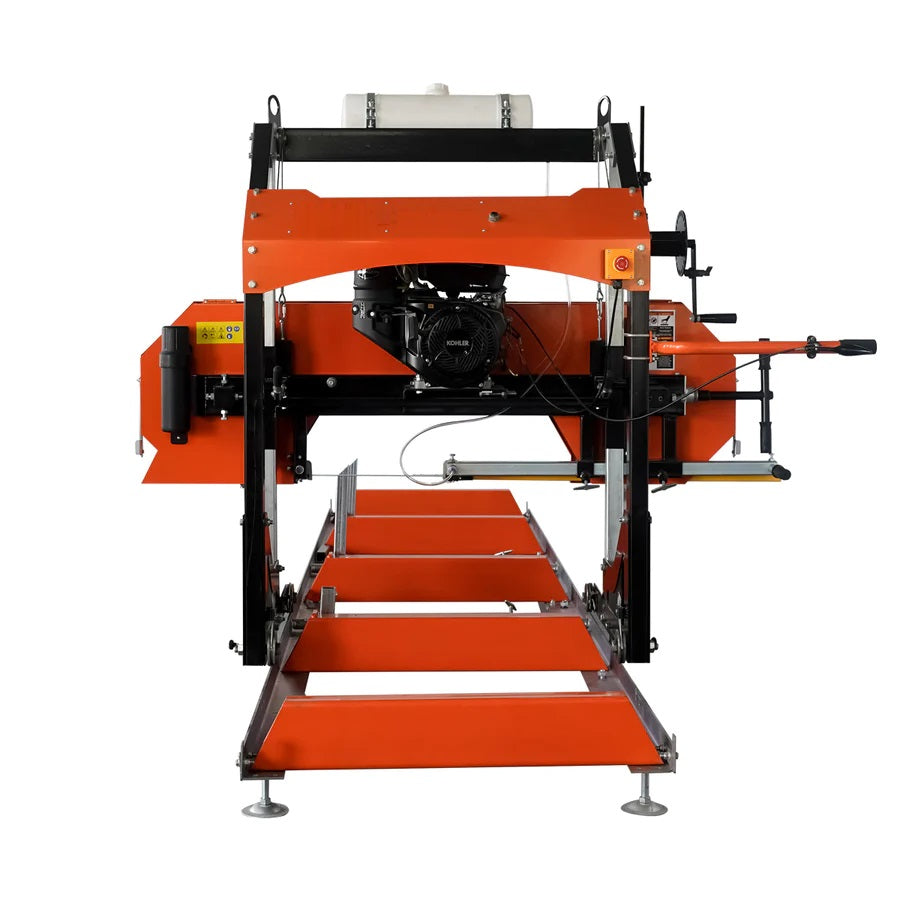

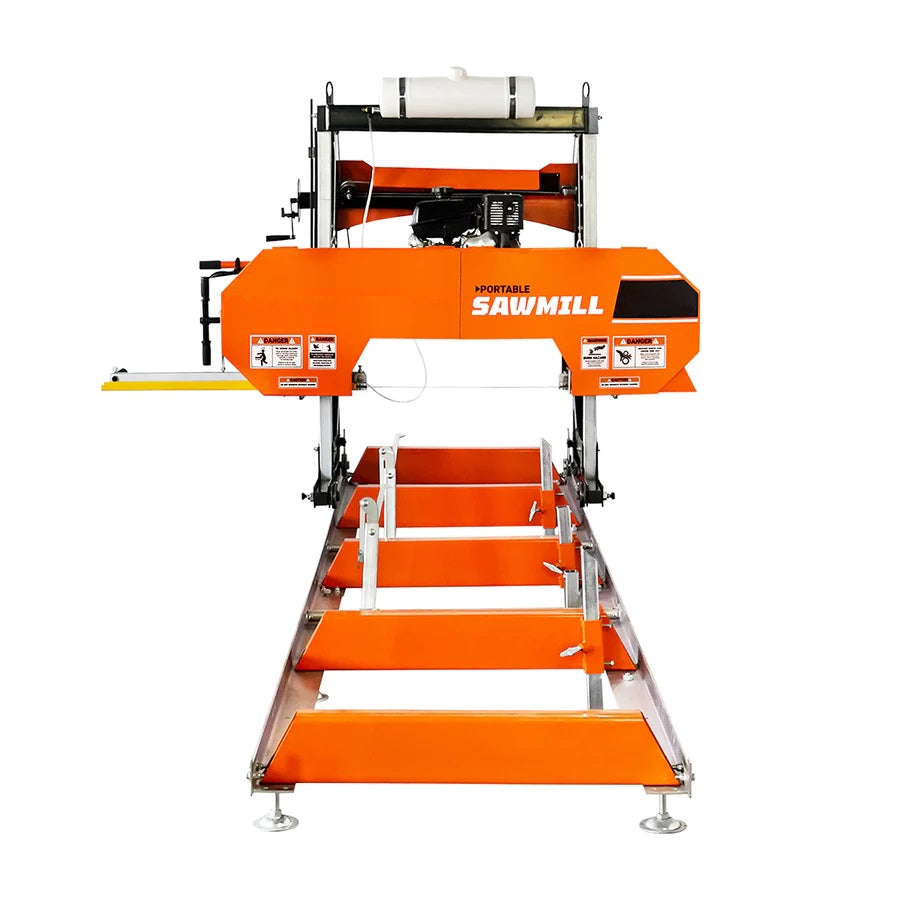

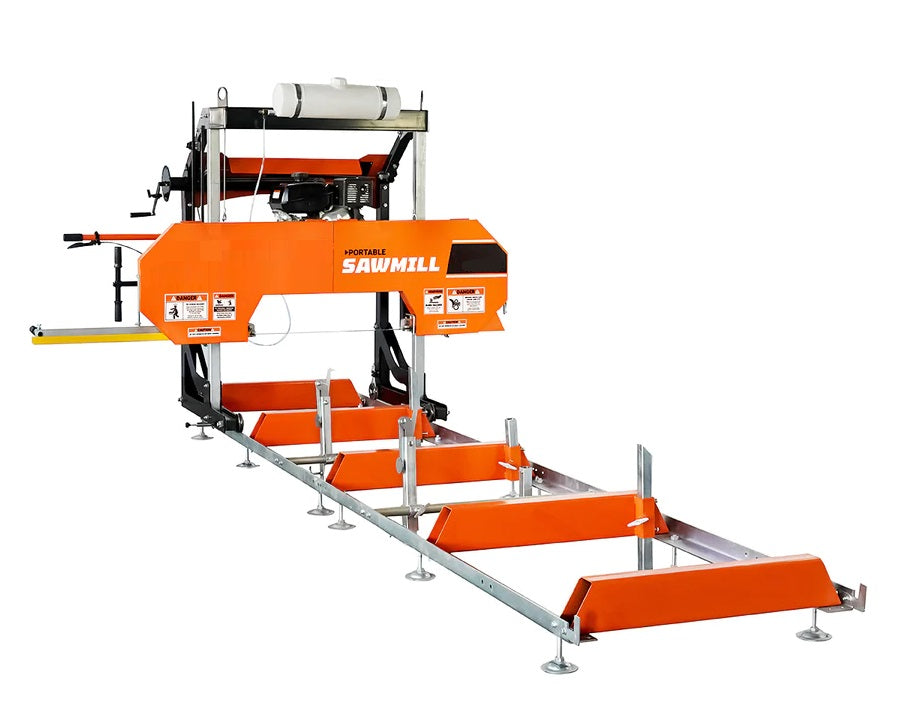

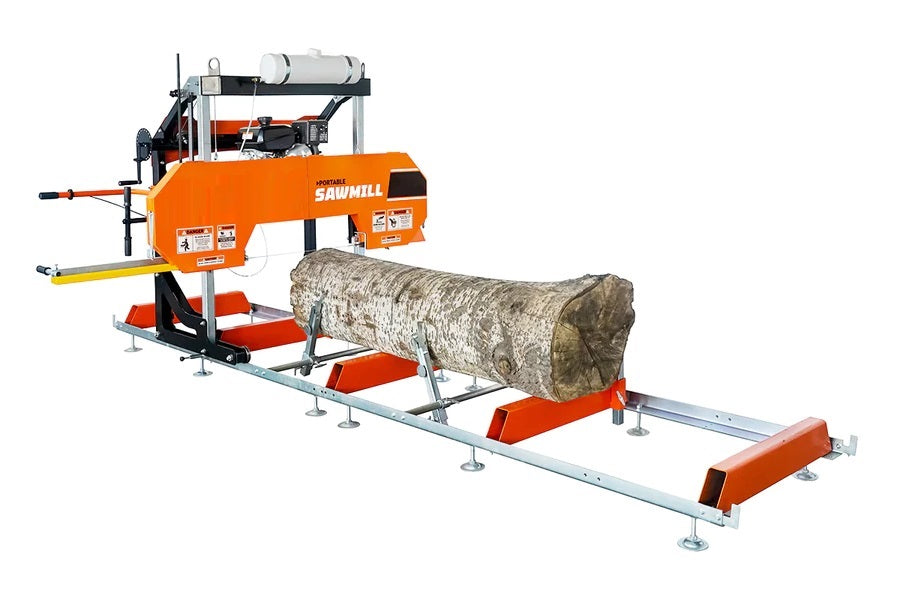

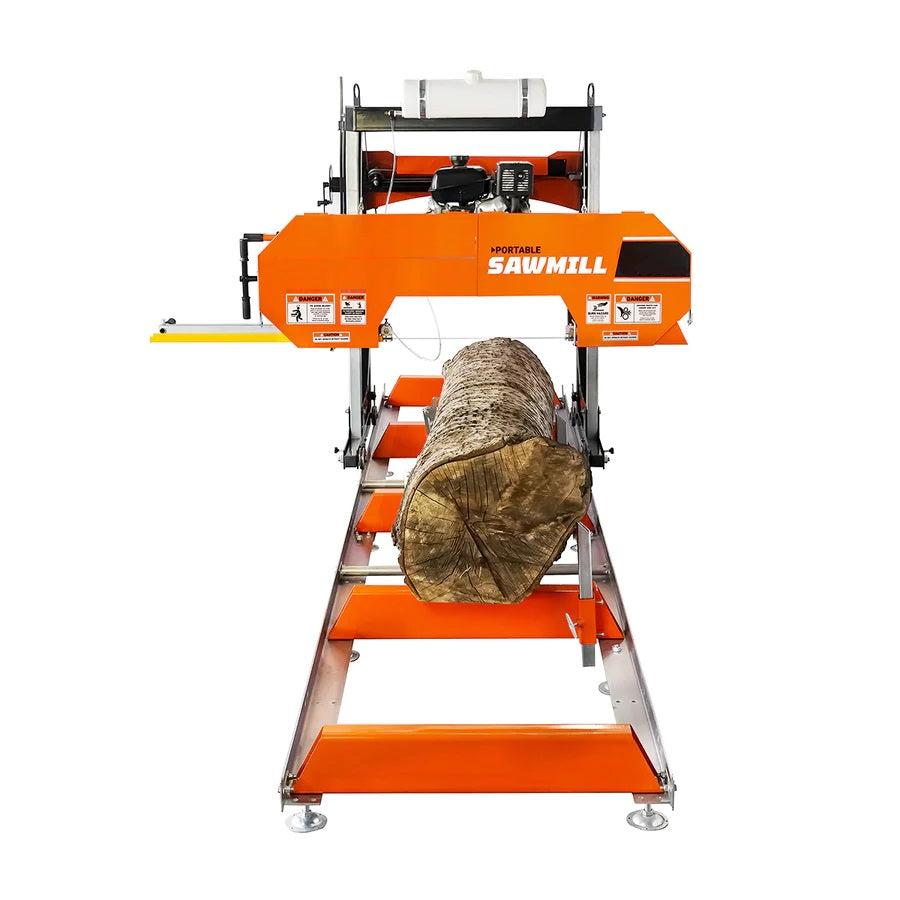

New 30" Portable Sawmill, 14 HP Kohler Engine, 28" Board Width, 12' Log Length, 14.5' Track Bed
New 30" Portable Sawmill, 14 HP Kohler Engine, 28" Board Width, 12' Log Length, 14.5' Track Bed
Regular price
$5,799.00 CAD
Regular price
Sale price
$5,799.00 CAD
Unit price
per
Plus Shipping and Tax
- Powered by a 14 HP Kohler CH440 Command Pro Series engine which is widely known for its durability, strength, lifespan and reliability
- Belt driven transmission with clutch for superior power transfer between engine and machine, creates efficiency and allows for a smoother operation overall
- Built with heavy-gauge, solid 4-post carriage design that is strong and will stand up to heavy jobs and long hours even in remote locations
- Easy saw head hand-crank lifting mechanism that sits at waist height for effortless adjustability without bending over or being in awkward positions
- Permanent sealed SKF bearings that help avoid vibrational wear and tear, increasing the machines accuracy, performance output and longevity over time
- Two adjustable log clamps to avoid any movement or defects while cutting, will help to give you a clean final product every time
- Ability to precisely adjust the cut thickness of each log so you can mill the lumber to be whatever dimensions will fit your project
- Manual feed saw head with forward and reverse movement gives the user total control cover the cutting process for maximum safety and desired outcome
- Creates a self-sustainable lumber solution for someone who has access to a lot of wood or lives in a heavily forested area; no more trips to the hardware store
- Additional 6' track extension kit is available to bring the total cutting capacity up to 18'
- Max. log diameter: 30"
- Max. board width: 21-/2”
- Max. cut thickness: 7"
- Max. log length: 12’
- Track bed length: 14-1/2’
Saw blade system:
- Blade wheel diameter: 19"
- Blade wheel engagement: belt drive
- Blade guide: By roller
- Blade tension: By adjustable lever
- Blade lubrication: 10-litre water tank
- Blade specifications:
- Blade length: 158” (4013mm)
- Blade width: 1.24”-1.34” (31.5-34 mm)
- Blade kerf: 0.035”-0.43” (0.9-1.1 mm)
Engine:
- 14HP Kohler CH440 Command Pro series engine
- Displacement: 429 CC
- Start type: Recoil
- Cast-iron cylinder liners
- Oil Sentry automatic shutdown
- The product is packed in a wood crate shipping box
- Shipping dimension: 90” x 26” x 34”
- Shipping weight: 960 lb
- Shipping from Langley BC
-
