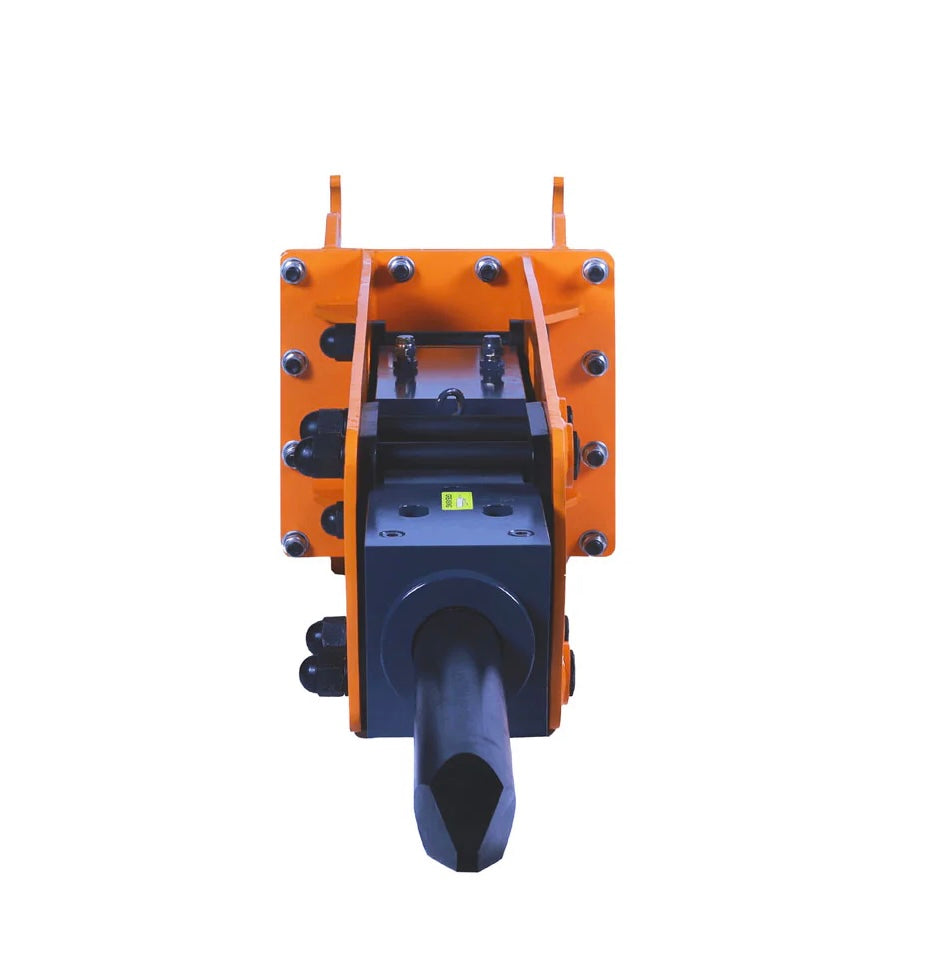

• Versatile industry applications in construction, cleanup, demolition, mining, oil and gas, logging, mining, tunneling and other quarry operations
• 600 J of impact energy delivered at a rapid 500-900 BPM collision rate, perfect for light to medium sized projects
• Compatible with 4 to 7 ton excavators and backhoes with a simple quick-change lugging profile for easy attachment and release
• Maximized power to weight ratio and nitrogen-charged operation provides superior break force efficiency and long-lasting work capacity
• Bottom tie rod bolted design offers easy maintenance and overall heavy-duty, 550 lb construction offers dependable, high-level performance
• Included ½” hydraulic hoses that have a working flow rate of 9.5-16 GPM and deliver hammer force pressure at 1600-2500PSI
• Sleek, compact design that delivers tremendous output while minimizing vibration, noise, and wear on your excavator or backhoe

• Operating weight: 550 lb
• Working pressure: 1600-2500 PSI
• Working flow: 9.5-16 GPM
• Impact rate: 500-900 BPM
• Impact energy: 600 J
• Chisel diameter: 2-¾”
• Hydraulic hose diameter: ½”

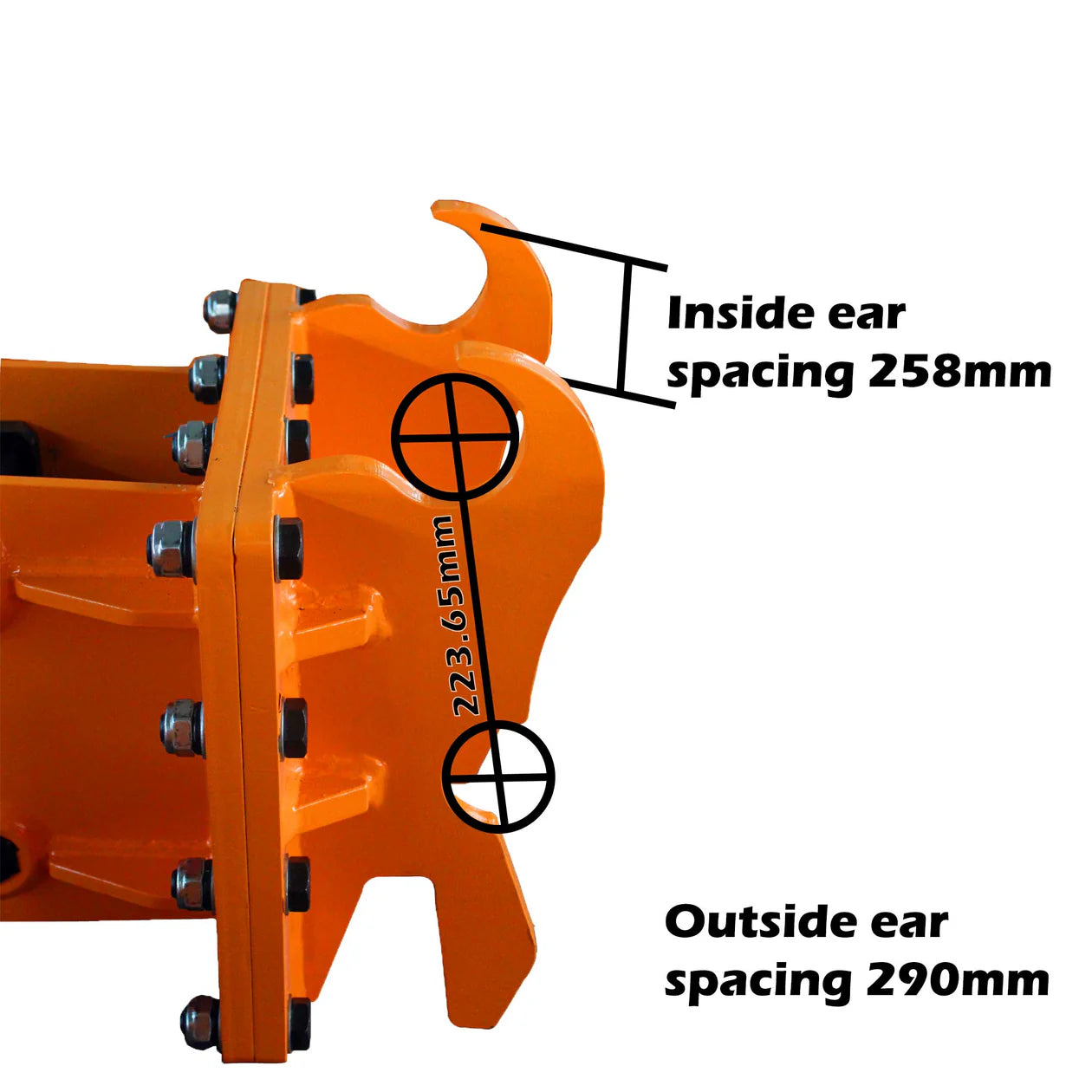

• Ear spacing - inside: 10-¼”
• Ear spacing - outside: 11-½”

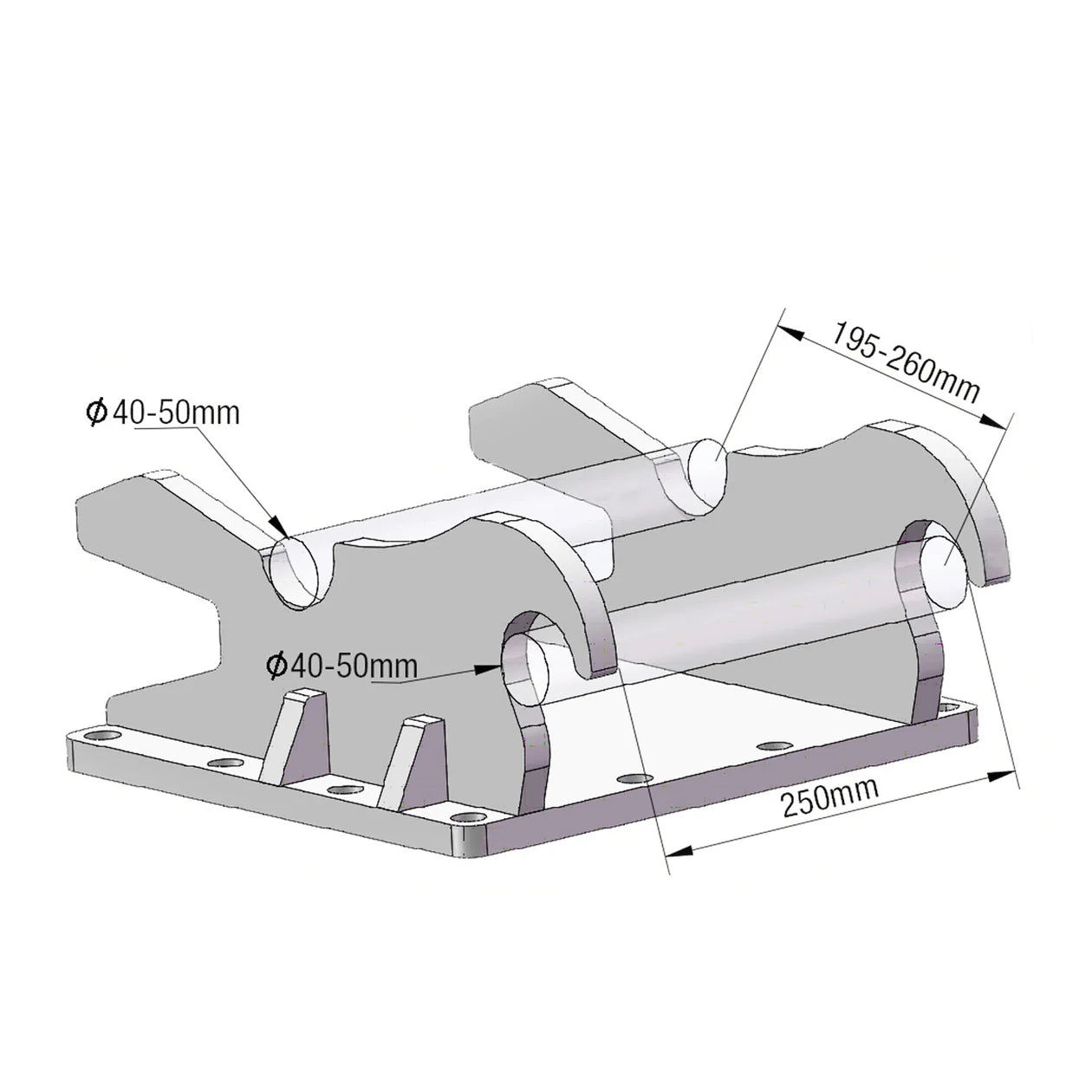

• Pin center to center: 9”
• Quick-change lugging profile design

Includes:

• (1) 2-¾” Moil point chisel
• (2) ½” Hydraulic hose with NPT fitting
• (1) Nitrogen charge kit with CGA580 cylinder adaptor
• (1) Service tool kit

Shipping Information

• Shipping dimension: 49” x 23” x 26” (L x W x H)
• Shipping weight: 720 lb
