Richard’s Attachments

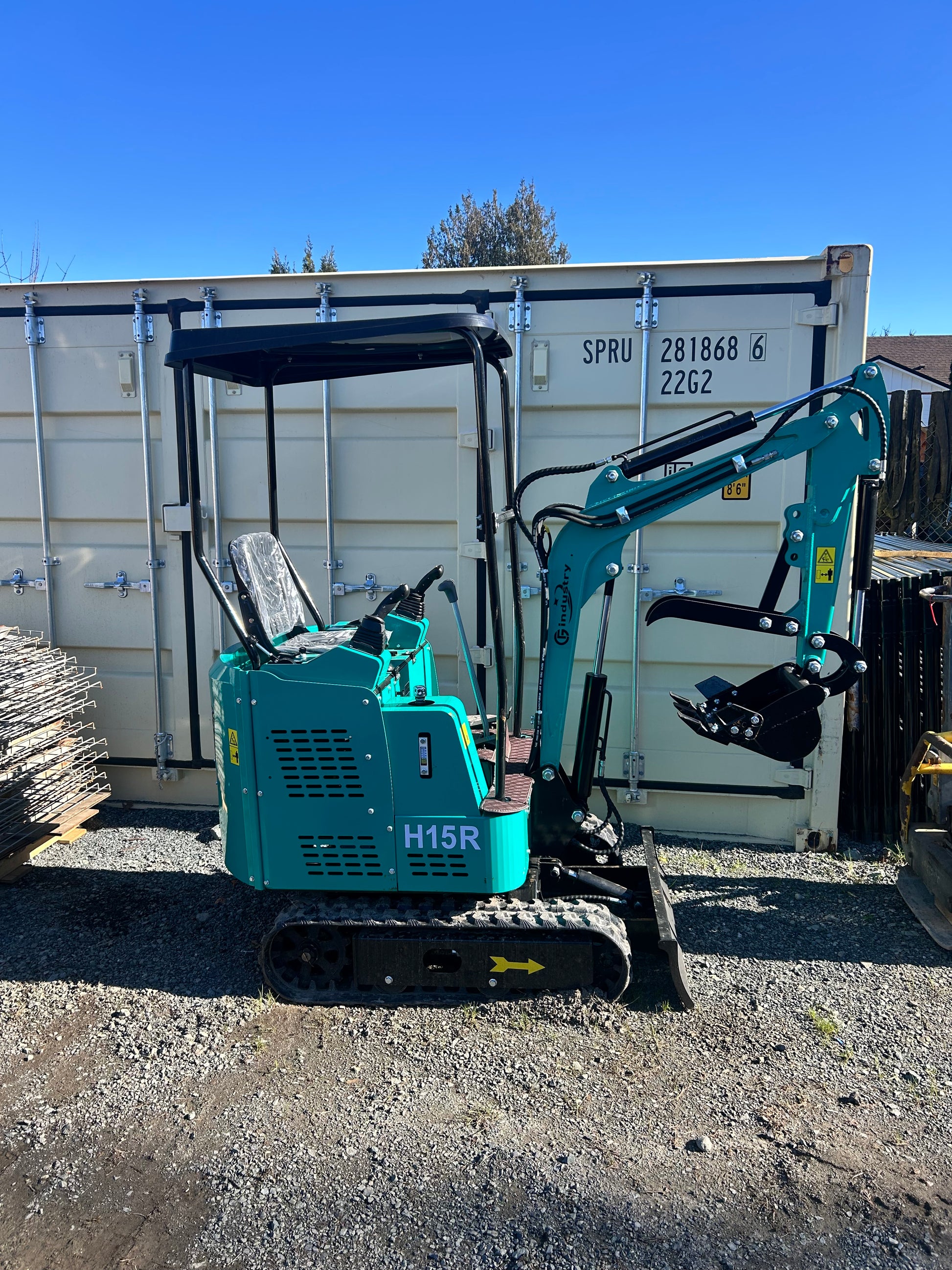

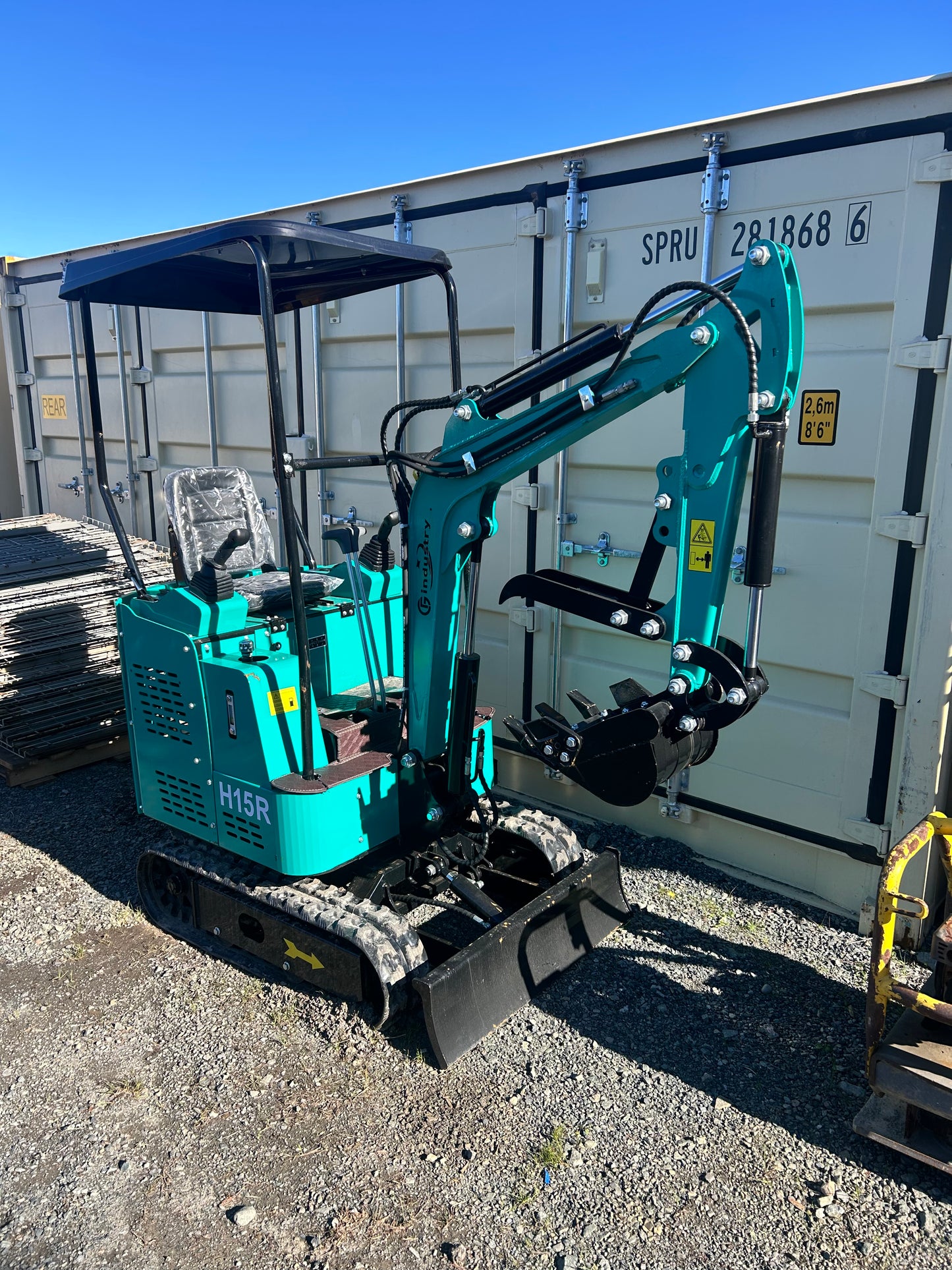

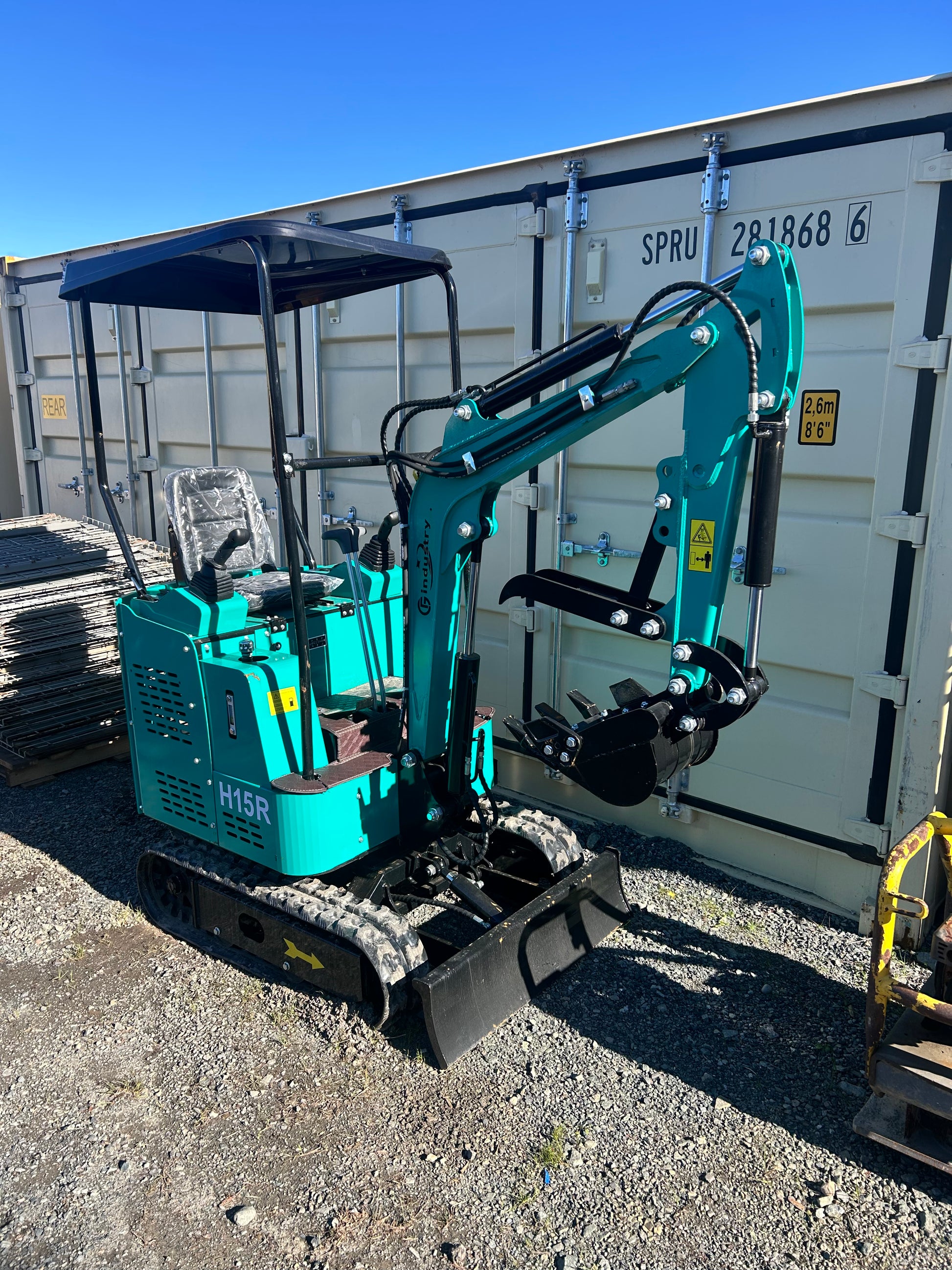

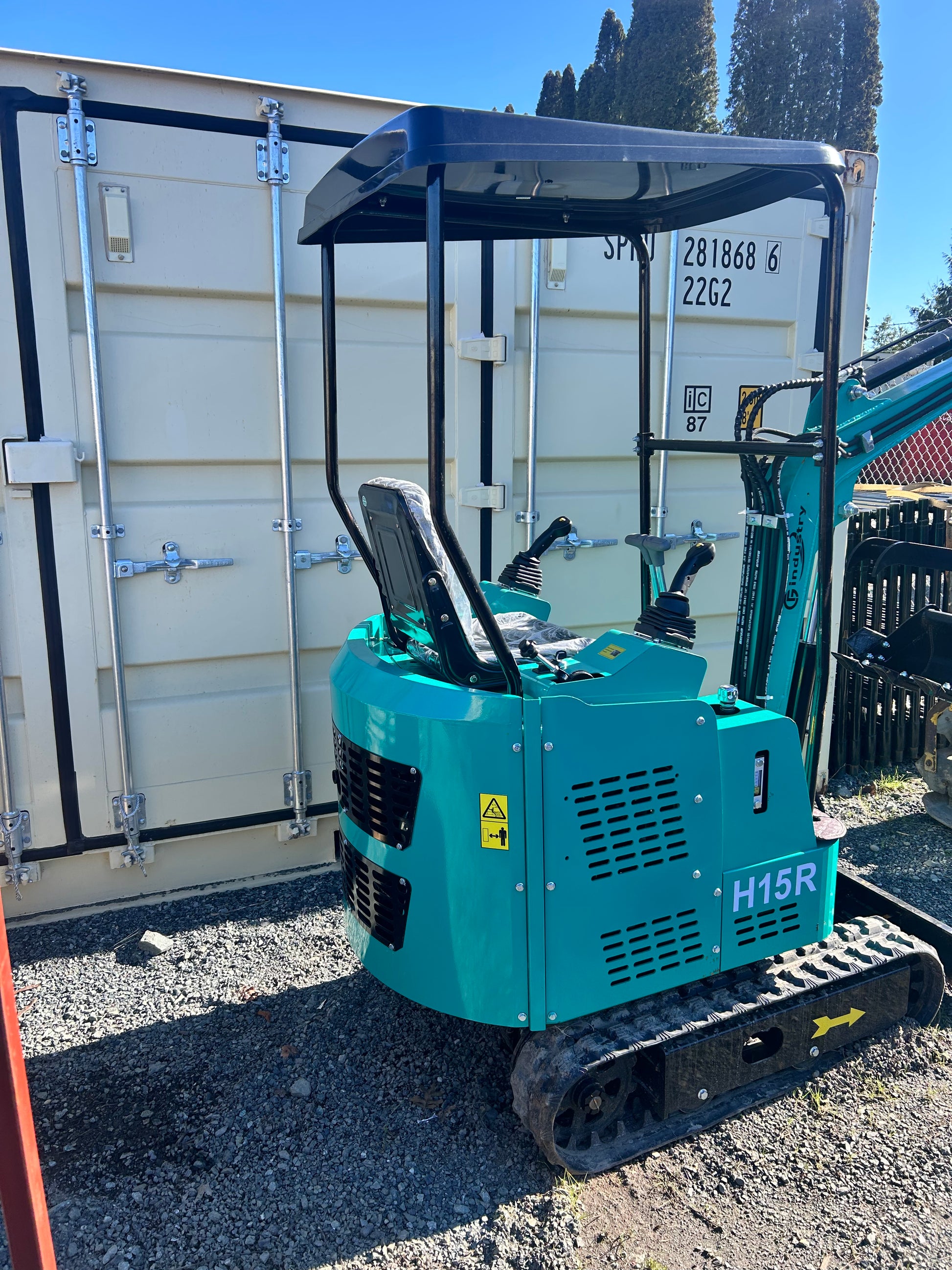

$6200 New H15R Mini Excavator 15 HP Gas

$6200 New H15R Mini Excavator 15 HP Gas

Regular price $6,200.00 CAD
Regular price $8,500.00 CAD Sale price $6,200.00 CAD
Sale Sold out
Place Order / Contact Us

Price Includes Shipping to any Manitoulin Transport Terminal in BC, AB, SK, MB, ON

We can arrange shipping Canada Wide

The H15R Mini Excavator is perfect for small to medium-sized projects, offering a compact 1-ton design and a maximum digging depth of 5.41 feet. Ideal for tight spaces like gardens, parks, and orchards, it combines maneuverability with enhanced safety features, including internal hydraulic hoses and rear-opening compartments for easy maintenance.

Dimension

  • Operating Weight: 1 Tons (2,200 lbs)
  • Overall Length: 2,140 mm (84 in)
  • Overall Width: 1,000 mm (40 in)
  • Overall Height: 2,190 mm (86 in)
  • Track Width: 180*72*37 (Width*Pitch Length*Links)

Working Range

  • Max Digging Depth: 1,650 mm (65 in)
  • Max Digging Height: 2,610 mm (102.5 in)
  • Max Dumping Height: 1,850 mm (73 in)
  • Max Reach at Ground: 2,815 mm (111 in)
  • Blade Width: 950 mm (37 in)
  • Blade Height: 220 mm (8.5 in)
  • Blade Max Lifting Height: 295 mm (11.5 in)
  • Blade Max Drop Depth: 270 mm (10.5 in)

Engine

  • Engine Brand: Rato
  • Fuel Type: Gasoline
  • Model: R420D
  • Rated Power: 15 HP
  • Displacement: 420 cc
  • Fuel Capacity: 6.6 L (1.7 gal)
  • Fuel Consumption: 0.5-1.1 L/hr
  • Hydraulic Flow Rate: 45 L/min (4.2 GPM)
  • Hydraulic Pressure: 18 MPa (2,320 PSI)
  • Hydraulic Tank Capacity: 18 L (4.7 gal)

Features

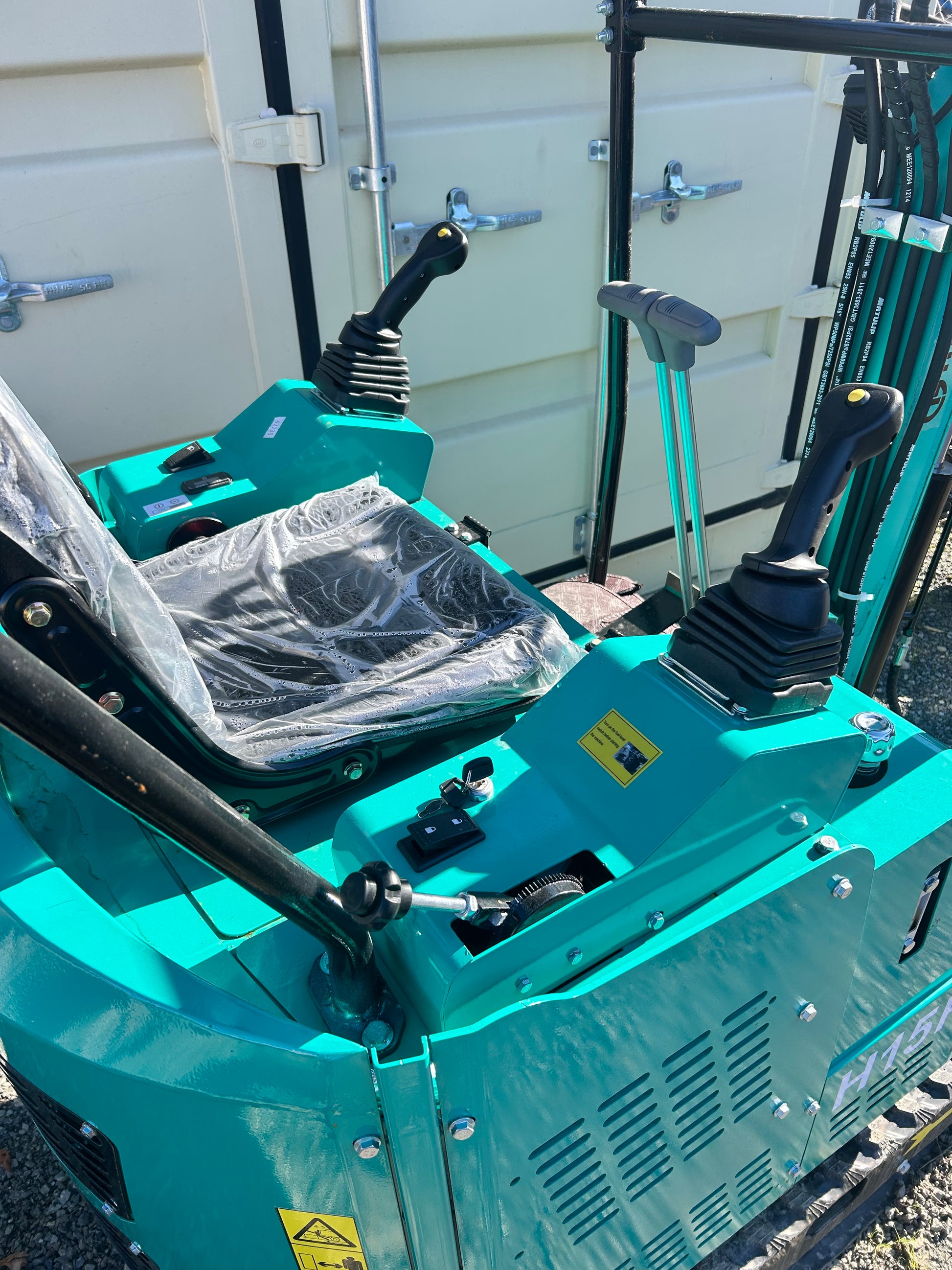

  • Pilot Control
  • LED Light



Place Order / Contact Us View full details
