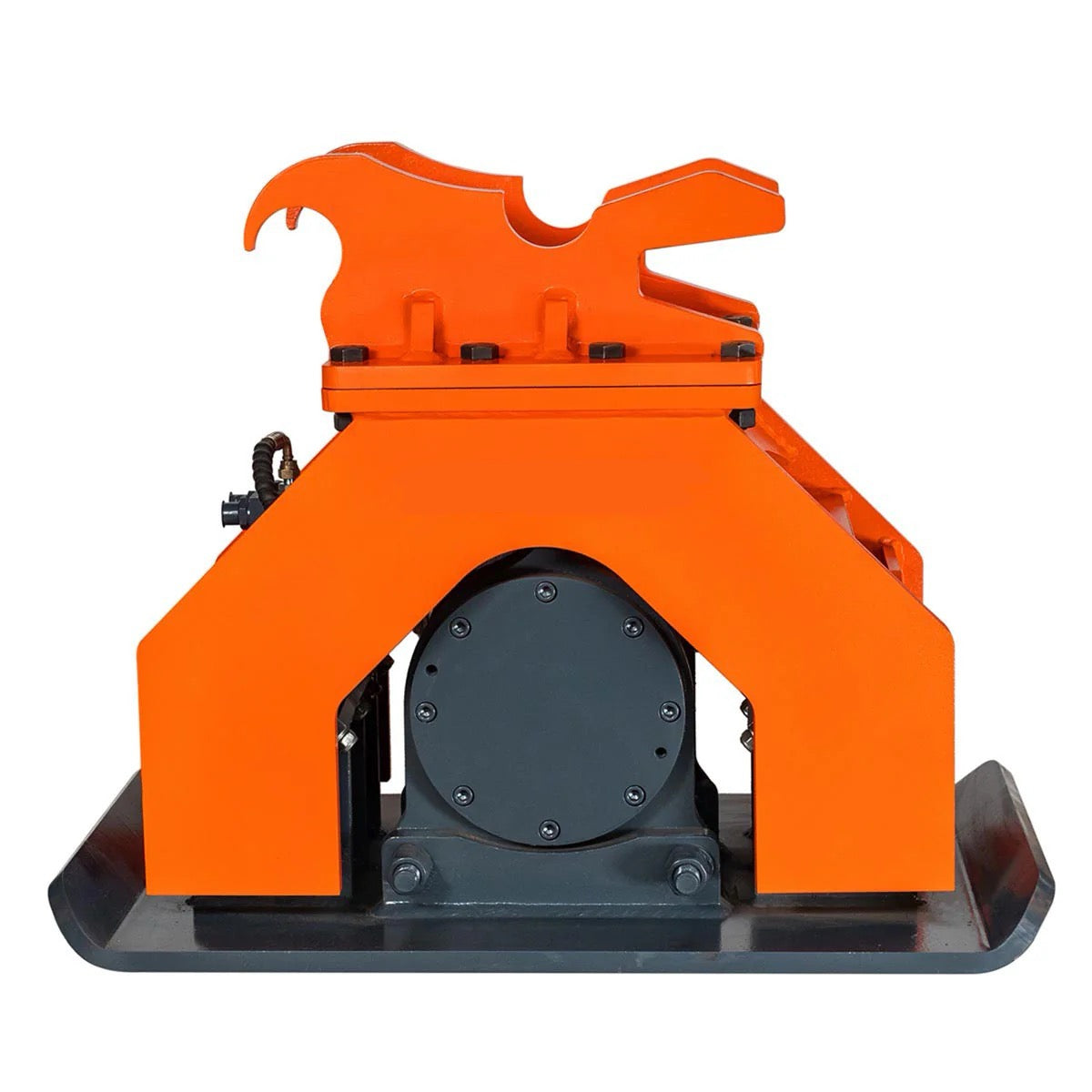

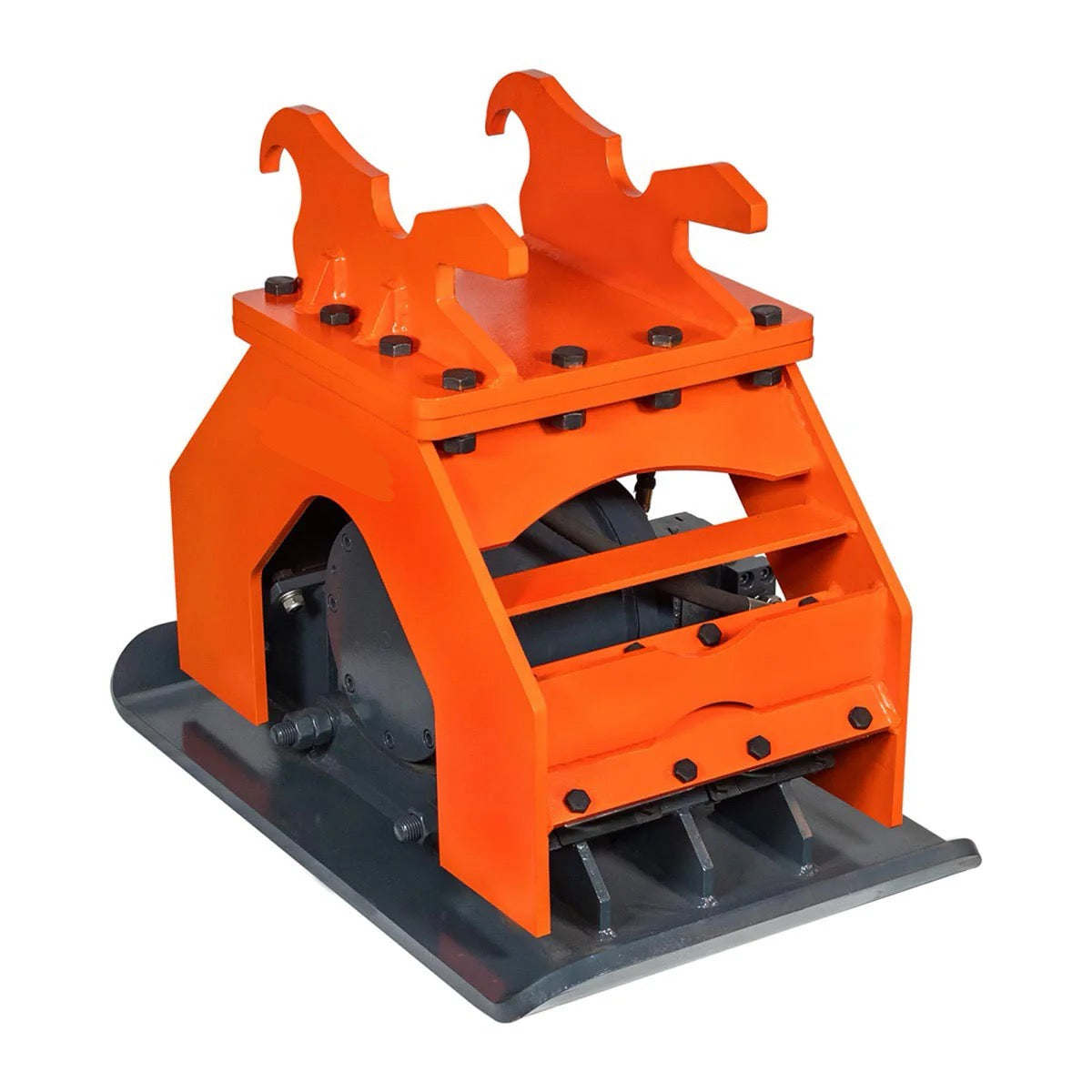

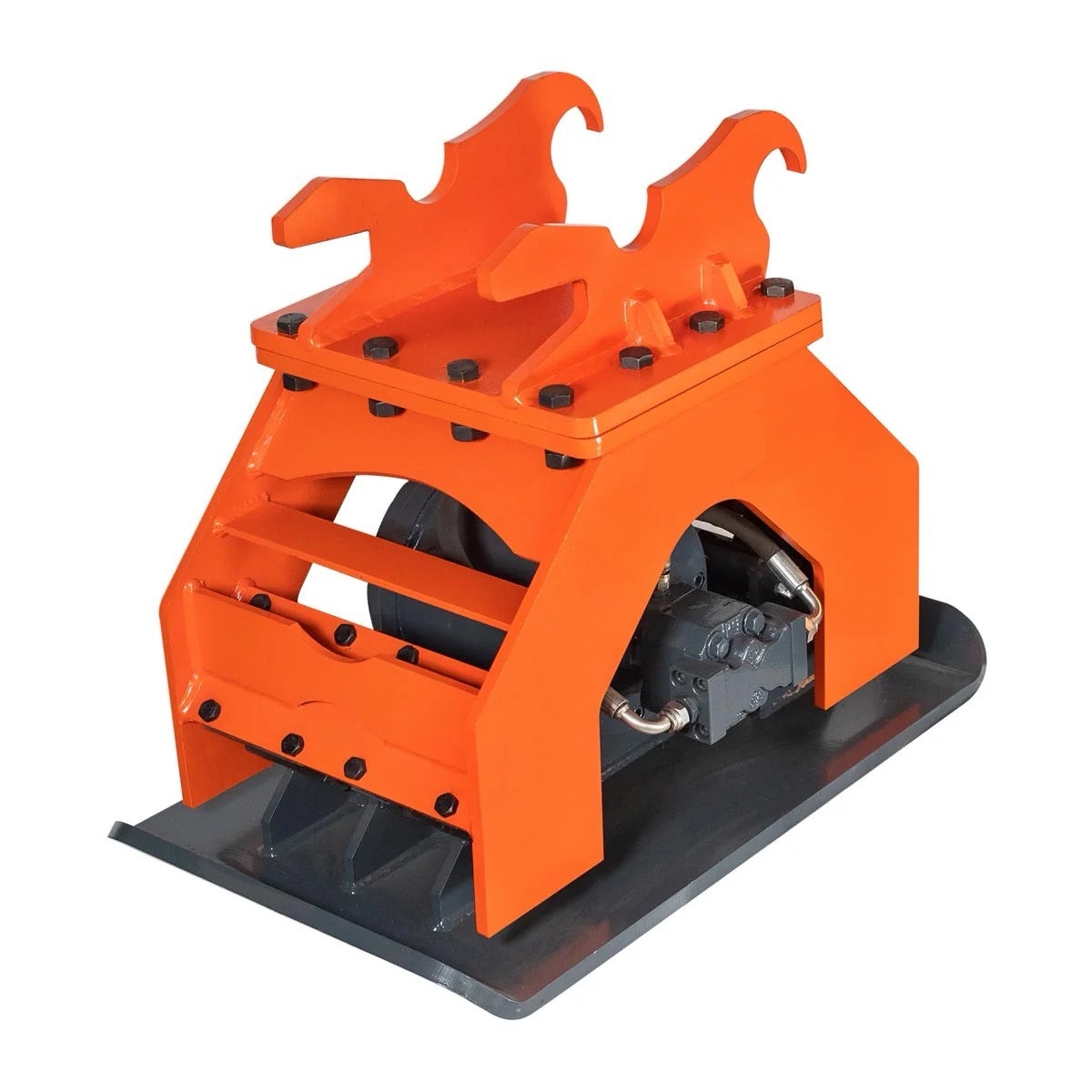

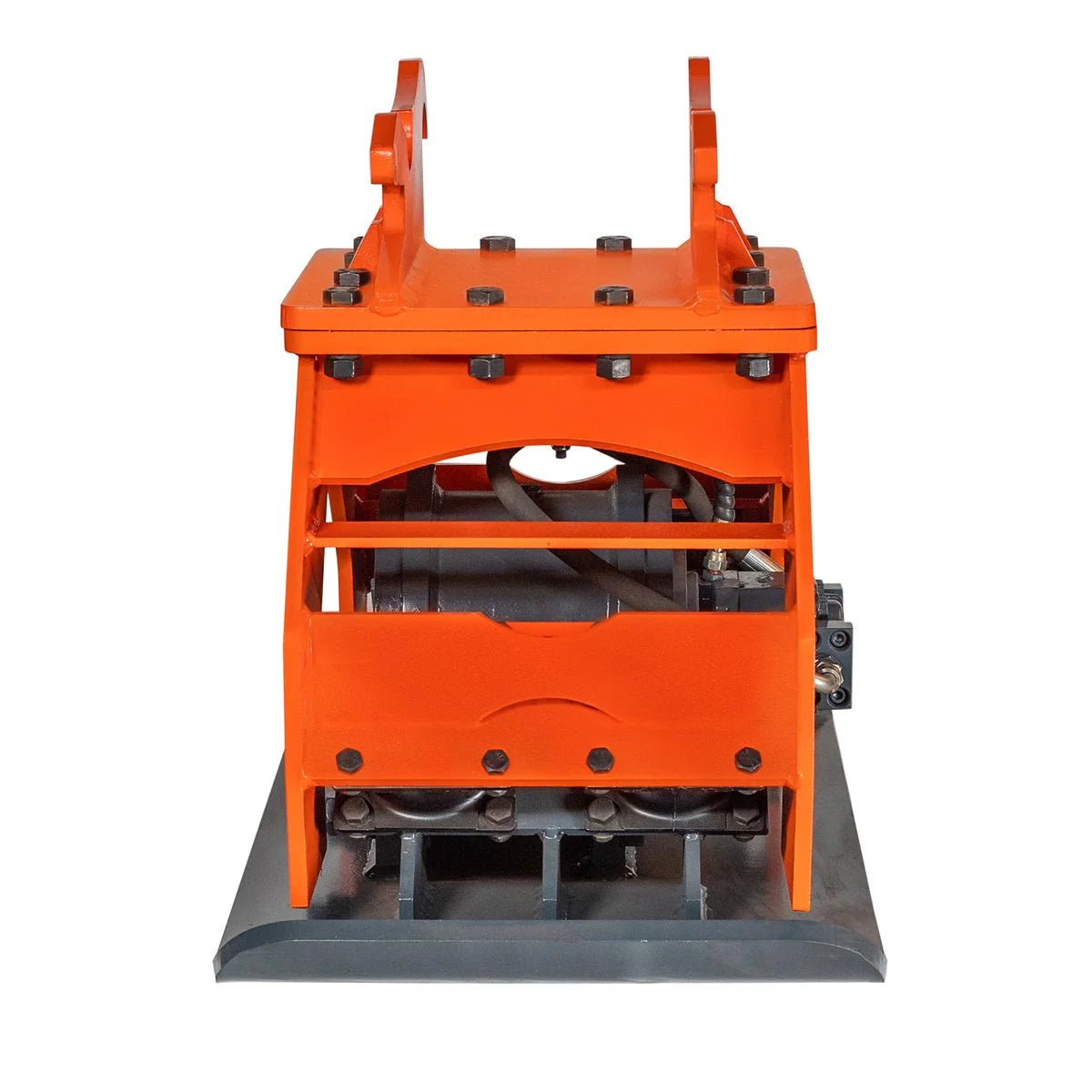

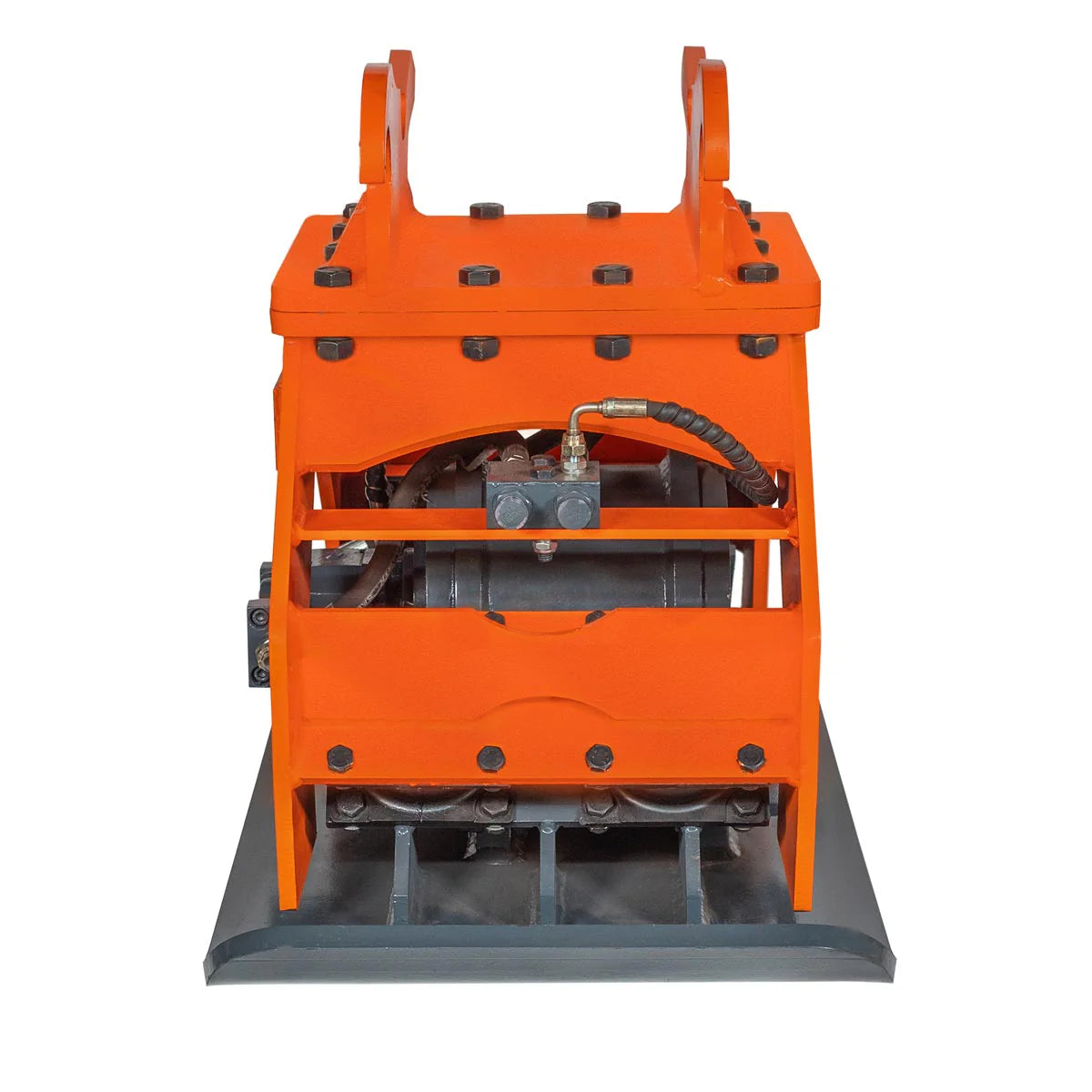

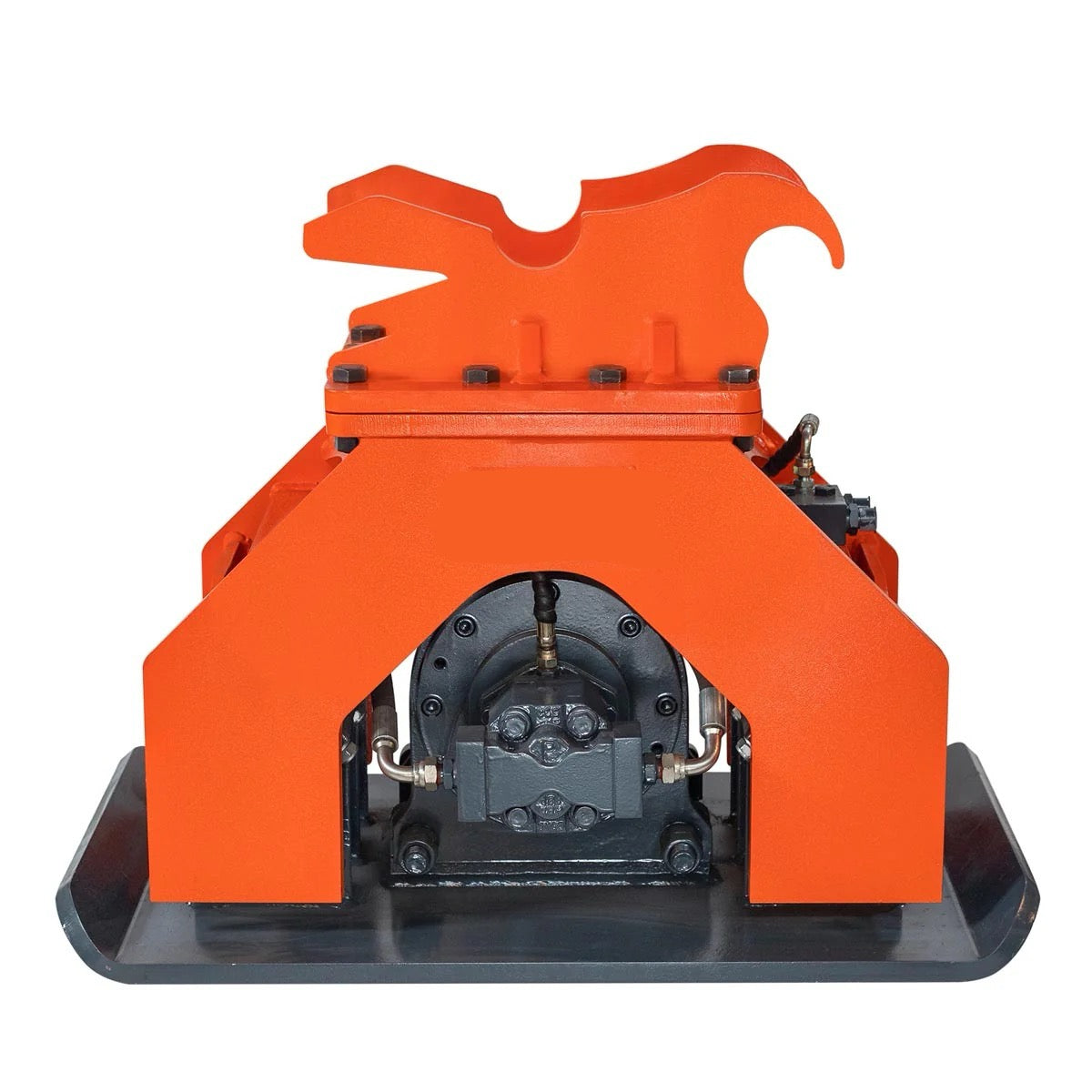

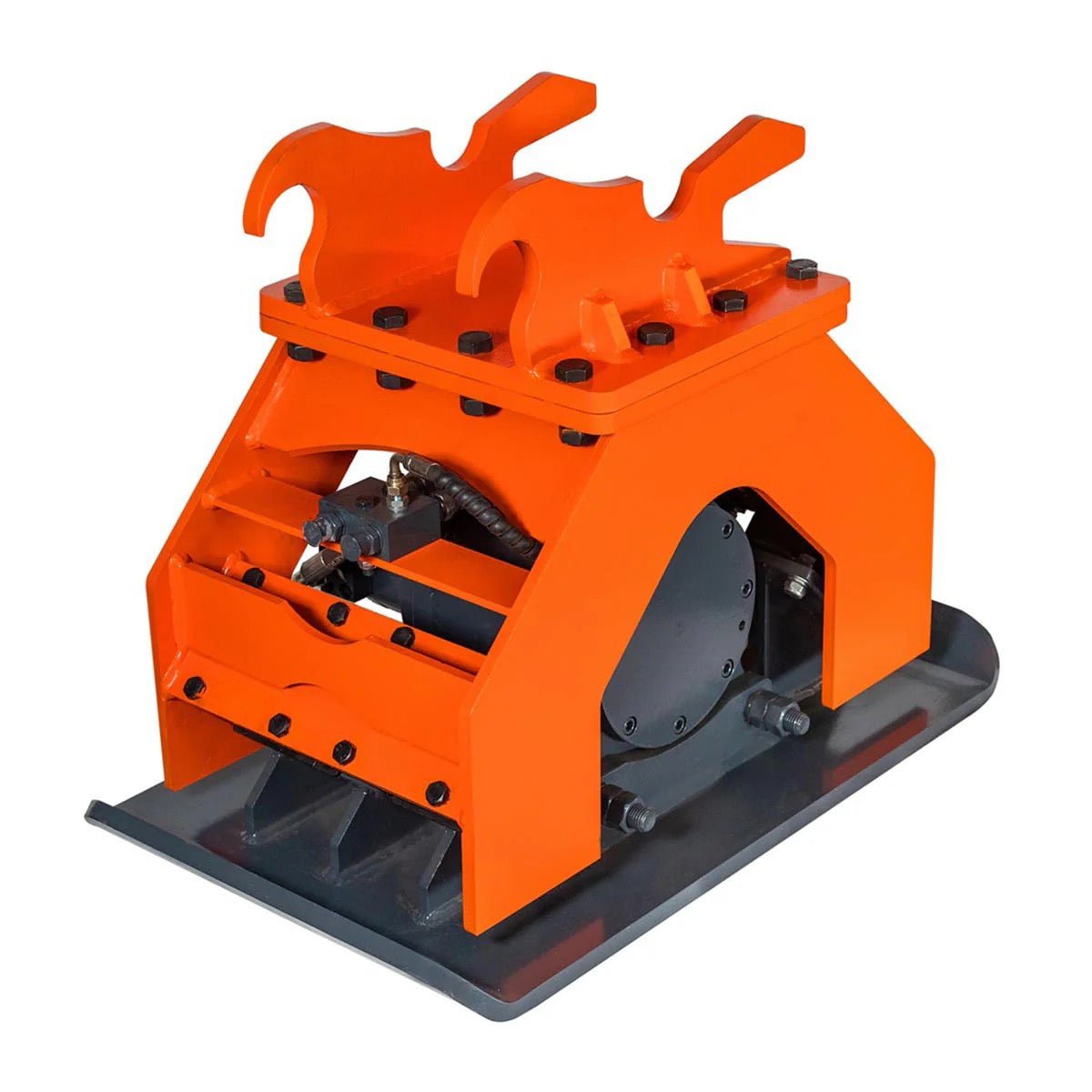

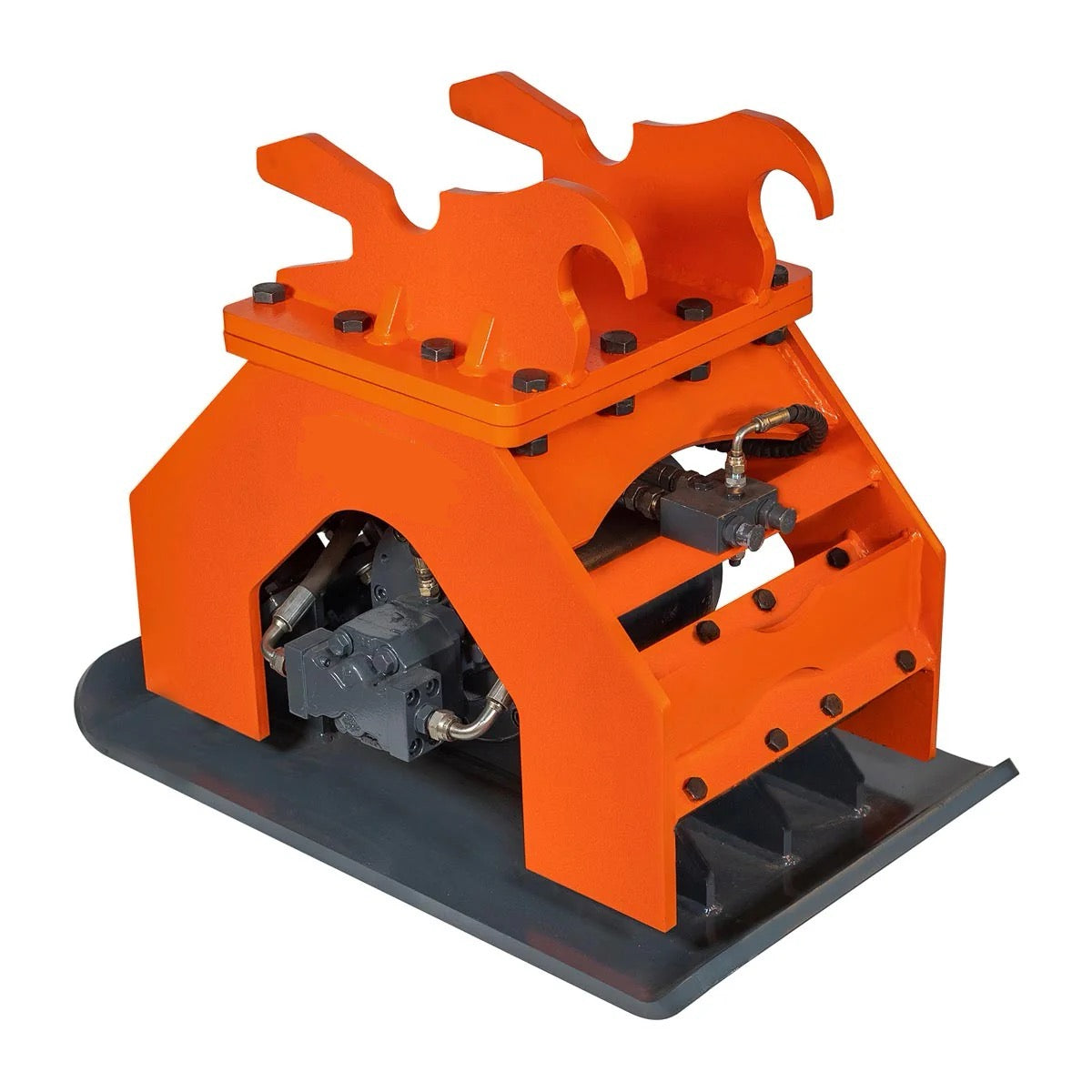

New Premium 11,000-lb Hydraulic Plate Compactor, 4-7 Ton Excavator Weight, 39” Compact Capacity
New Premium 11,000-lb Hydraulic Plate Compactor, 4-7 Ton Excavator Weight, 39” Compact Capacity
Regular price
$4,799.00 CAD
Regular price
$4,999.00 CAD
Sale price
$4,799.00 CAD
Unit price
per

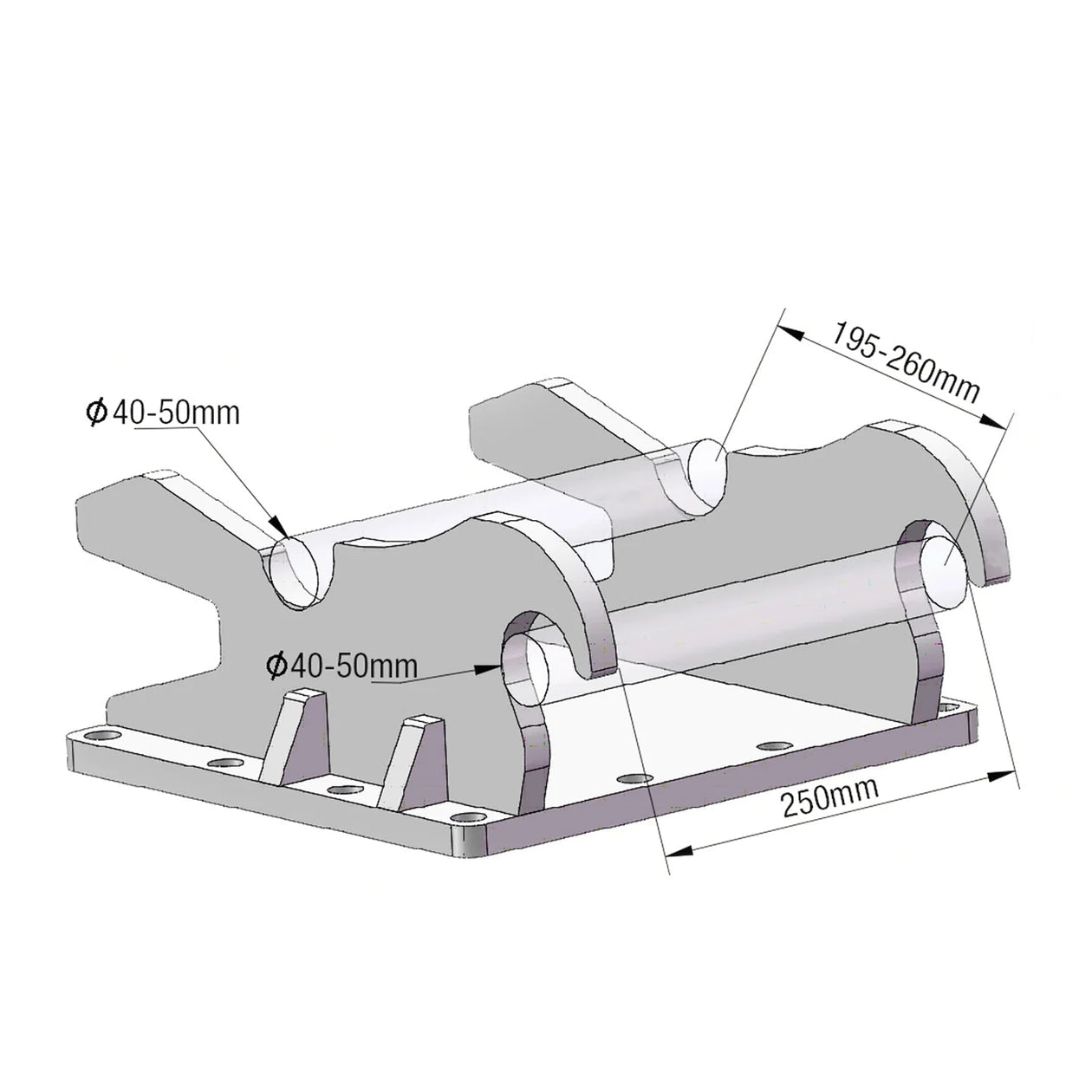

- Compatible with 4 to 7 ton carriers and equipped with an easy to use quick change design system that maintains workflow between job types

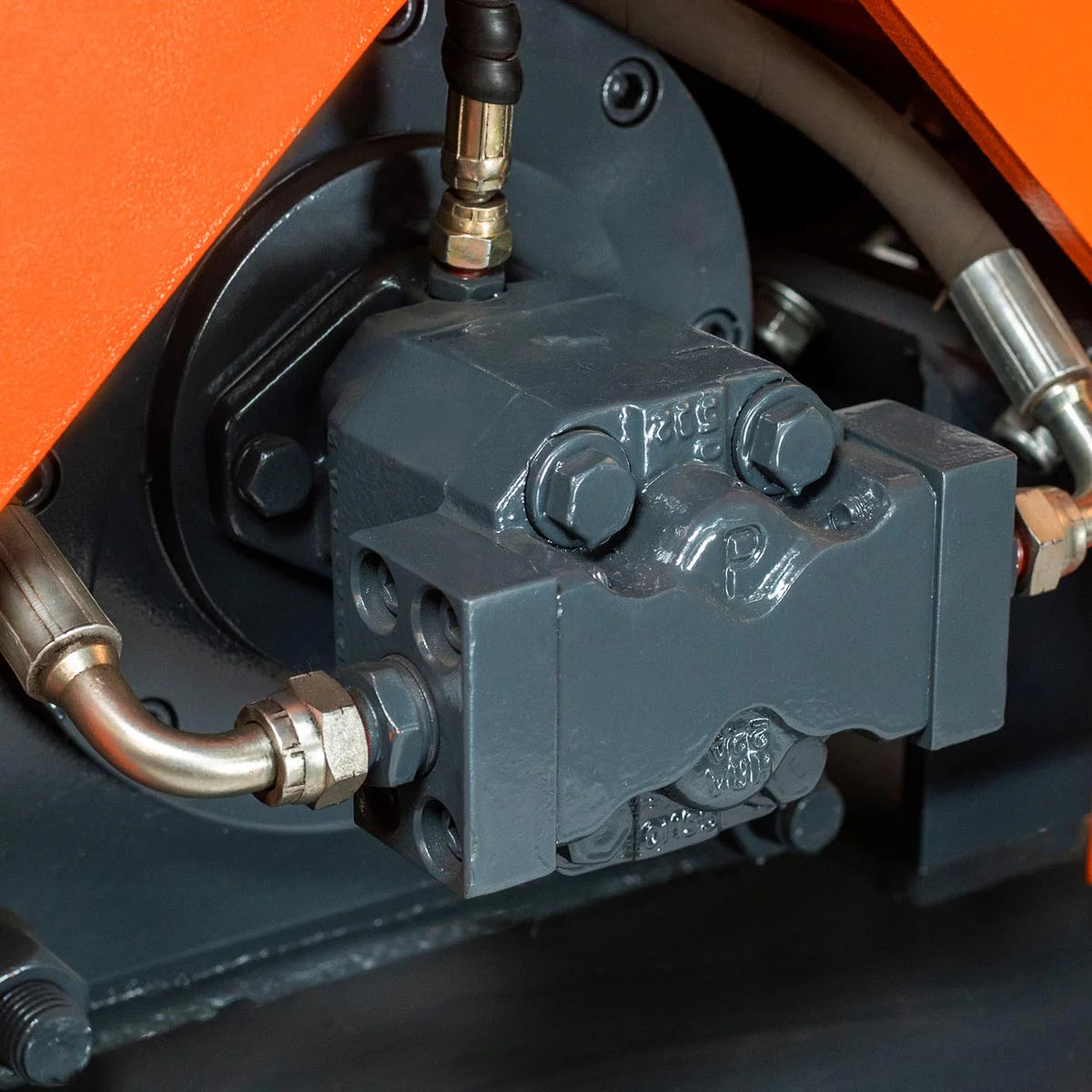

- Motor is housed in a heavy gauge steel, semi-open box frame that provides easy maintenance access and overall motor protection
- Eccentric weight vibration engineered for optimal soil compaction that translates to an 85% compaction density at 30” depth
- Industrial grade rubber cushion isolates vibrations from being extended to the boom, motor and bearings of your carrier

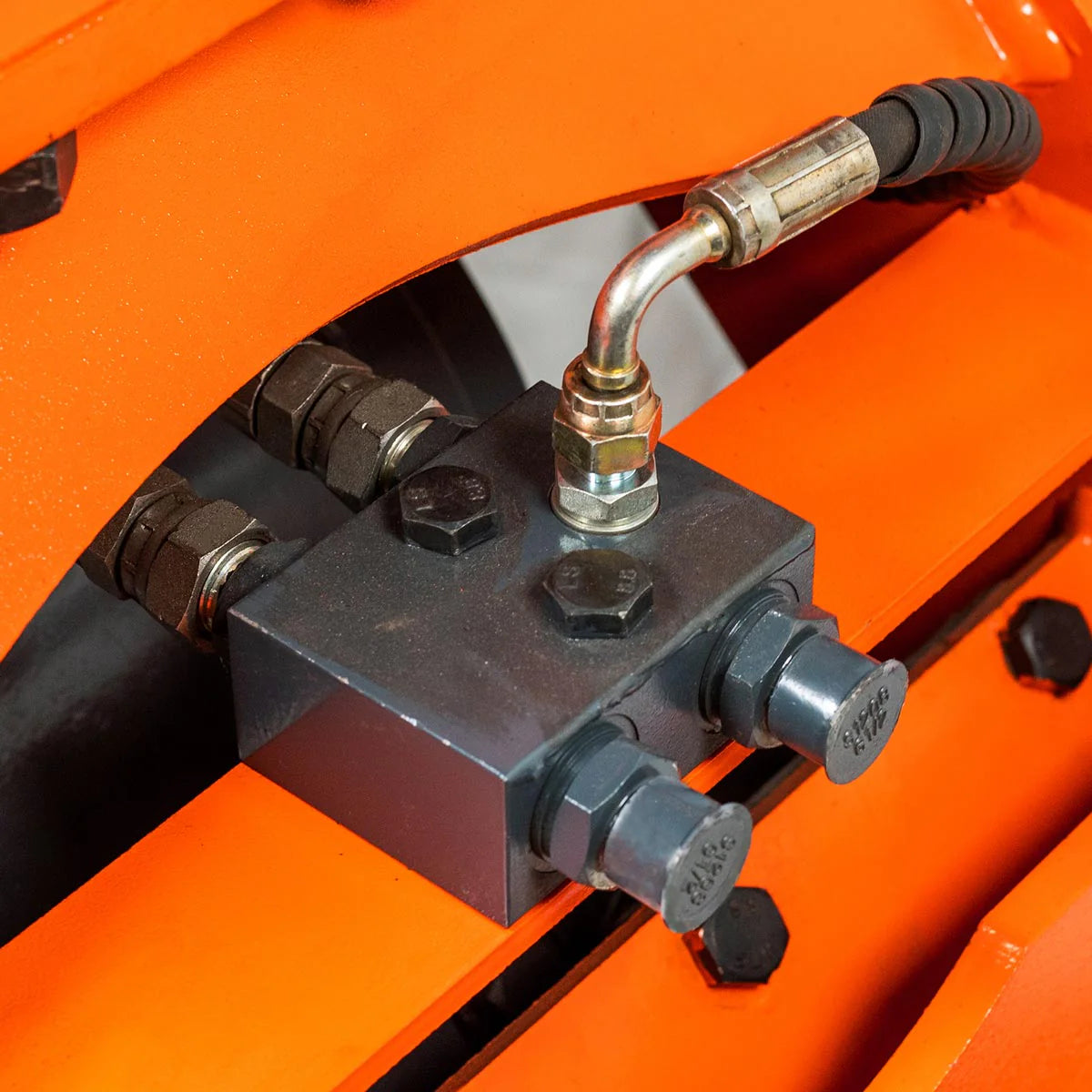

- Overload valve shutoff enables the motor to operate within its range capacity and maximize its working ability over time
- Fully sealed motor and bearings keep moisture, dust, dirt, rocks and other debris out when using in harsh working environments
- 11000 lbs of impulsive force created through almost 1900 PSI and 20 GPM hydraulic flow offer a potential compaction depth of 28”-39”
- Impulse force: 11,000 lb
- Exciter frequency: 2000 RPM
- Hydraulic flow: 12-20 GPM
- Pressure: 1450-1885 PSI
- Bottom plate: 35” x 21”
- Carrier weight: 8,800 -15,400 lb, 4-7 ton
- Soil compaction effective depth: 28”–39”
- Compaction density: 85% at 30”
- (2) ½” NPT thread high-pressure hydraulic hoses included
- Shipping dimension: 40” x 25” x 35” (L x W x H)
- Shipping weight: 860 lb
-
