• Medium to heavy duty model ideal for working in confined or large areas on commercial and residential job sites, available at a price that makes the investment better than renting a similar machine
• Powered by a Command Pro Series CH395 9.5 HP Kohler gasoline engine; best in class, high quality engine with a reputation for being reliable and having long-lasting durability
• Rapid forward and reverse plate travel speeds that are controlled by hydraulics allow dynamic workflow easily maneuvered by the operator
• Can travel up to 65 ft/min while compacting with a force of 6800 lbs at 4000 VPM, creating a total work capacity of up to 3900 square feet per hour
• Belt driven exciter, sealed belt cover and centrifugal clutch assembly create a safe, durable and economical transmission of power from the engine to the compactor
• Self-cleaning, tapered bottom edge, 28" x 18" base plate design minimizes dirt and rock build-up
• Rubber shock absorbers attached to the vibrating plate allow for increased accuracy around concrete forms, footings, gas lines and sewer pipes, as well as minimal wear and tear and sustained comfort for long-term, all-day use
• Protective frame/cage surrounds engine and keeps the compactor safe and shielded from falling debris or other tools on the job site

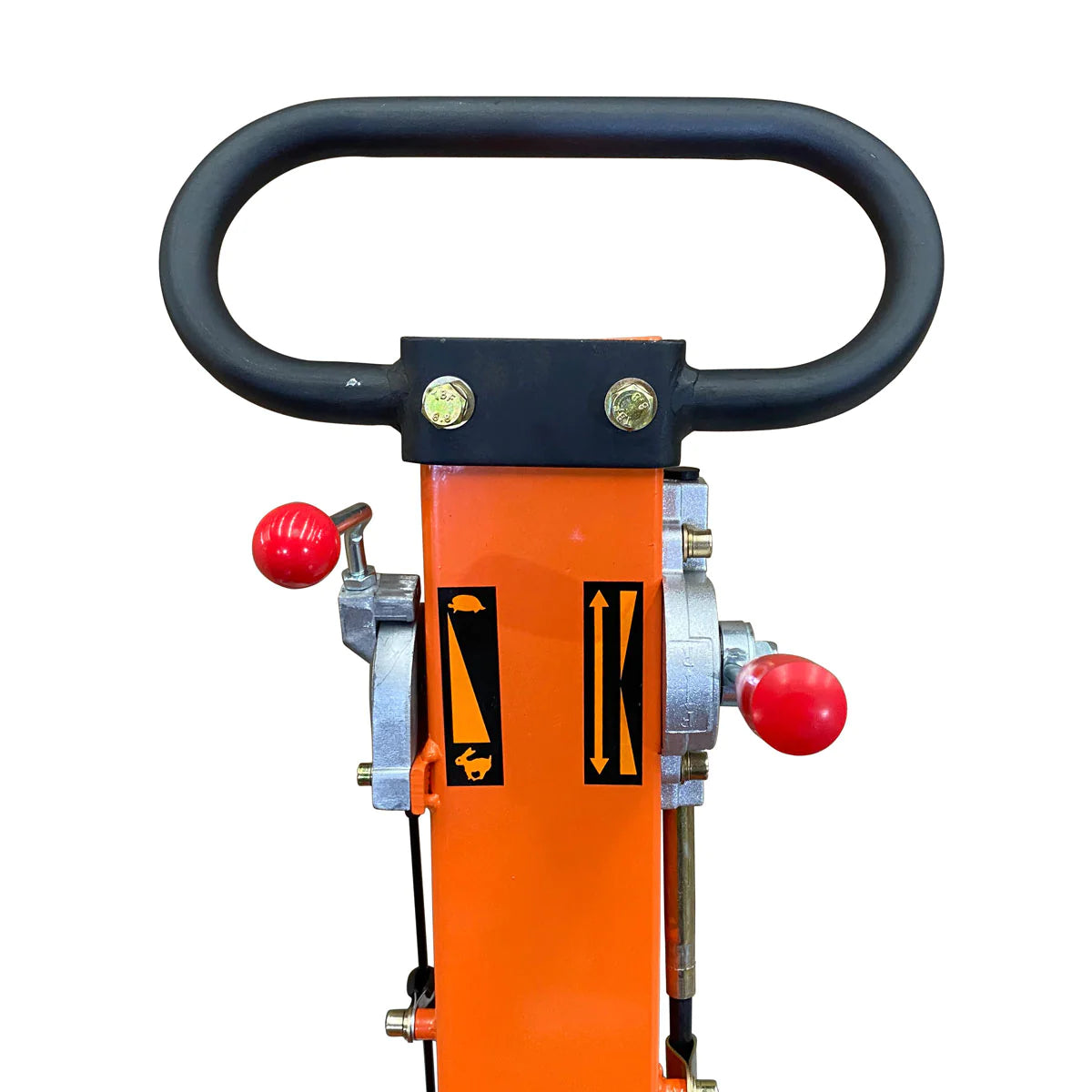

• Simple on/off switch and throttle lever controls are easy to use and can shut off the machine quickly in the case of an emergency
• The vibratory motion provides a self propelling action allowing the operator to relax and simply guide the machine and truly let it do all the work
• Able to compact all types of granular soils, crushed aggregate, sand, asphalt, paving stones, bricks and other materials up to 19” in depth
• Environmentally friendly; meets EPA III and CARB III emission standards

• Compaction force: 6800 lbs
• Work capacity: 3900 sq-ft/hour
• Frequency: 4000 VPM
• Compaction depth: 19”
• Travel speed: 65 ft/min
• Max. inclination angle: 15º
• Compaction plate size: 28” x 18”
• Operating weight: 340 lbs

Engine Specifications:

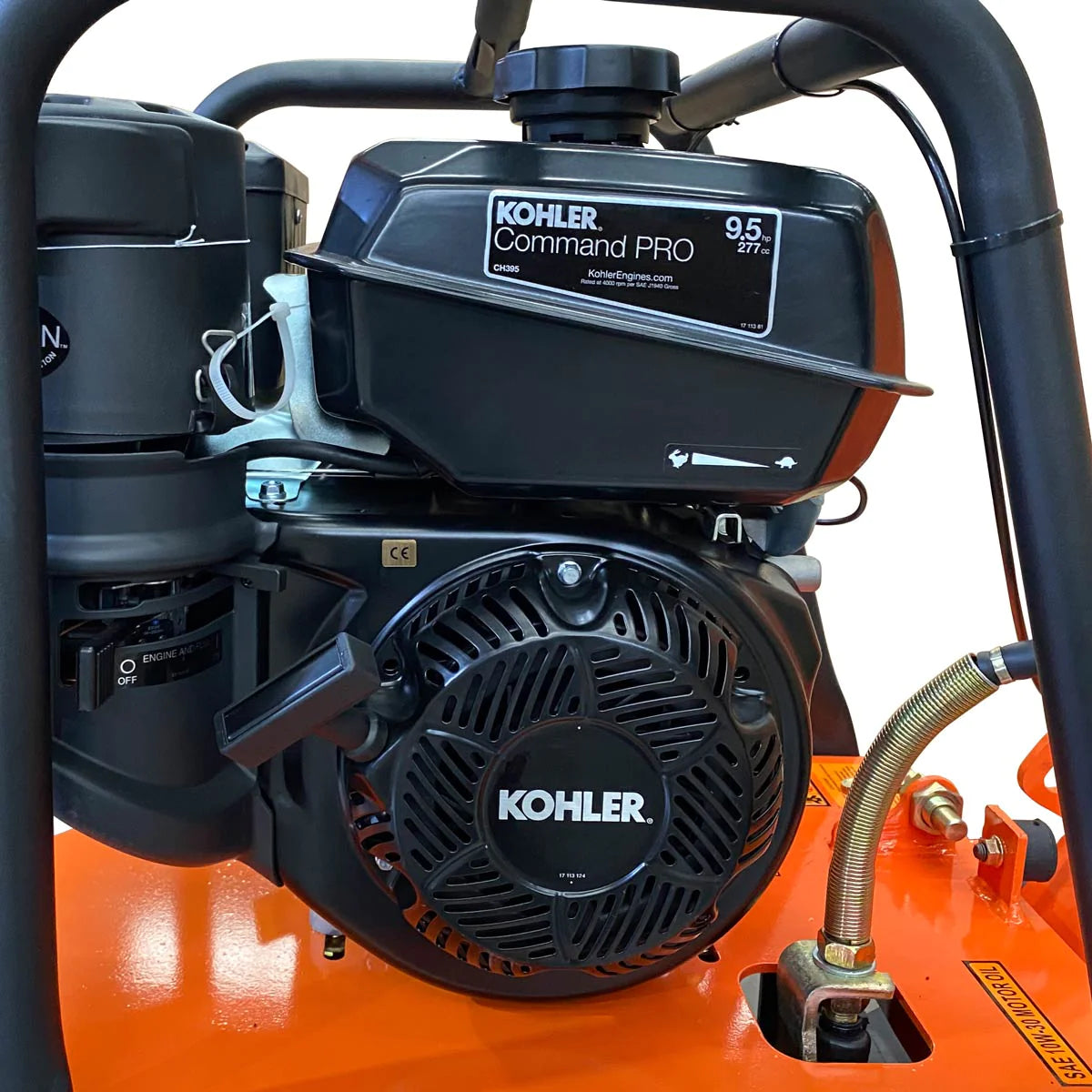

• 9.5 HP CH395 Kohler Command Pro Series engine
• Engine type: 4-cycle, gasoline, OHV, cast iron cylinder liner, aluminum block
• Forged steel crankshaft
• Cast-iron cylinder liner
• Quad-Clean™ all-season four-stage cyclonic air filter - effective engine protection for tough-and-dirty conditions
• Large-capacity fuel tank
• Displacement: 277 cc
• Gross Torque: 18.8 lb/feet
• Oil Capacity: 1.3 US qt
• Emissions compliance: EPA Phase III and CARB III

• The product is packed in a wood crate shipping box
• Dimension: 31" x 19" x 44" (L x W x H)
• Shipping weight: 380 lbs
