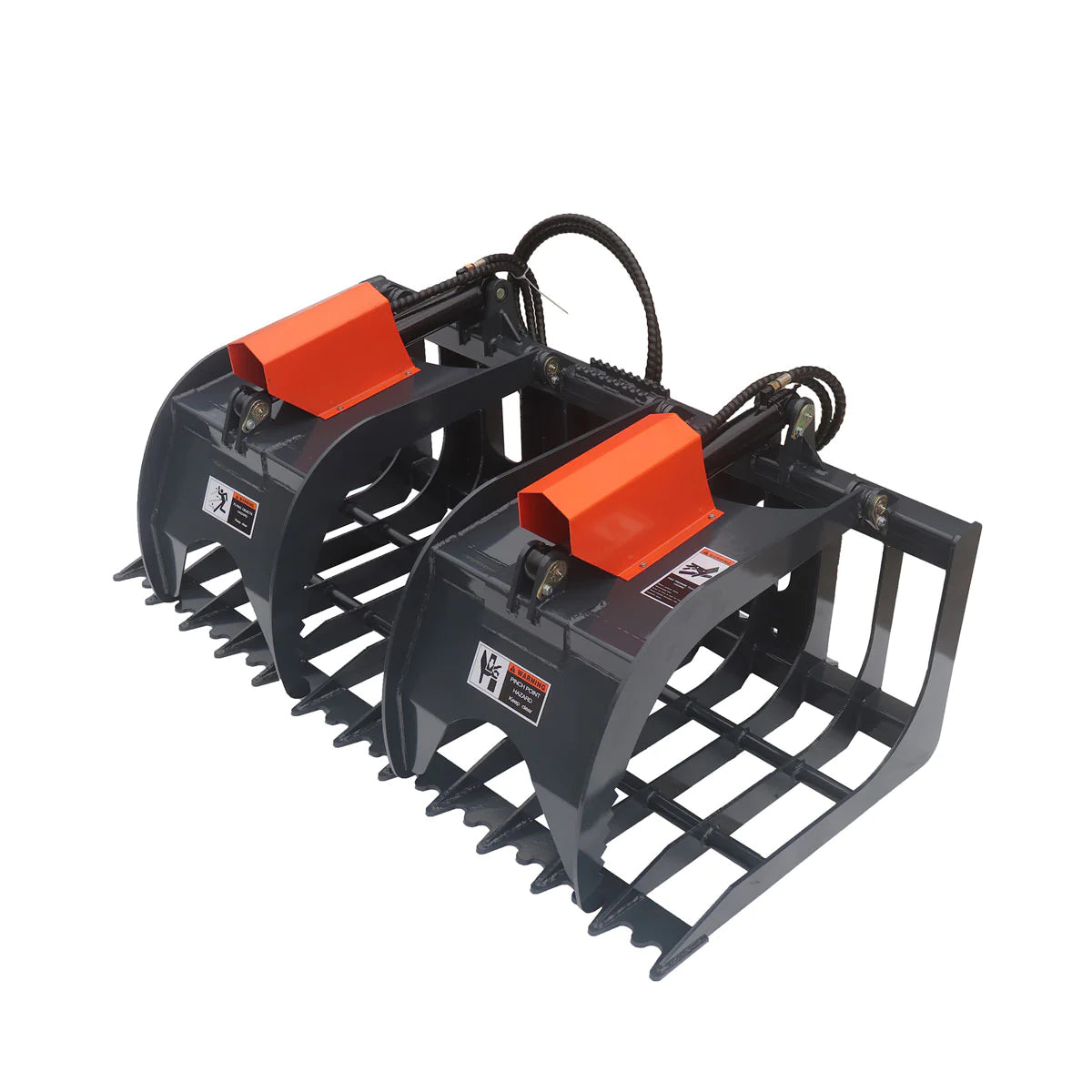

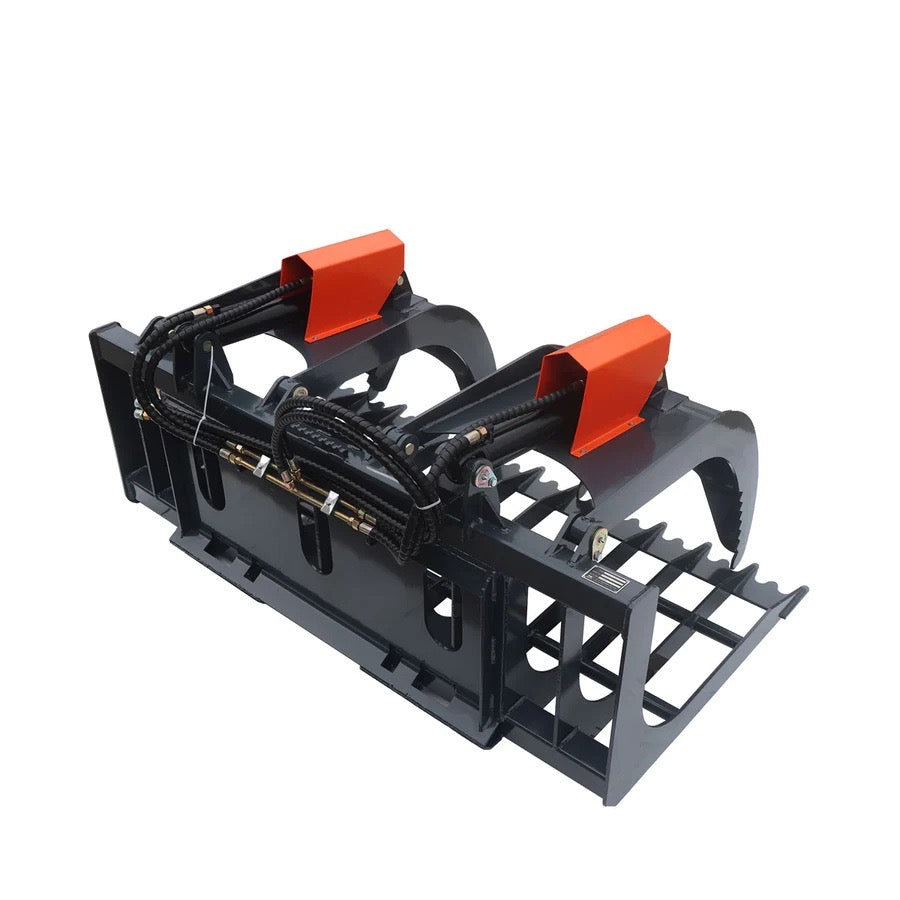

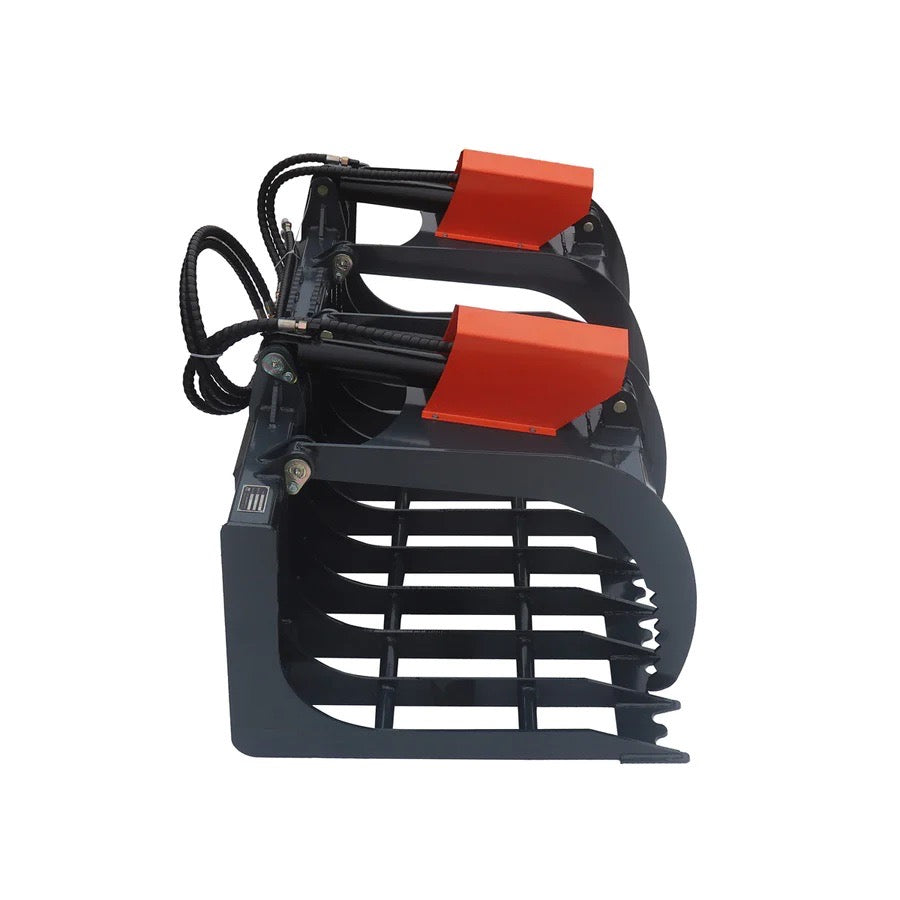

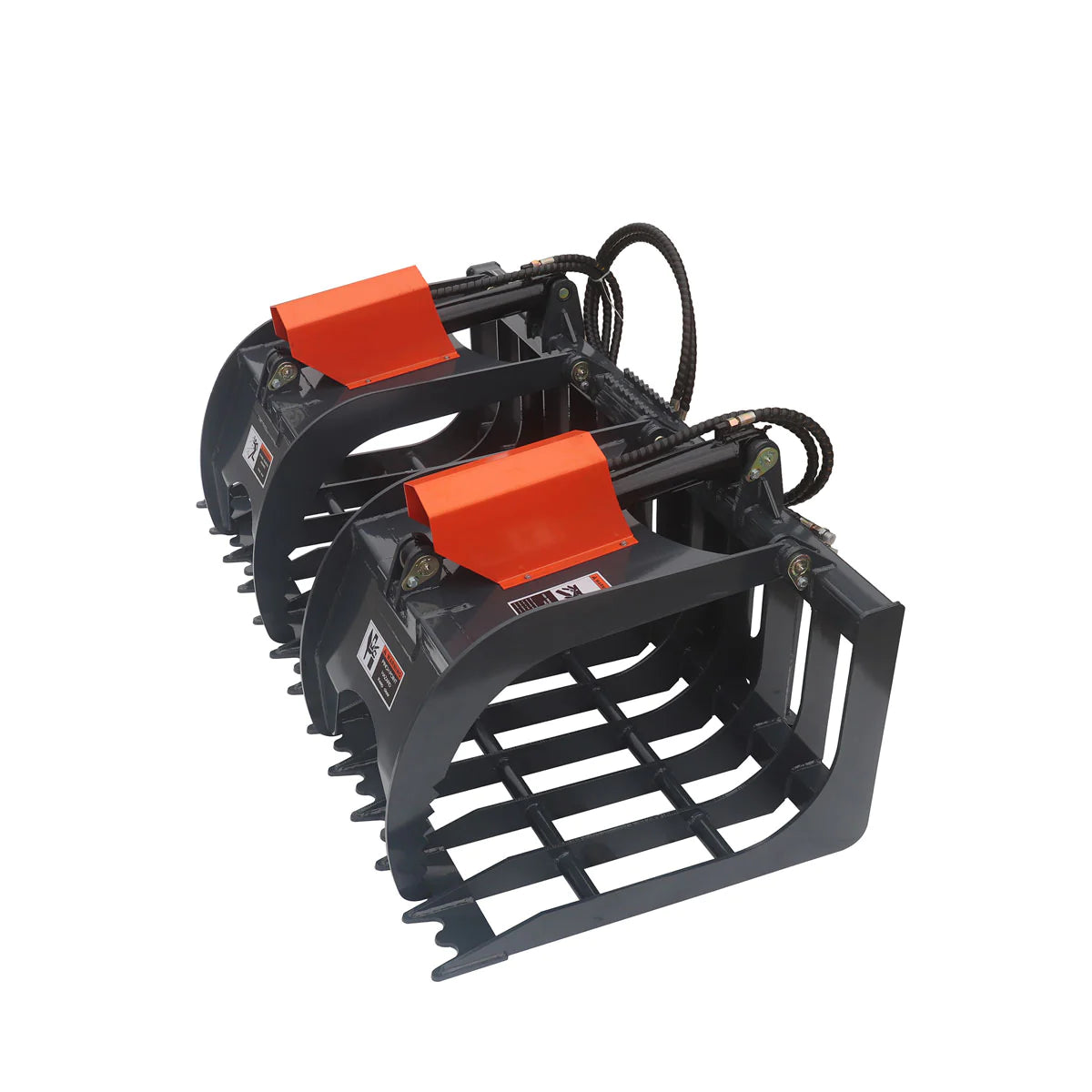

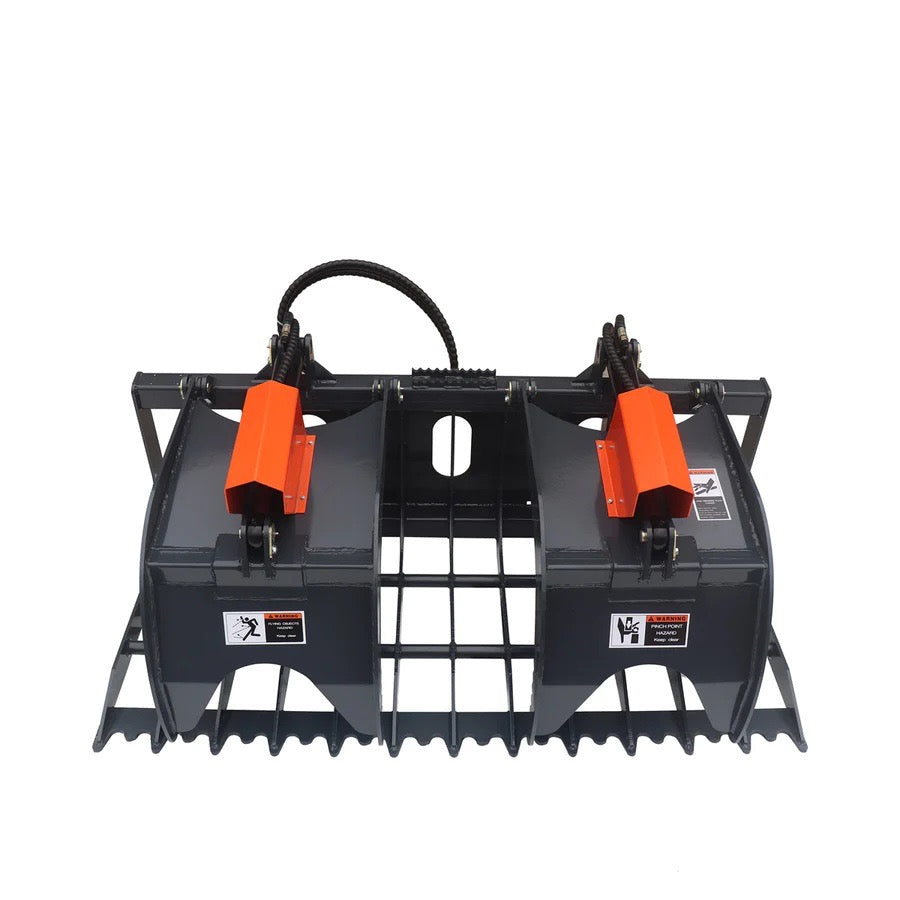

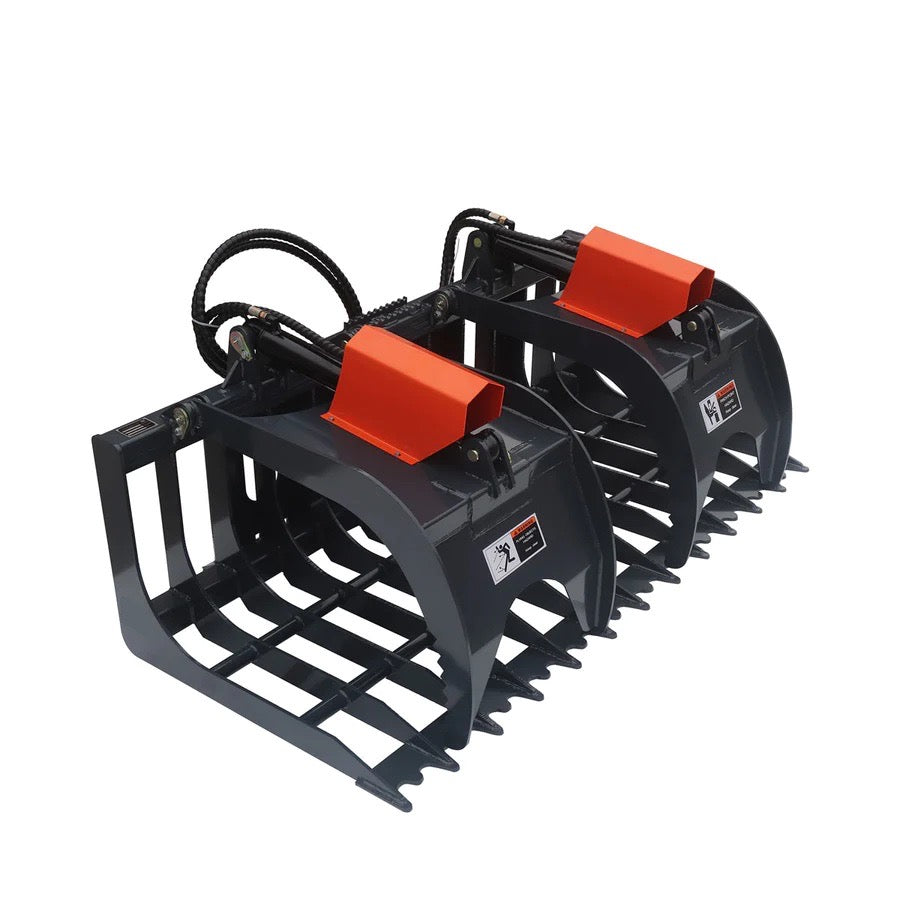

New Premium Skid Steer Rock Skeleton Grapple Attachment, Universal Mount, 36” Arm Opening, 6” Tine Spacing, 2500 lb Weight Capacity

New Premium Skid Steer Rock Skeleton Grapple Attachment, Universal Mount, 36” Arm Opening, 6” Tine Spacing, 2500 lb Weight Capacity

$4,299.99 CAD
$4,299.99 CAD
Sale Sold out
Title
Place Order / Contact Us

Plus Shipping and Tax



Features

  • Flat bottom slides over the ground not to damage the surface
  • 3" x 3" primary frame beams
  • Dual 3000 PSI hydraulic cylinders
  • Cylinder guards included
  • Greaseable pivot pins with bolt-locked design
  • Universal skid steer mount

Specifications

  • Compatible with 30-70 HP skid steers
  • Overall dimension: 72” or 84” (L) x 41” (W) x 31” (H)
  • Working width: 72” and 84”
  • Grapple capacity: 2500 lb
  • Dual cylinders: 2-½” bore x 8” stroke
  • Tine spacing: 6”
  • Tine thickness: ½”
  • Grapple arm opening: 36”
  • Hydraulic pressure: 3000 PSI
  • Flow rate: 12-24 GPM
  • Twin hydraulic cylinder grapple arms with protective guards
  • Universal skid steer mount

Shipping Information

  • This product is packed in a metal crate shipping box
  • Shipping dimension: 42” x 32” ( W x H)
  • Shipping weight: 800 lb( 72” ) 880 lbs ( 84” )
