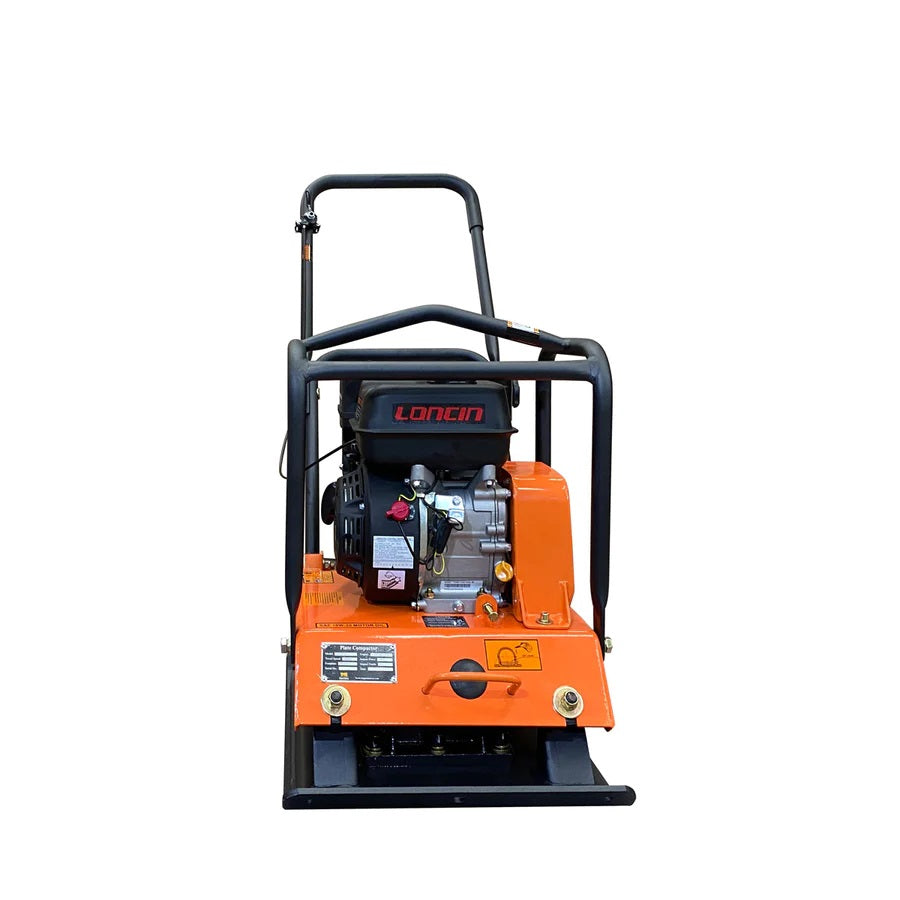

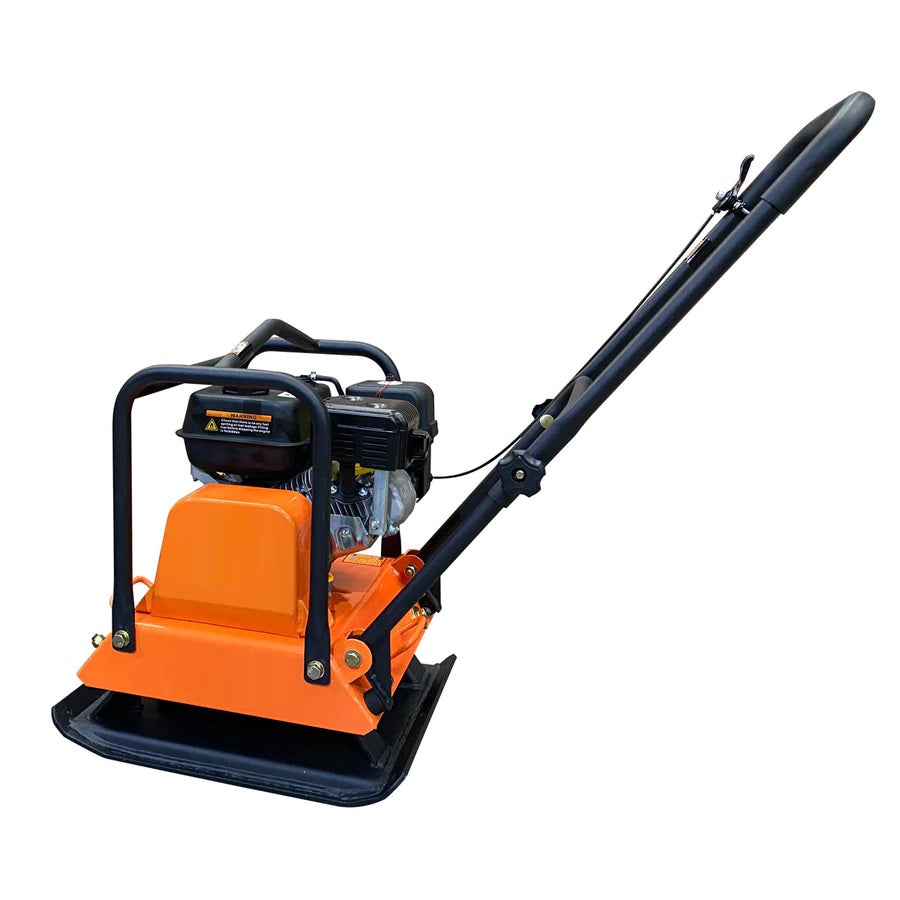

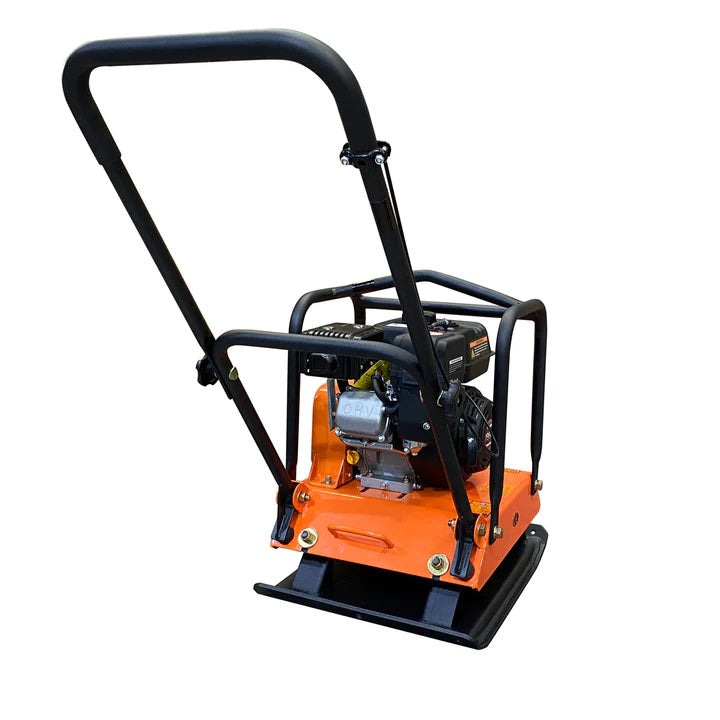

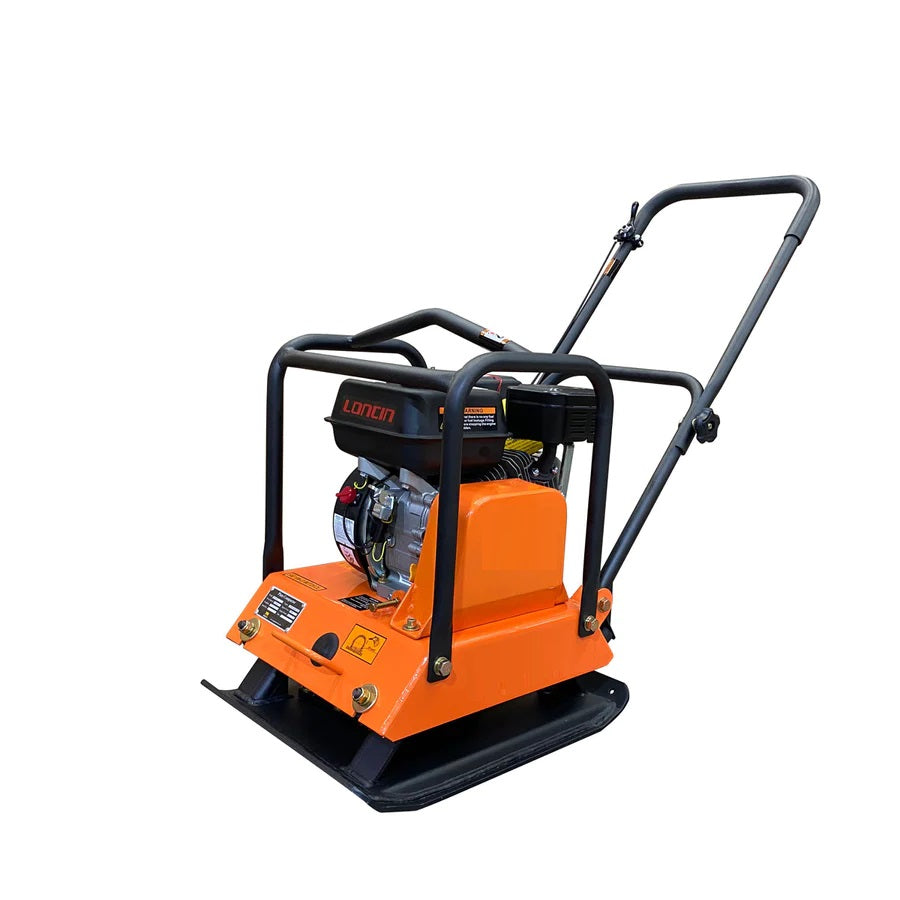

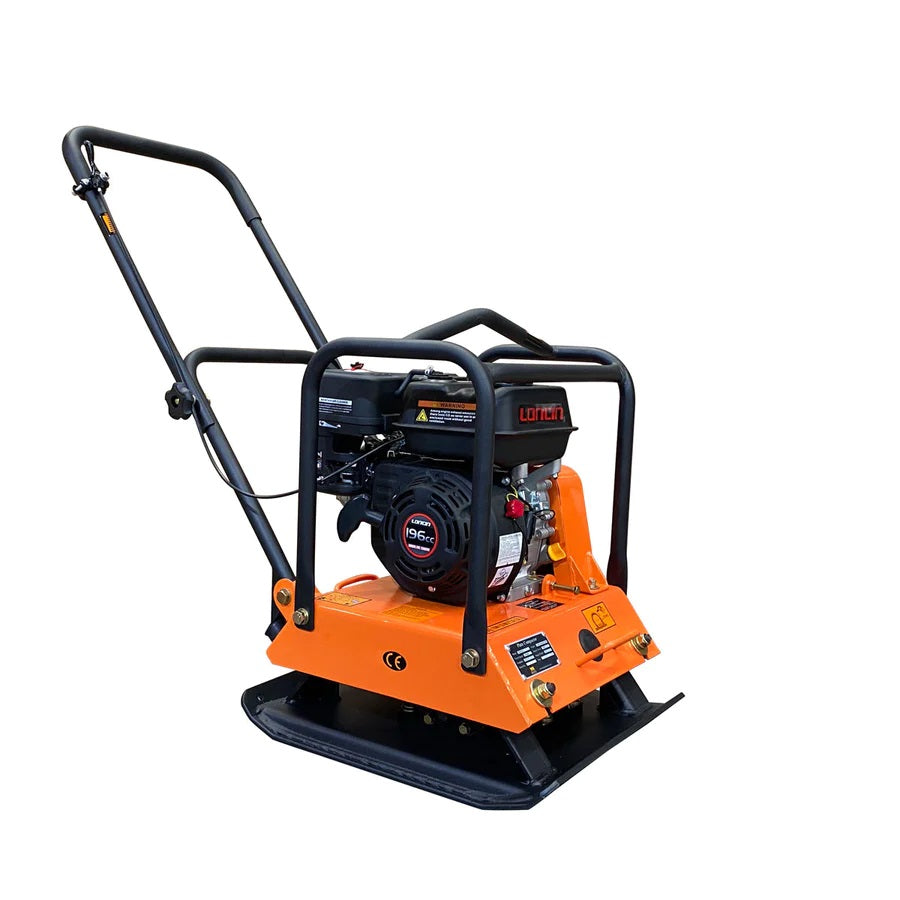

• Entry level model ideal for working in confined areas on lighter commercial and residential job sites, available at a price that makes the investment better than renting a similar machine
• Powered by an air-cooled, single cylinder LONCIN G200F gas engine that can produce up to 6.5 HP at 3600 RPM
• Can travel up to 72 ft/min (depending on hardness and depth of material) while compacting with a force of 3400 lbs at 4200 VPM, creating a total work capacity of up to 4320 square feet per hour
• Belt driven exciter, sealed belt cover and centrifugal clutch assembly create a safe, durable and efficient transmission of power from the engine to the compactor
• Self-cleaning, tapered bottom edge, 22" x 17" base plate design minimizes dirt and rock build-up
• Rubber shock absorbers attached to the vibrating plate allow for increased accuracy around concrete forms, footings, gas lines and sewer pipes, as well as minimal wear and tear and sustained comfort for long-term, all-day use
• Protective frame/cage surrounds engine and keeps the compactor safe and shielded from falling debris or other tools on the job site
• Simple on/off switch and throttle lever controls are easy to use and can shut off the machine quickly in the case of an emergency
• The vibratory motion provides a self propelling action allowing the operator to guide the machine smoothly along firmer surfaces
• Wheel kit with two wheels included for smooth portability around the job site or loading/unloading onto or off of a trailer, also has a foldable handle assembly for easy transport and storage
• Able to compact all types of granular soils, crushed aggregate, asphalt, paving stones, bricks and other materials up to 12” in depth
• Environmentally friendly; low noise and low emissions, meets EPA standards

• Frequency: 4200 VPM
• Compaction depth: 12”
• Compaction force: 3400 lb
• Work capacity: 4320 sq-ft/hr
• Travel speed: 72’/min, varies with hardness and depth of material

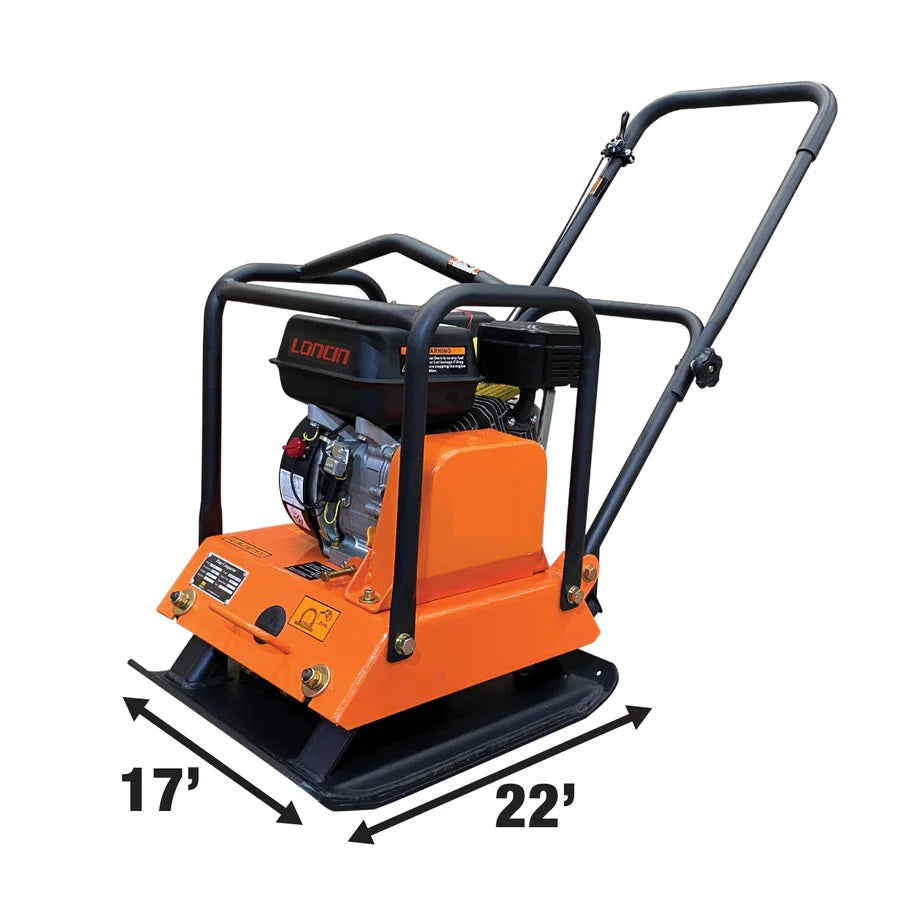

• Plate size: 22” x 17”
• Operation weight: 195 lb

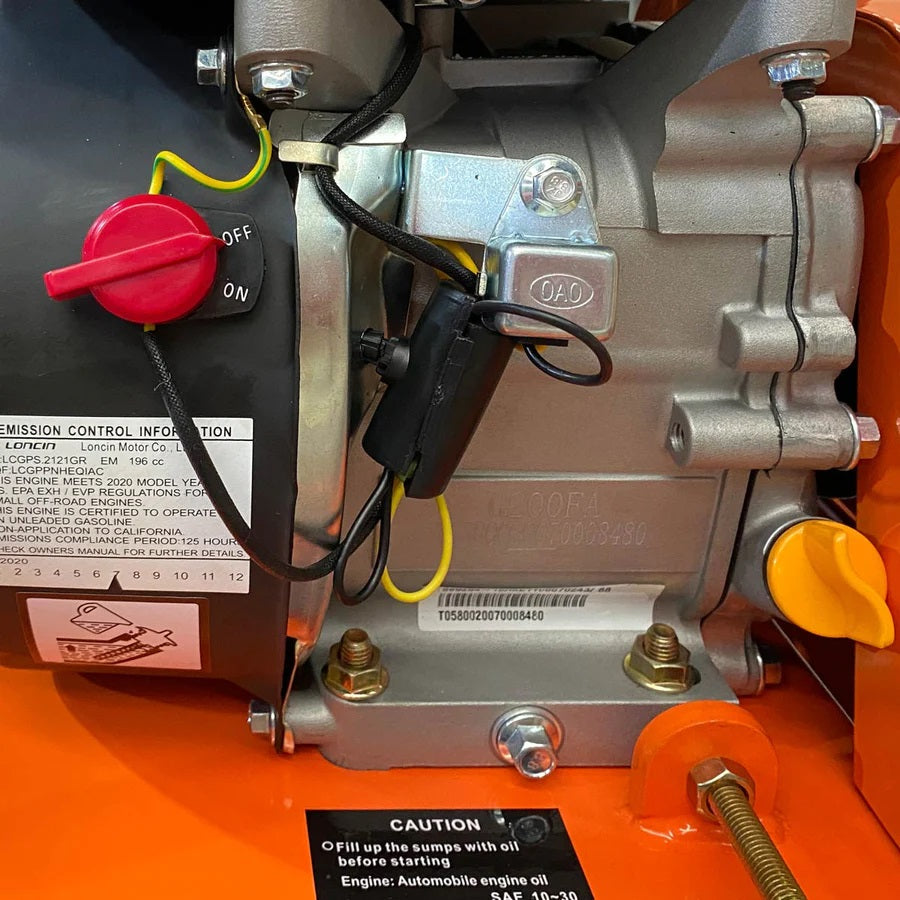

Engine Specifications:

• 6.5 HP LONCIN G200F engine
• Air-cooled 4 stroke OHV gasoline engine
• Max power: 6.5 HP @ 3600 RPM
• Max torque: 9.15 lb/ft @ 3600 RPM
• Displacement: 196 cc
• Air cleaner: Dual element
• Cast iron cylinder sleeve
• Fuel tank capacity: 3.8 US qt
• Engine oil type: 10W-30
• Emissions compliance: EPA

• This product is packed in a wood crate shipping box
• Dimension: 25" x 19" x 28"
• Shipping weight: 210 lb
