Features

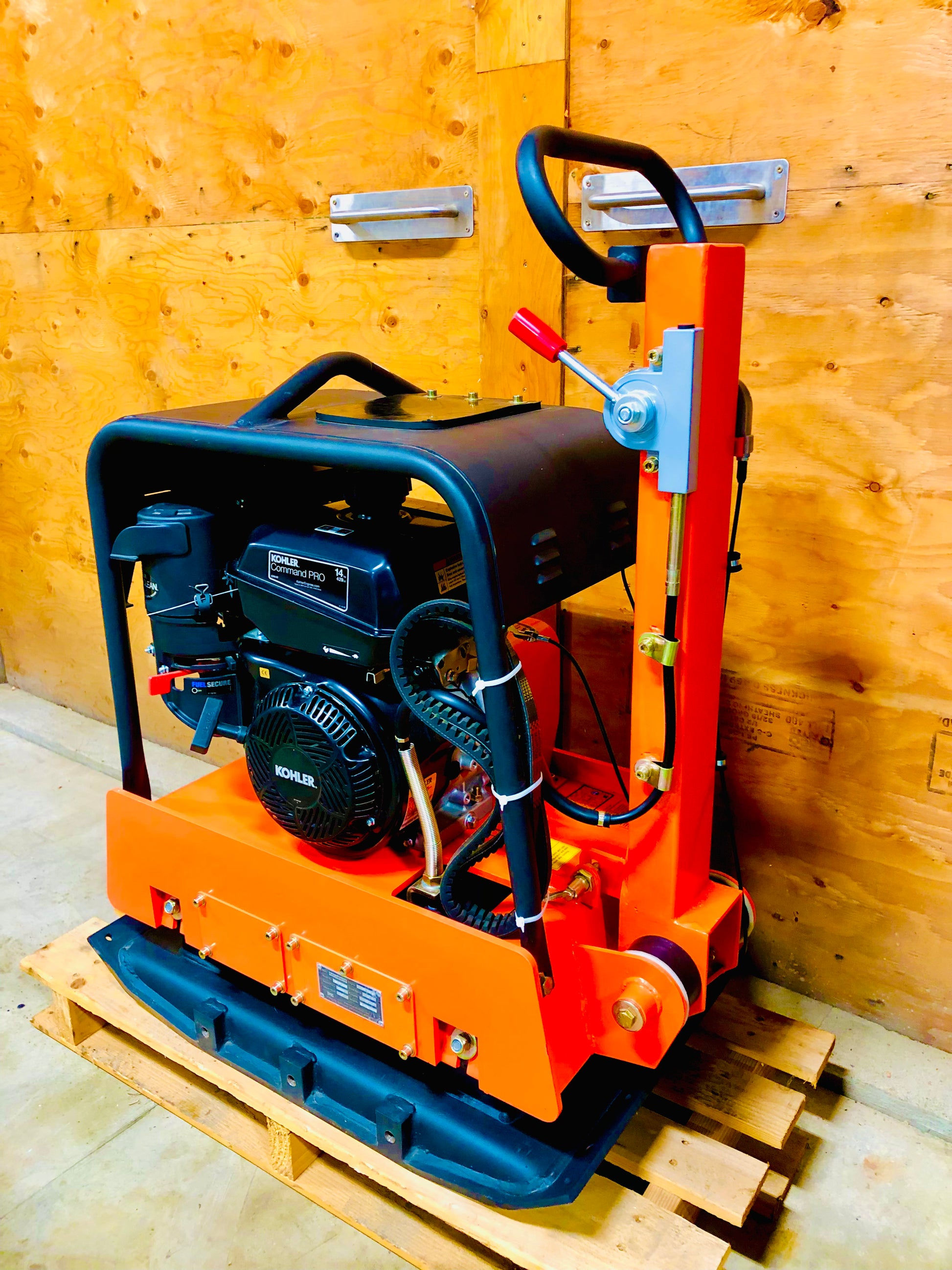

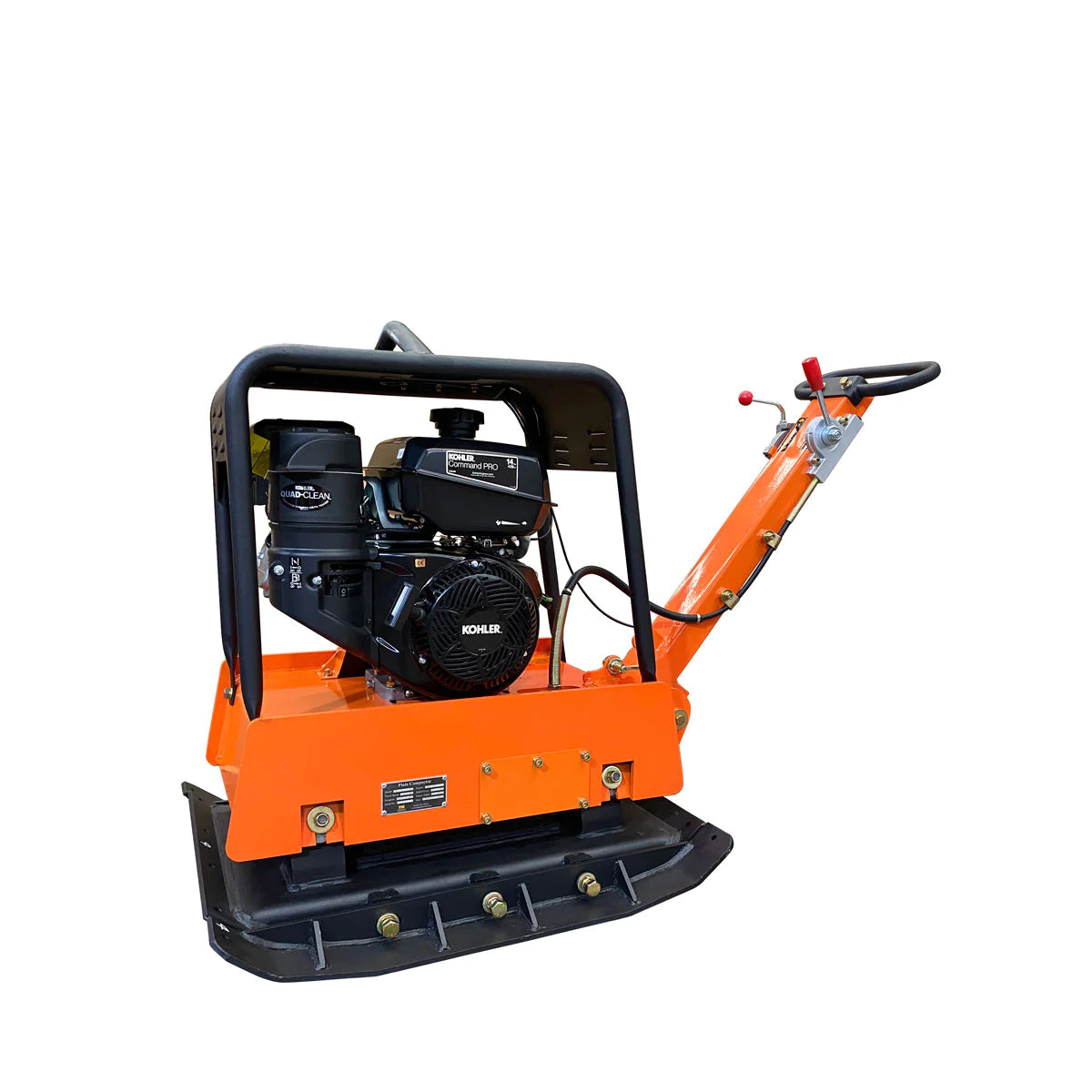

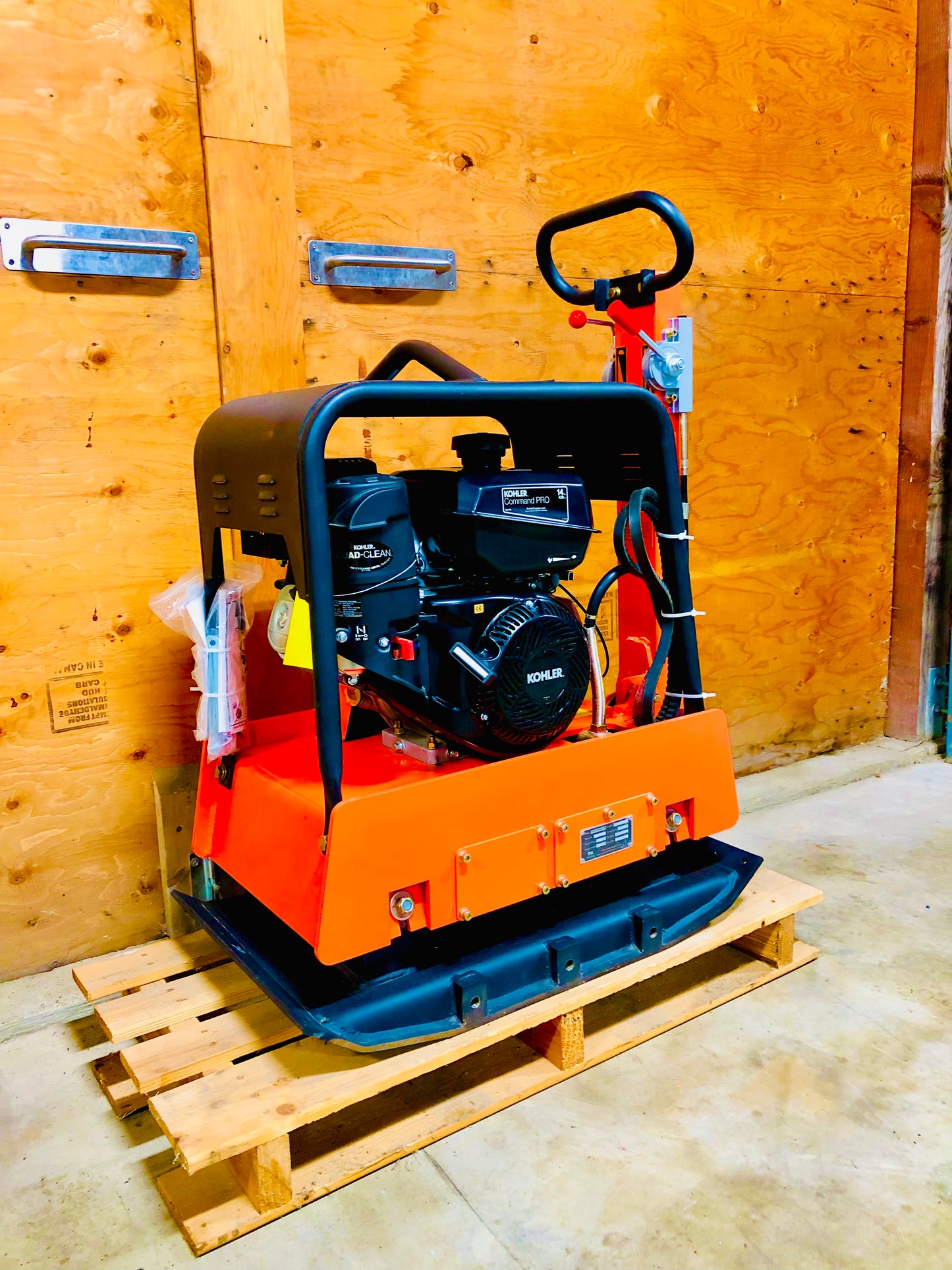

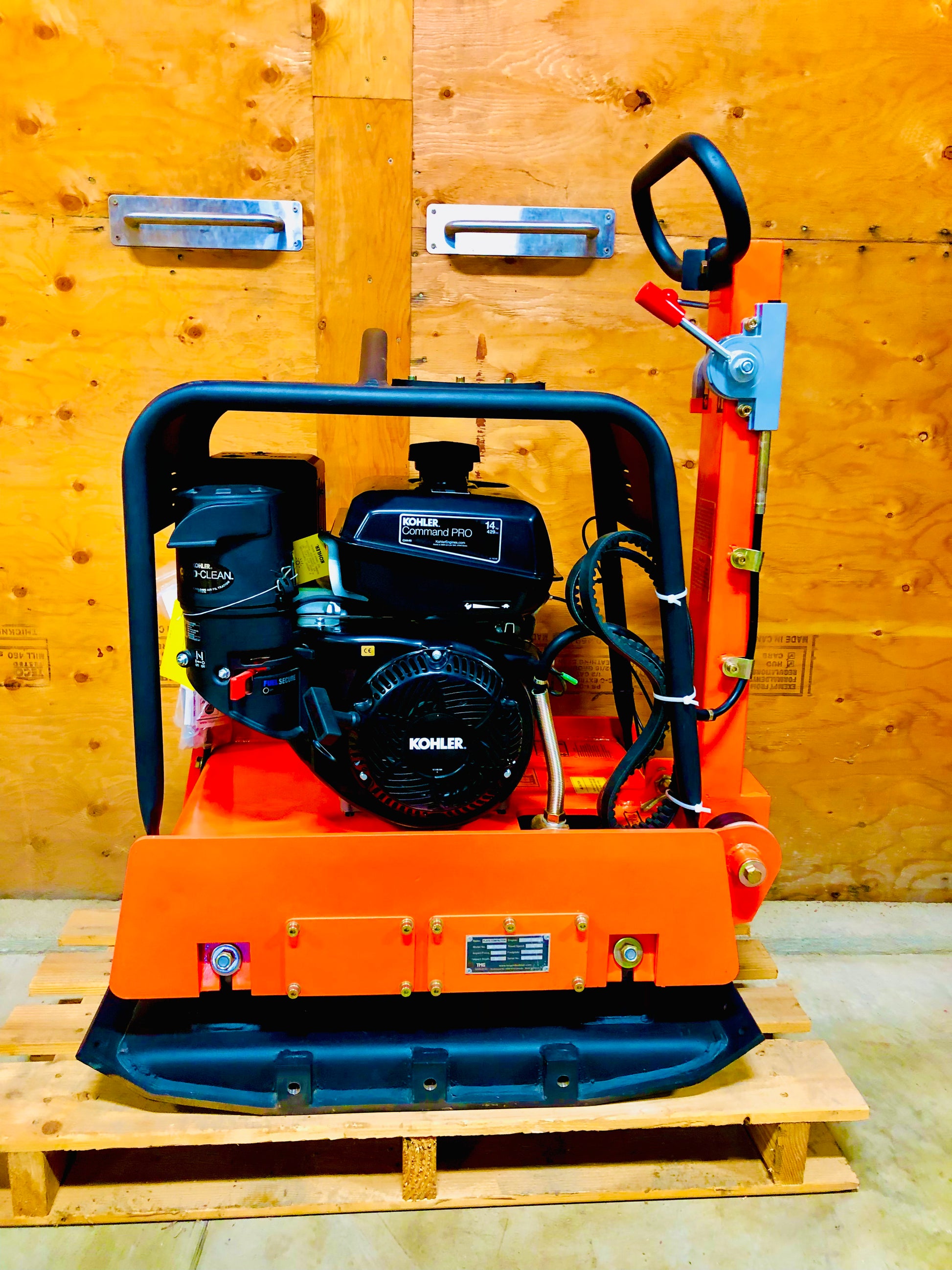

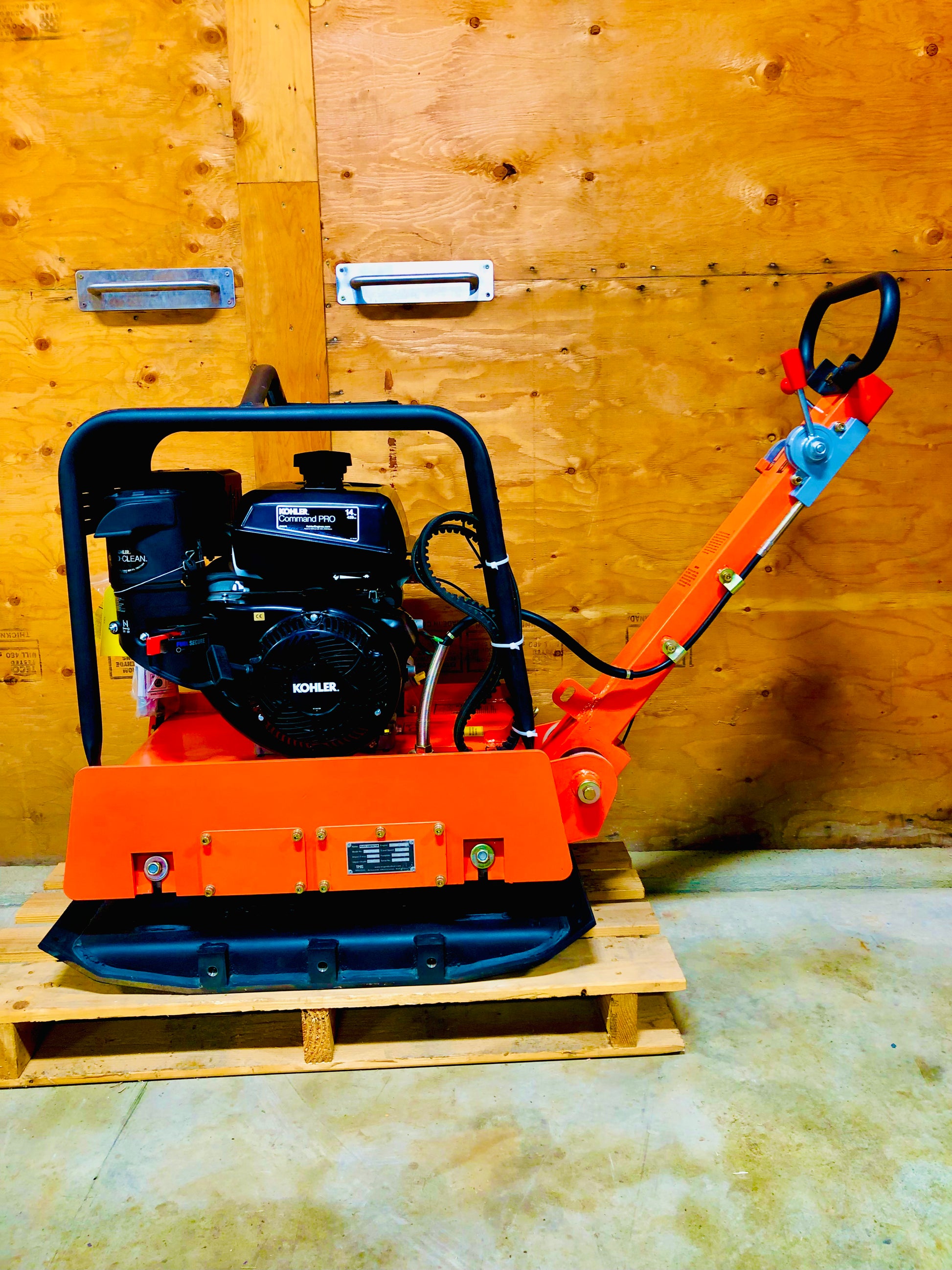

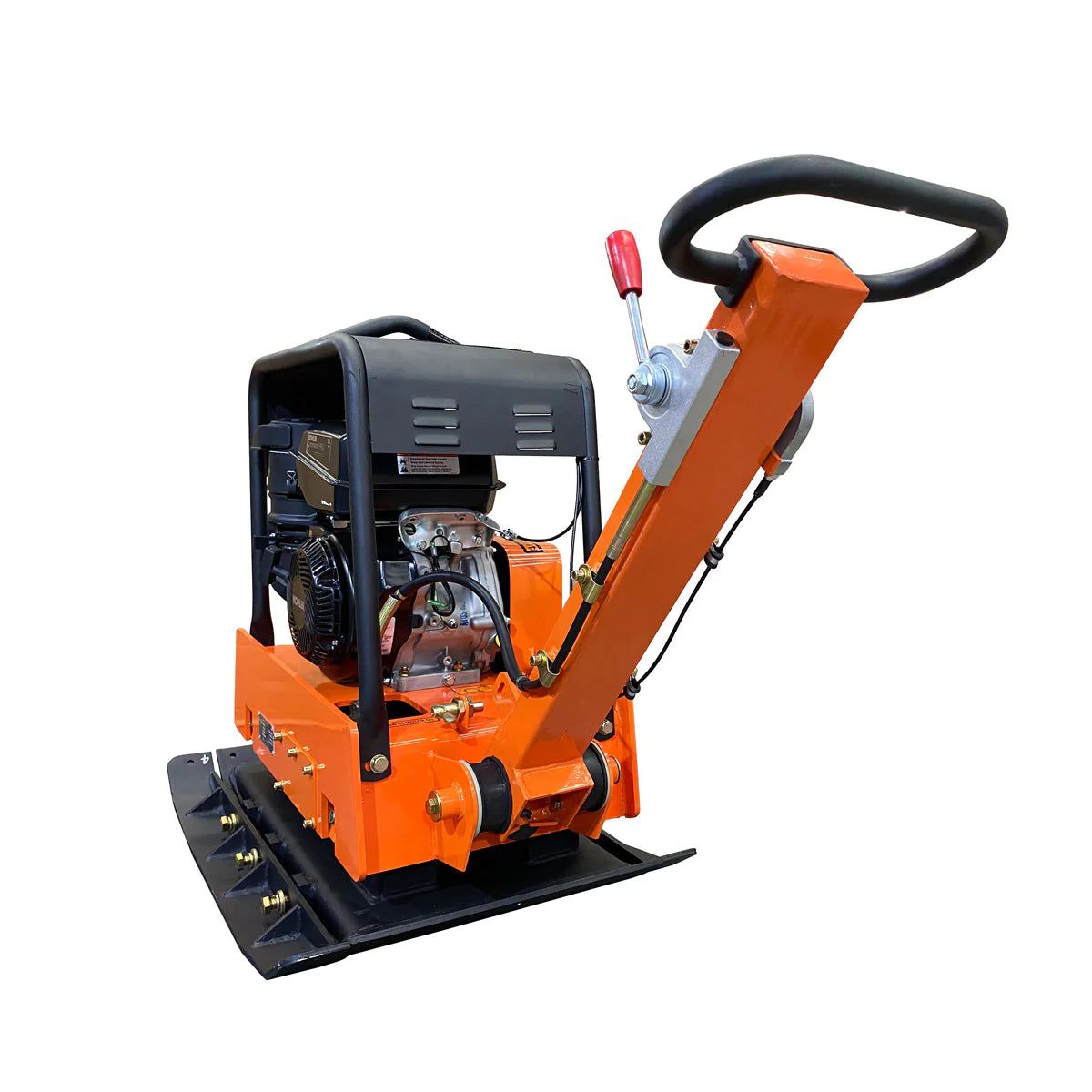

• Heavy duty model ideal for working in confined or large areas on commercial and residential job sites, available at a price that makes the investment better than renting a similar machine
• Powered by a Command Pro Series CH440 14 HP Kohler gasoline engine; best in class, high quality engine with a reputation for being reliable and having long-lasting durability
• Rapid forward and reverse plate travel speeds that are controlled by hydraulics allow dynamic workflow easily maneuvered by the operator
• Can travel up to 70 ft/min while compacting with a force of 8500 lbs at 3750 VPM, creating a total work capacity of up to 4200 square feet per hour
• Belt driven exciter, sealed belt cover and centrifugal clutch assembly create a safe, durable and economical transmission of power from the engine to the compactor
• Self-cleaning, tapered bottom edge, 32" x 19" base plate design minimizes dirt and rock build-up
• Included are two 32” x 3” plate extenders to increase overall plate size to 32” x 25”, meaning you can get bigger jobs done quicker and with more efficiency
• Rubber shock absorbers attached to the vibrating plate allow for increased accuracy around concrete forms, footings, gas lines and sewer pipes, as well as minimal wear and tear and sustained comfort for long-term, all-day use
• Protective frame/cage surrounds engine and keeps the compactor safe and shielded from falling debris or other tools on the job site

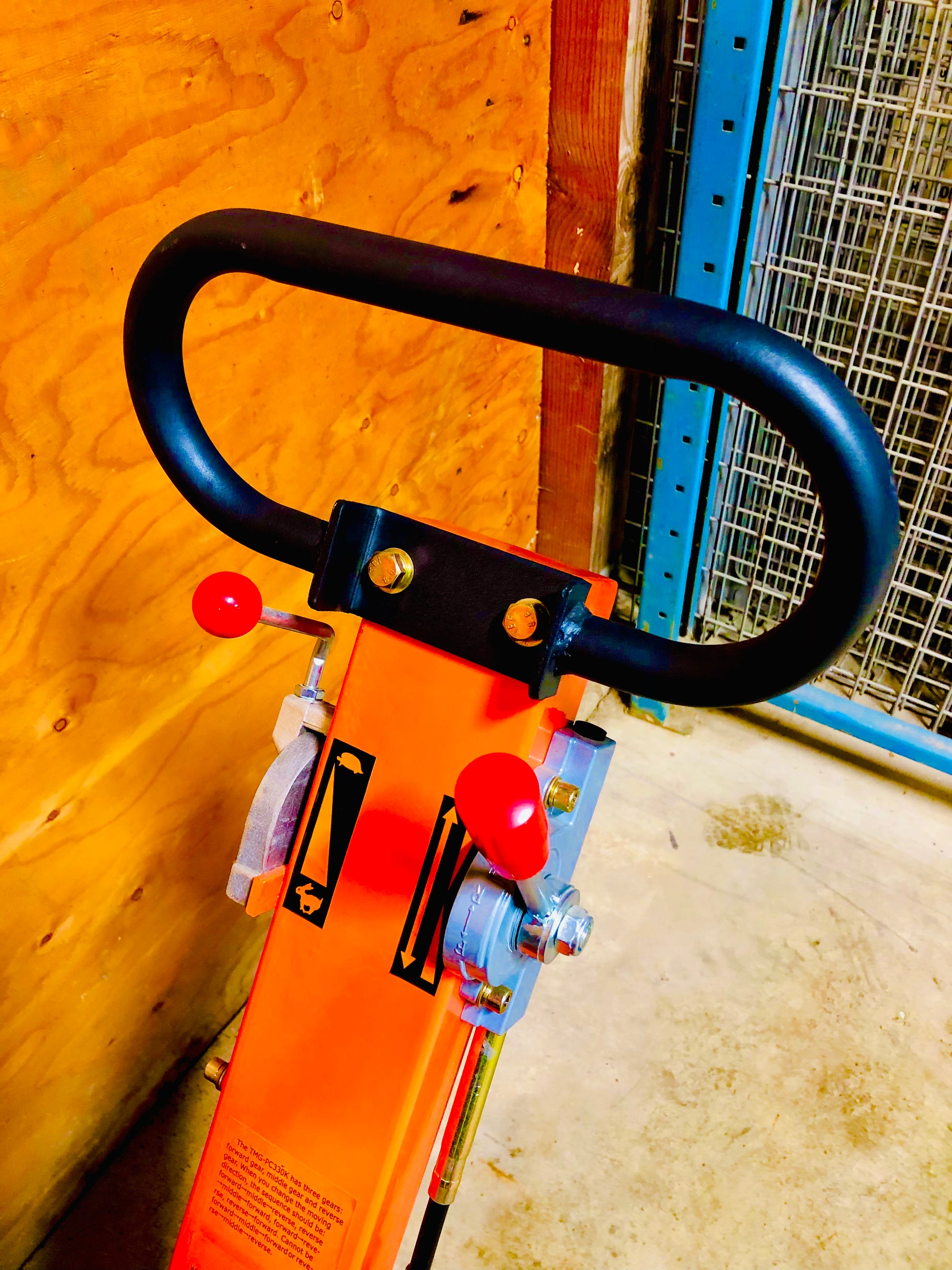

• Simple on/off switch and throttle lever controls are easy to use and can shut off the machine quickly in the case of an emergency
• The vibratory motion provides a self propelling action allowing the operator to relax and simply guide the machine and truly let it do all the work
• Able to compact all types of granular soils, crushed aggregate, sand, asphalt, paving stones, bricks and other materials
• Environmentally friendly; meets EPA III and CARB emission standards

Specifications

• Compaction force: 8500 lbs
• Work capacity: 4200 sq-ft/hour
• Frequency: 3750 VPM
• Compaction depth: 34”
• Travel speed: 70 ft/min
• Max. inclination angle: 15º
• Compaction plate size: 32” x 19”
• (2) Compaction plate extenders: 32” x 3”
• Operating weight: 595 lbs

Engine Specifications:

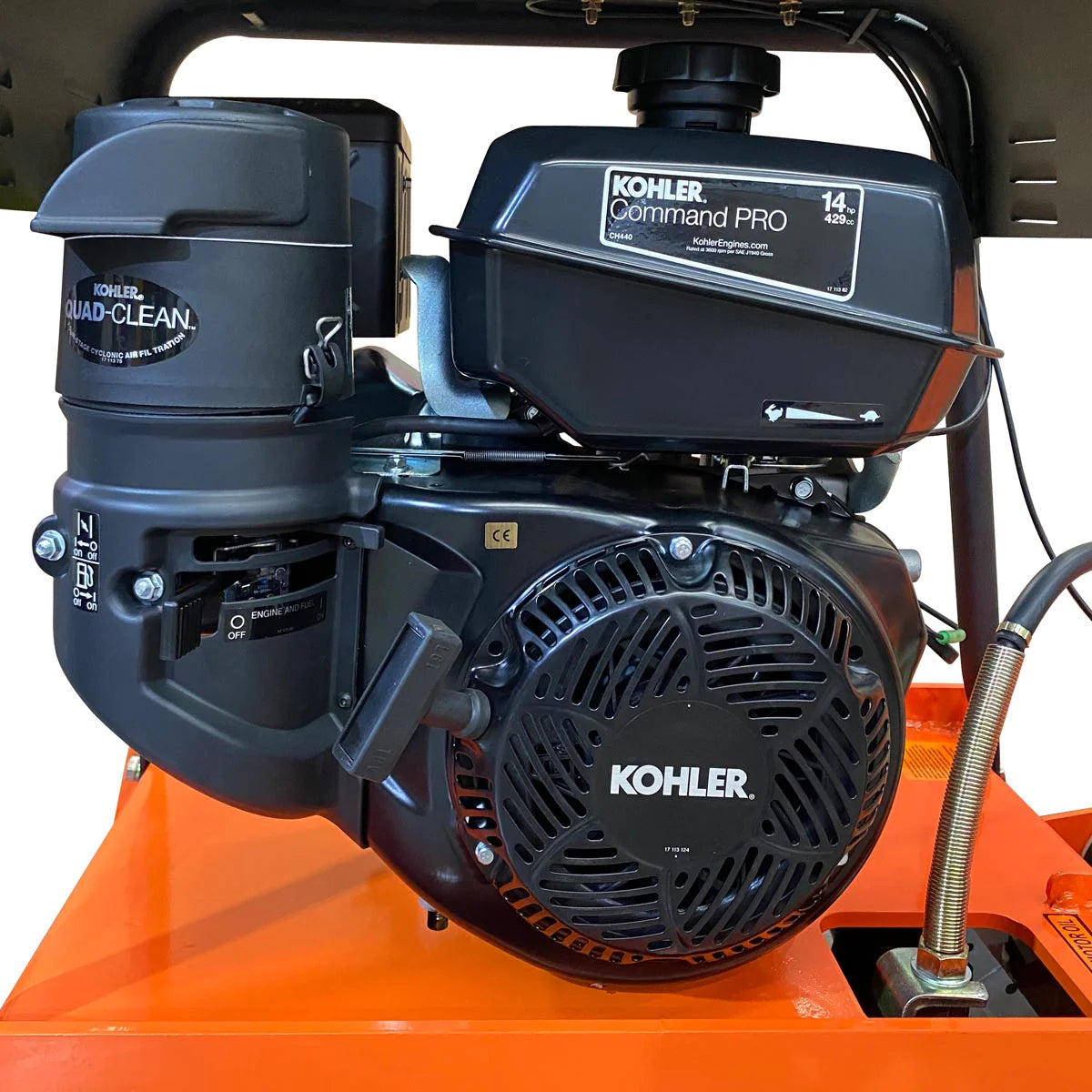

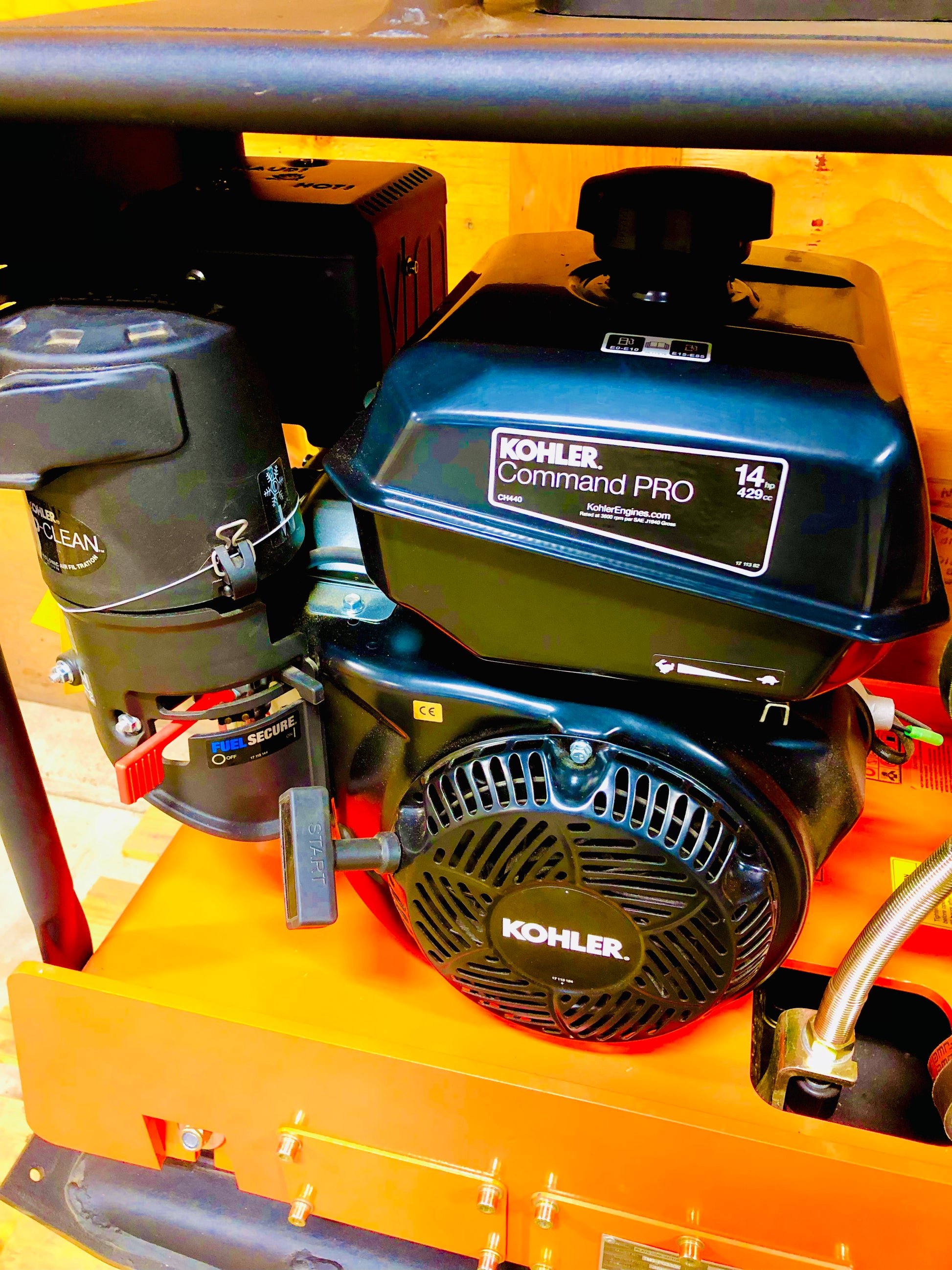

• 14 HP Kohler CH440 Command Pro series engine
• Engine type: 4-cycle, gasoline, OHV, cast iron cylinder liner, aluminum block
• Forged steel crankshaft
• Cast-iron cylinder liner
• Quad-Clean™ all-season four-stage cyclonic air filter - effective engine protection for tough-and-dirty conditions
• Large-capacity fuel tank
• Displacement: 429 cc
• Gross Torque: 30.8 lb/feet
• Oil Capacity: 1.3 US qt
• Emissions compliance: EPA Phase III, CARB Phase III

Shipping Information

• The product is packed in a wooden crate shipping box
• Dimension: 36” x 20” x 45” (L x W x H)
• Shipping weight: 620 lbs

Shipping from Langley BC
