• Handy addition to your farm, contracting business or home operations for the installation of posts, pipe, signs and fencing of all kinds

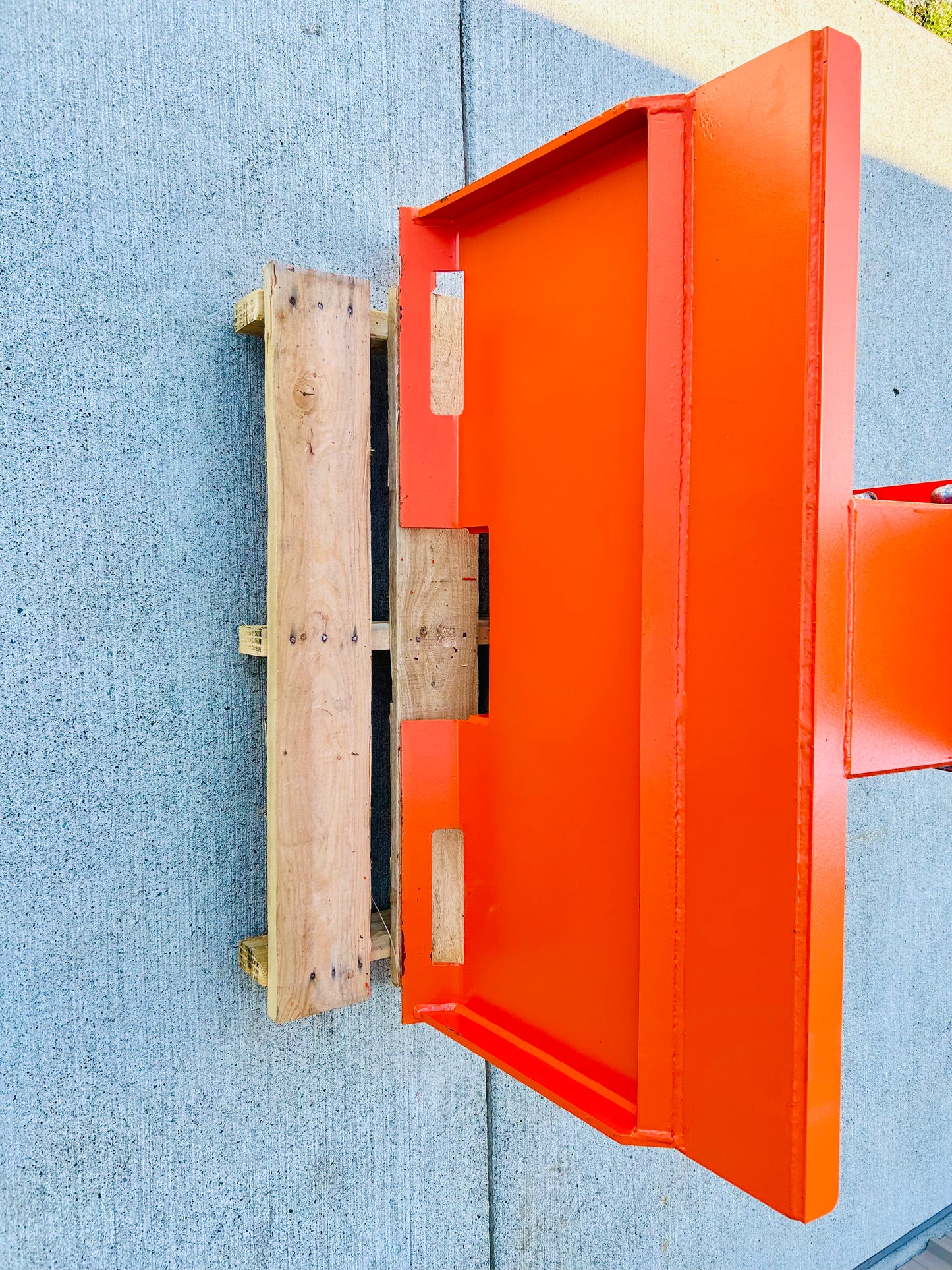

• Bolt-on open-frame mounting plate made of strong, heavy-gauge steel that is easy to attach to your machine and remove for routine maintenance
• Commercial-grade nitrogen power cell housed in the back head of the hammer provides maximum absorption of piston recoil for efficient hammering
• Front head provides support, piston converts kinetic energy to pounding and the cylinder contains a hydraulic circuit for piston reciprocation
• Continuous vibratory driving mode with a 500-900 BPM work rate evenly transfers energy downward into the object being hammered

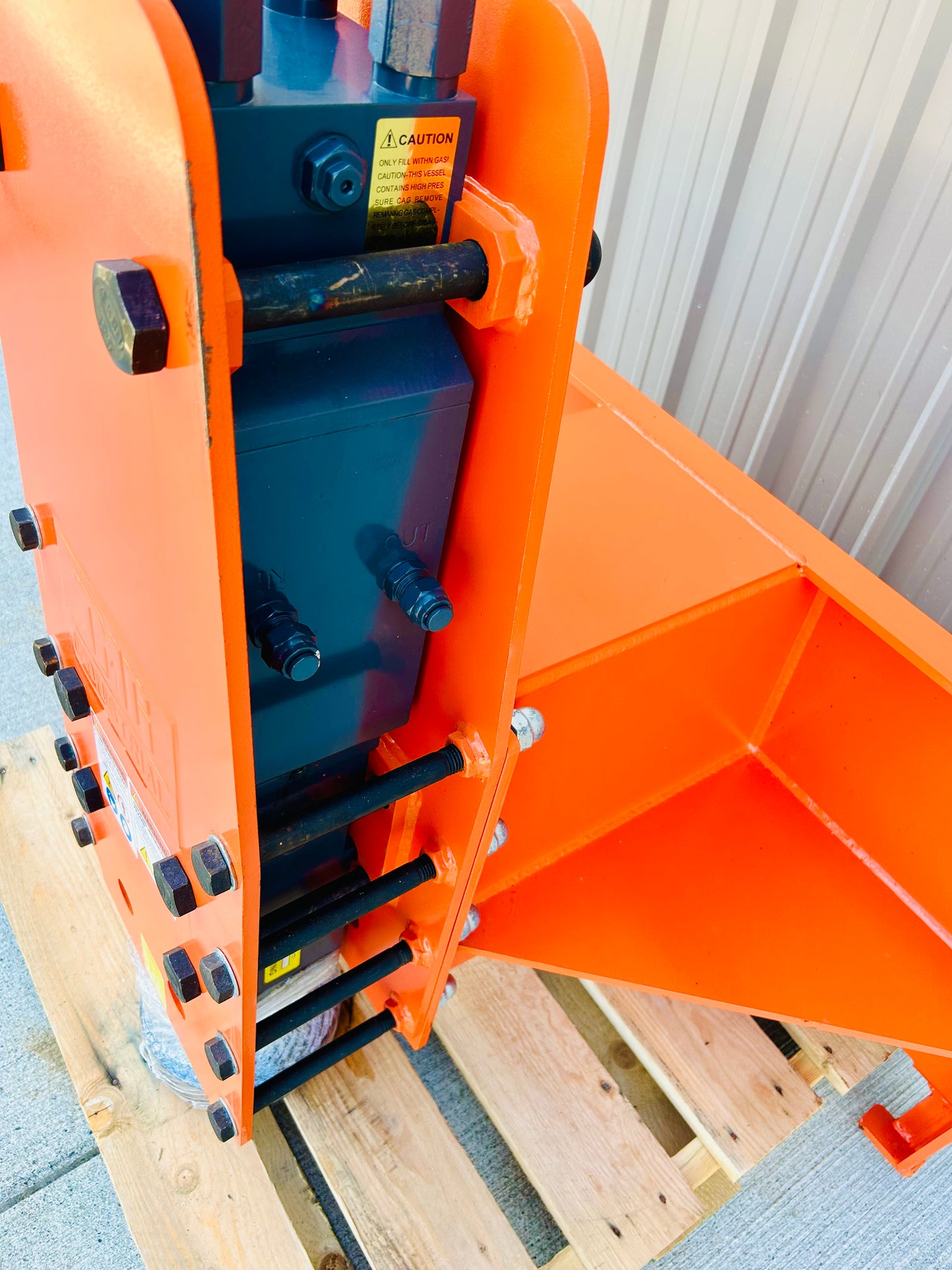

• 1100 lb industrial steel construction with four through bolts that tightly affix the hammer’s front/back head and cylinder together
• High strength steel driving cup can accommodate posts up to 8” in diameter and effectively transfers the pounders 700 ft-lb energy capacity

• Operating weight: 1100 lb
• Energy class: 700 ft-lb
• Skid steer lifting capacity required: 1500 lb
• Skid steer power recommended: 30-70 HP
• Hydraulic flow: 9.5-16 GPM
• Working pressure: 1600-2000 PSI
• Chisel shaft diameter: 68mm
• Pounding rate: 500-900 BPM
• Steel plate frame: ¾”
• Driving cup inside size: 8” diameter
• Hydraulic hose: ½” diameter
• Universal skid steer quick attach mount

Accessories:

• (1) Service toolbox kit
• (2) ½” Hydraulic hoses and flat face couplers included
• (1) Nitrogen charge kit with CGA580 cylinder adaptor
  • *Nitrogen does not come charged due to shipping protocols

Shipping Information

• This product is packed in a metal crate shipping box
• Shipping dimension: 44” x 38” x 45” (L x W x H)
• Shipping weight: 1200 lb
