SHIPPING INCLUDED to eligible Manitoulin, Bandstra & ACE Courier terminals in BC, AB, SK, MB & ON. Some exclusions apply.

Canada-wide shipping available. Contact us for a quote.

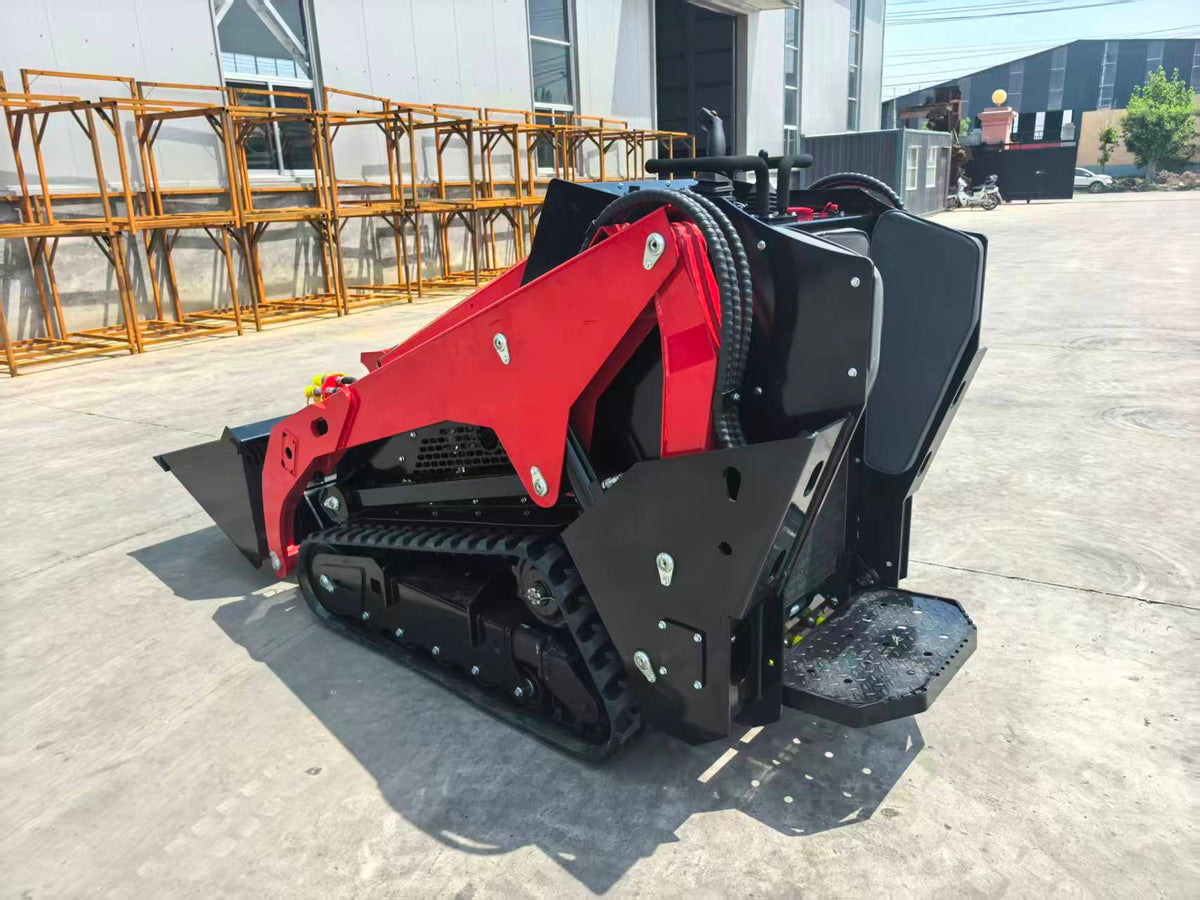

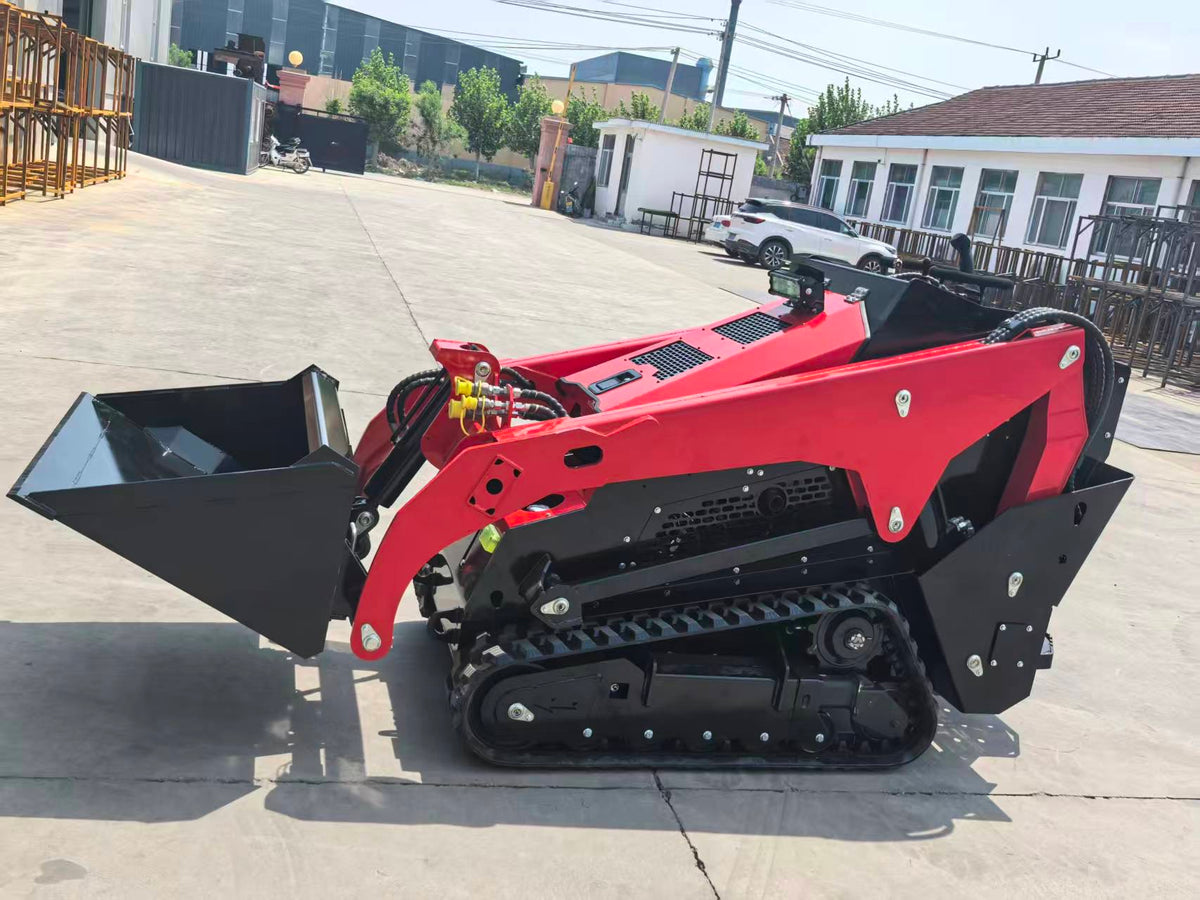

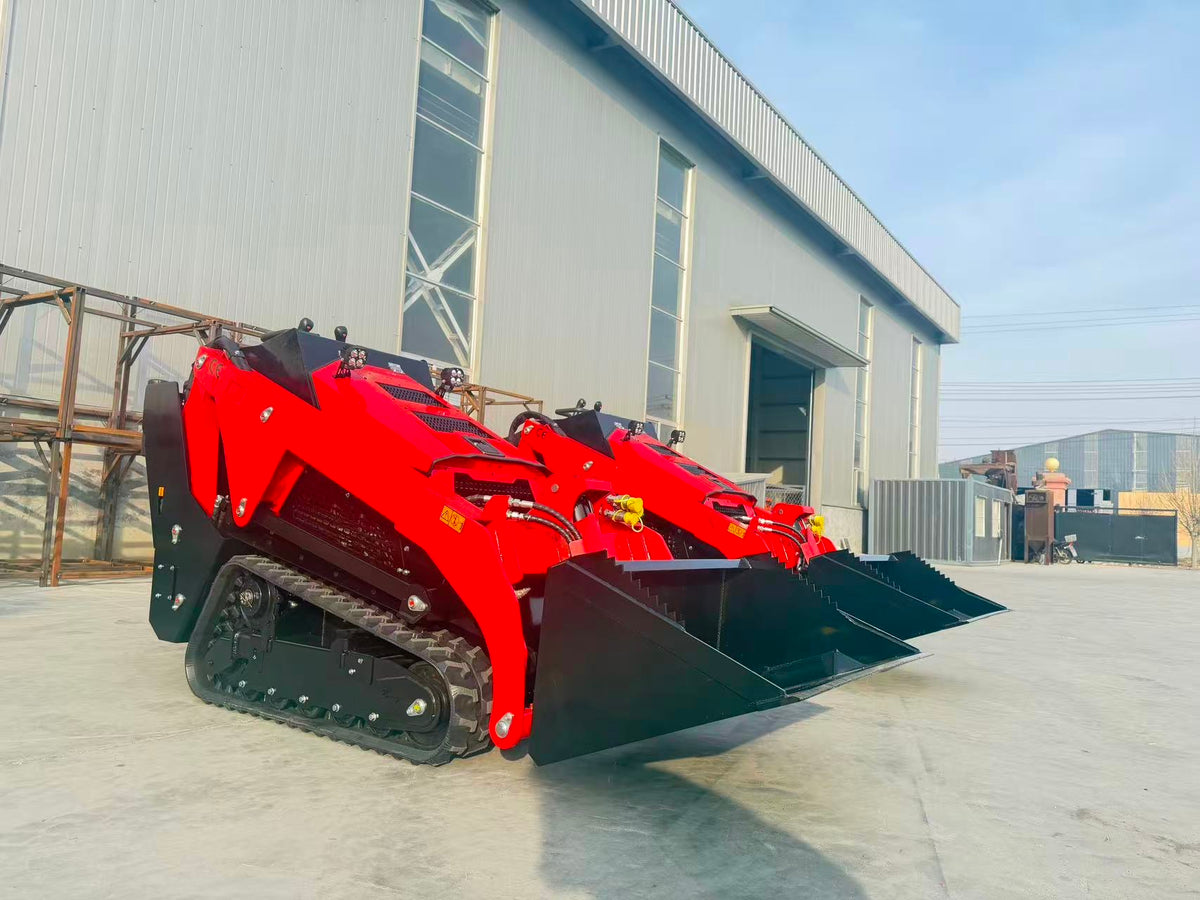

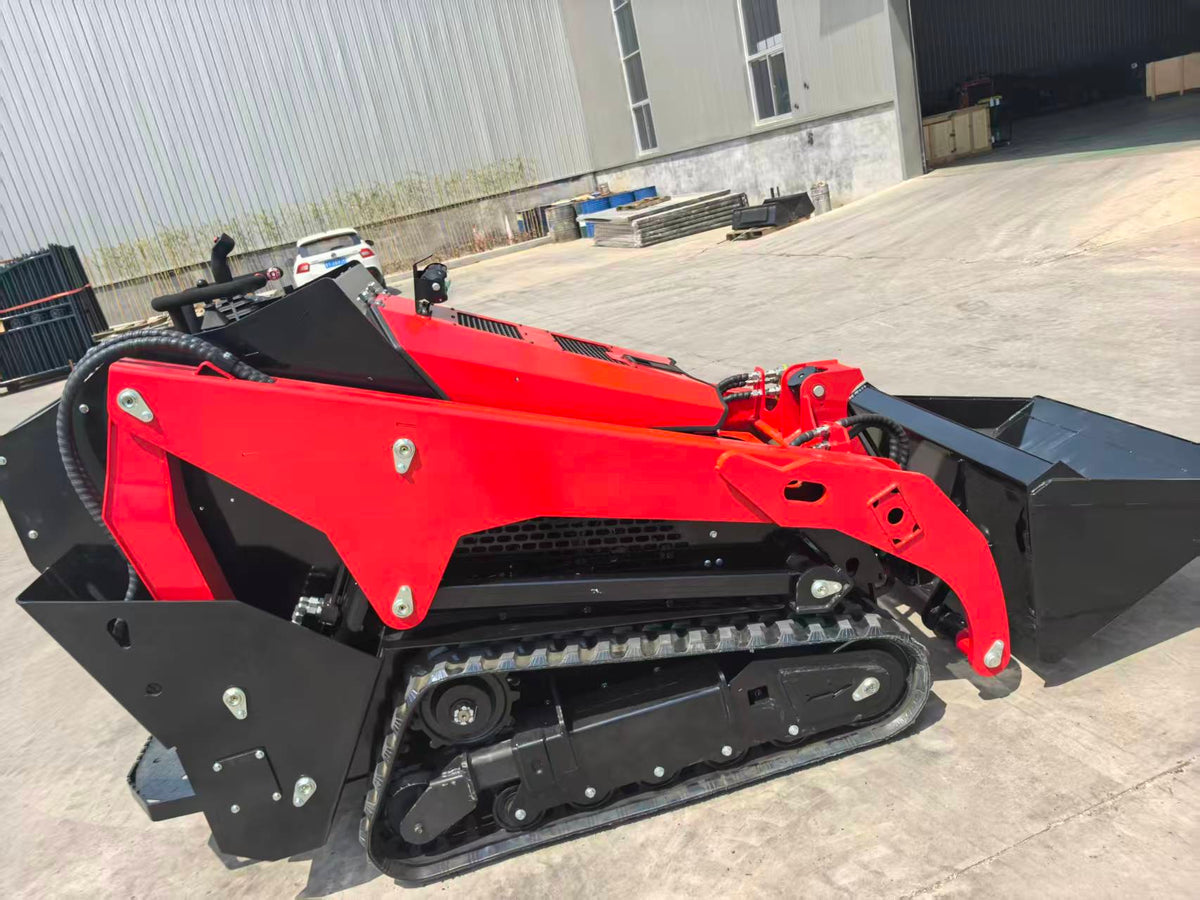

The SL1050K Mini Track Loader features a reliable 24.4 HP Kubota diesel engine, rubber tracks and auxiliary hydraulics. With a compact 39.5” overall width, it’s ideal for landscaping, construction, farming, property maintenance and working in confined spaces.

Engine Specifications

• Engine: Kubota D1105-E4
• Engine Type: 3-cylinder diesel
• Horsepower: 24.4 HP
• Rated Engine Speed: 3,000 RPM
• Fuel Tank Capacity: 20 L

Hydraulic System

• Auxiliary Hydraulic Flow: 33–48 L/min (8.7–12.7 GPM)
• Working Pressure: 18 MPa (2,610 PSI)
• Hydraulic Oil Capacity: 22 L
• Hydraulic Pump: Load-sensing system
• Hydraulic Valve: Load-sensing valve

Operating Specifications

• Operating Weight: 3,300 lbs (1,497 kg)
• Maximum Lift Height: 112”
• Maximum Dump Height: 92.5”
• Dump Reach: 37.5”
• Bucket Width: 39”
• Bucket Capacity: 0.2 m³
• Maximum Travel Speed: 4.5 km/h
• Maximum Gradeability: 30° (manufacturer-listed)

Machine Dimensions

• Overall Length: 118”
• Overall Width: 39.5”
• Overall Height: 60”
• Ground Clearance: 3”
• Rubber Track Width: 8”

Features

• Kubota diesel engine
• Rubber track undercarriage
• Auxiliary hydraulic connections
• Manual quick-attach coupler
• Compact stand-on design
• Suitable for a variety of compatible attachments

Specifications are based on published manufacturer-supplied information and are subject to verification.
