Price Includes Shipping to any Manitoulin Transport Terminal in BC, AB, SK, MB, ON

We can arrange shipping Canada Wide

Technical Data:

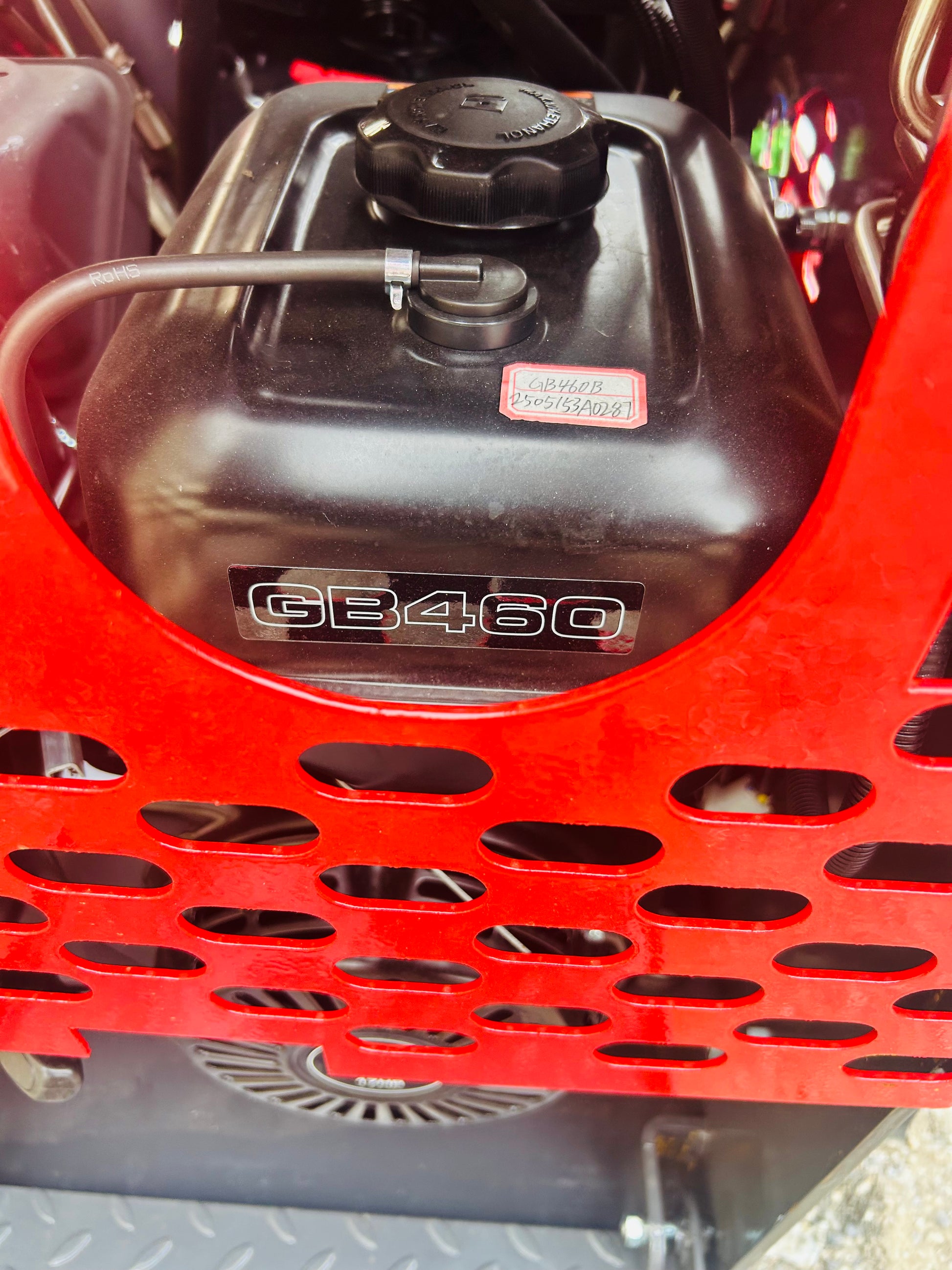

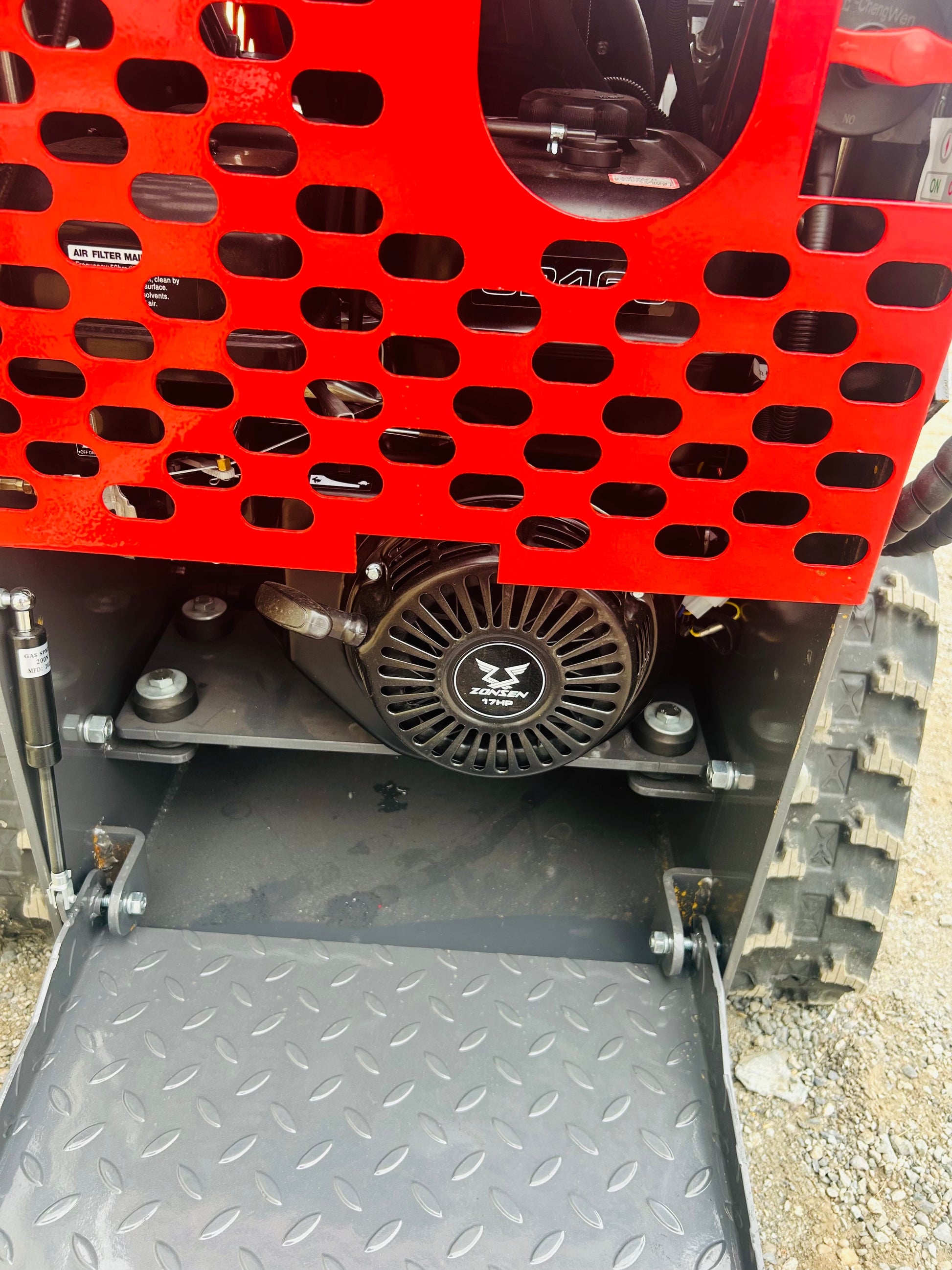

• Engine: Rato
• Horse Power: 15 hp
• Max Angle: 30 Degree
• Stable 6" track width
• Starting Mechanism: Electric Start
• Cooling System: Air-cooled
• Cylinders: Single-cylinder
• Displacement: 420 cc

Performance:

• Operating Load: 660 lbs
• Maximum Lift Capacity at Maximum Height: 828 lbs
• Travel Speed: 3.7 km/h
• Maximum Dumping Height: 61.6 inches
• Unloading Distance: 17.5 inches
• Maximum Angle of Operation: 30 degrees

Hydraulic System:

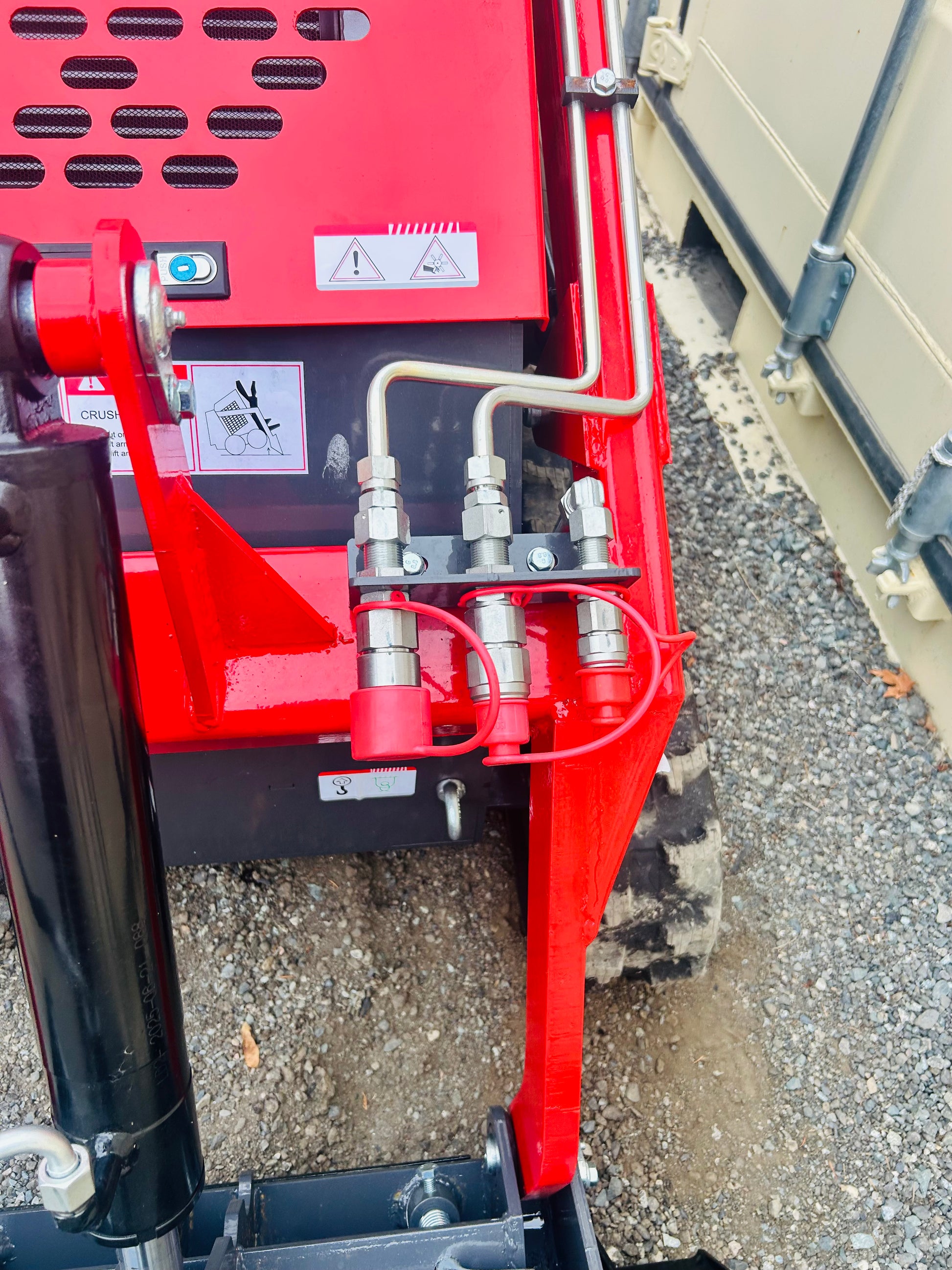

• Auxiliary Hydraulics: Yes
• System Pressure: 17 MPa

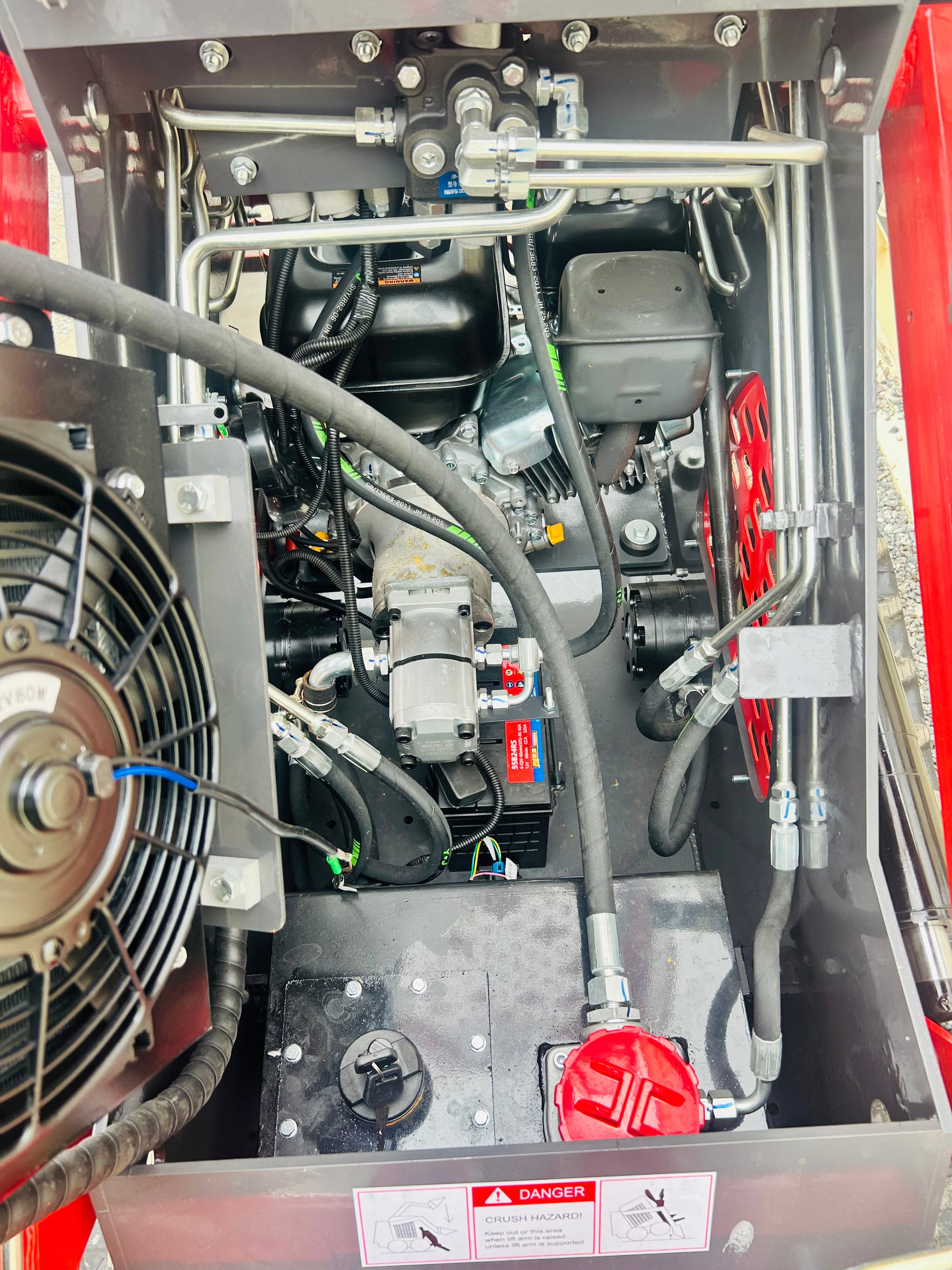

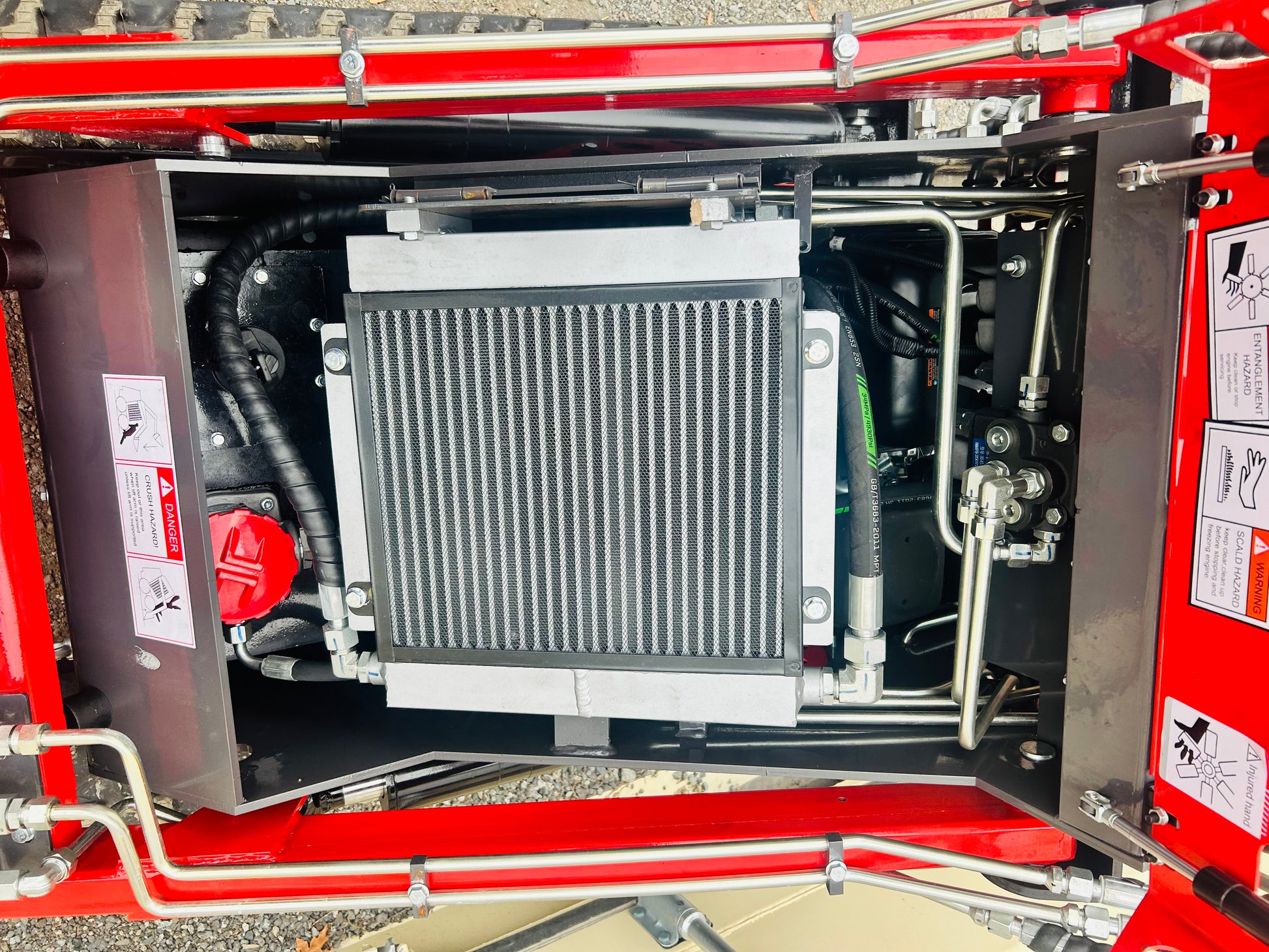

• Hydraulic Oil Cooler: Equipped
• Dimensions:
• Machine Dimensions Without Bucket: 58 in. (Length) x 36.5 in. (Width) x 53 in. (Height)
• Machine Dimensions With Bucket: 76 in. (Length) x 39.25 in. (Width) x 53 in. (Height)

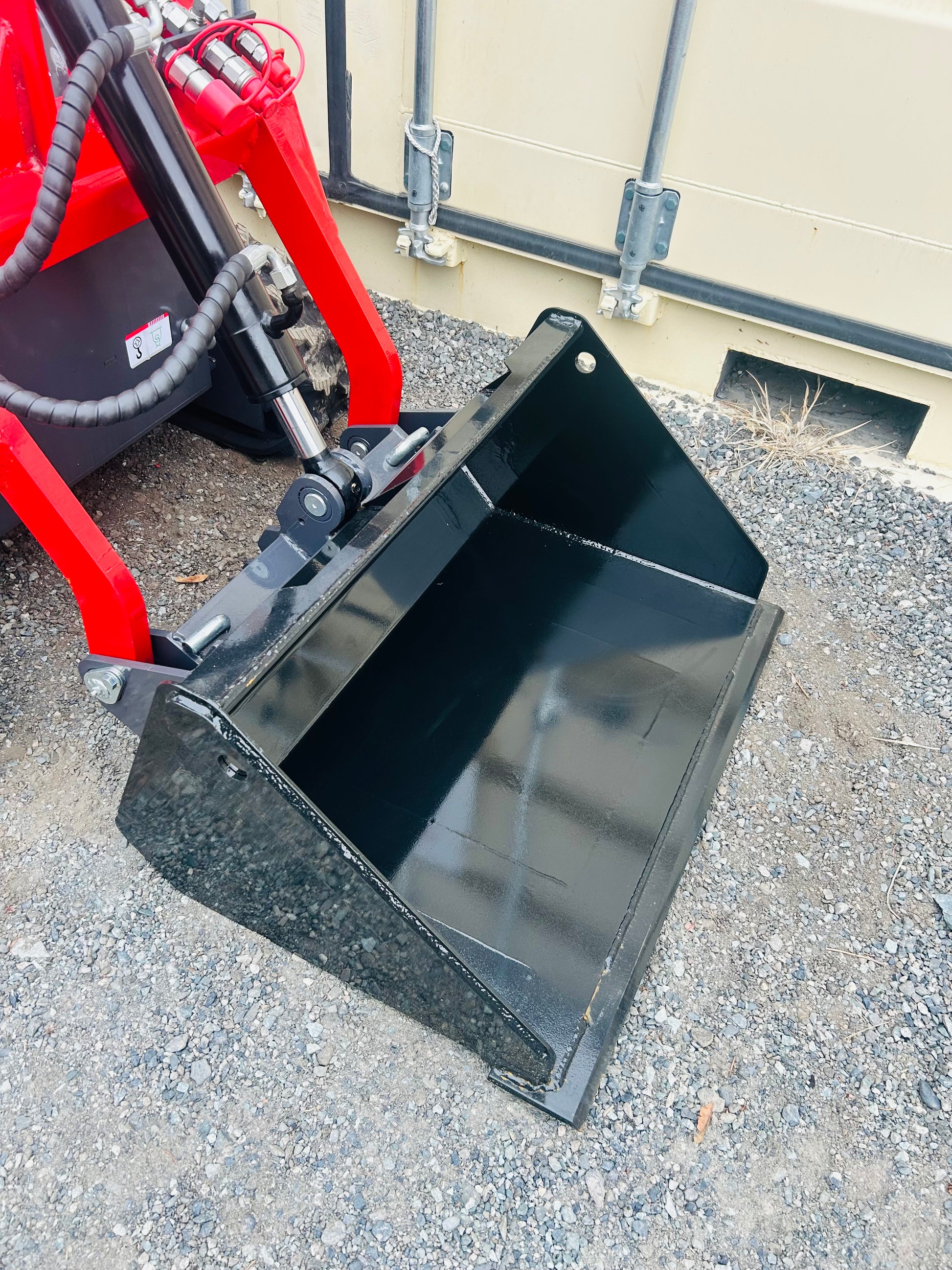

• Bucket Width: 39.25 inches

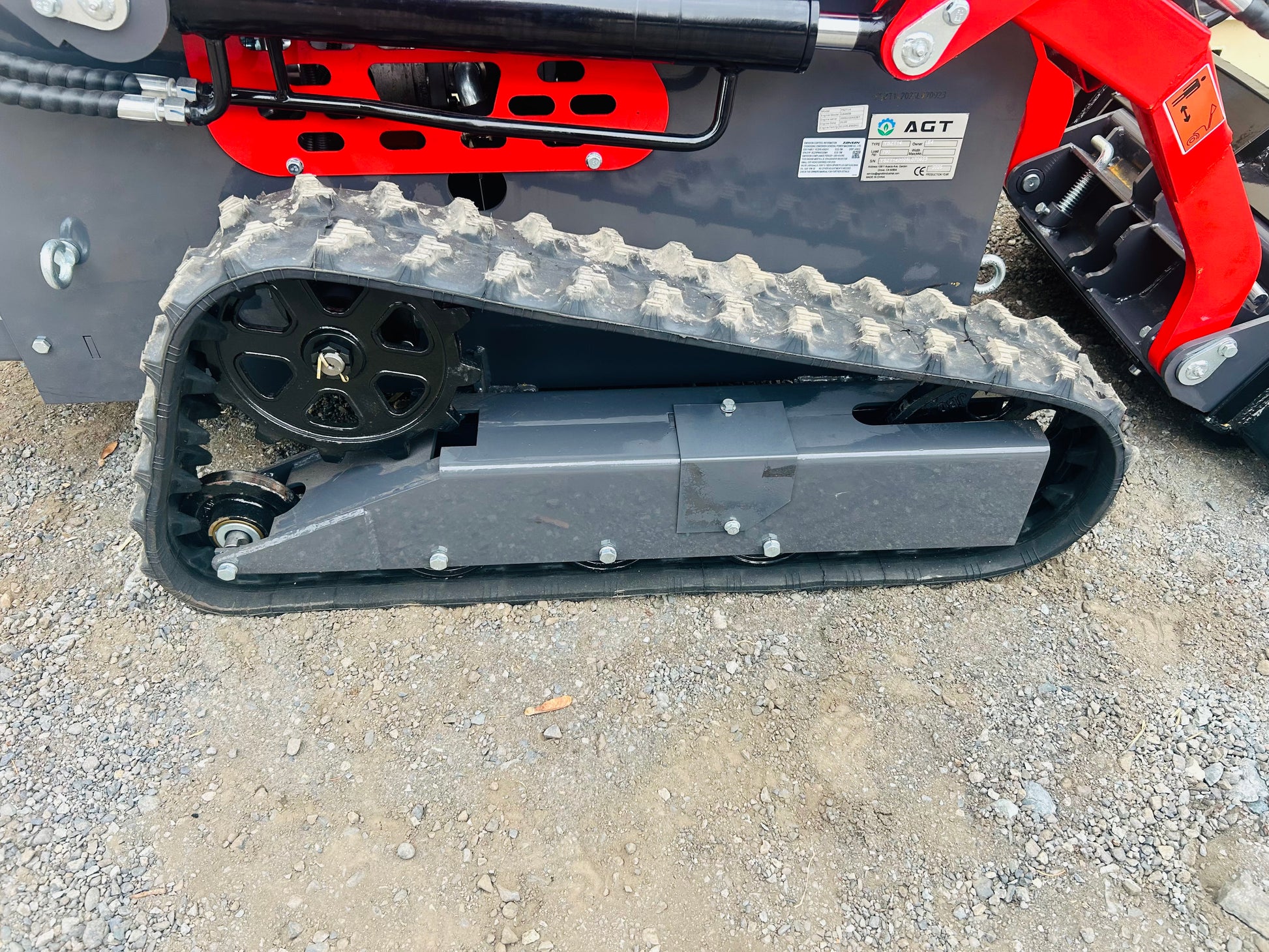

• Track Dimensions: 44 in. (Length) x 6 in. (Width) x 19.75 in. (Height)
• Track Width: 6 inches

Weight:

• Operating Weight: 1,477 lbs

Additional Features:

• Attachments: Standard bucket with quick-attach system; compatible with various attachments

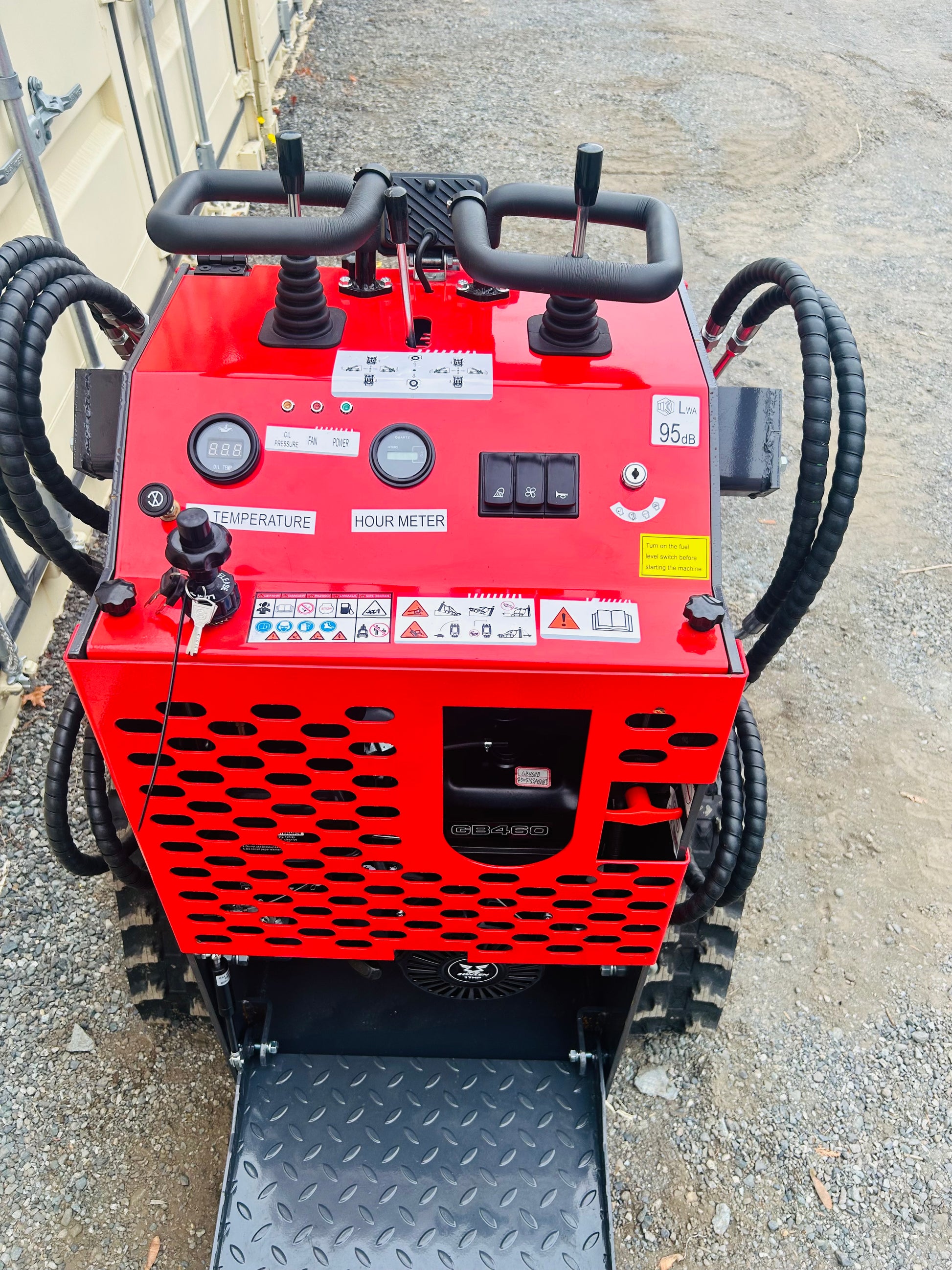

• Controls: Hand-operated bucket control
• Operator Station: Stand-on platform
