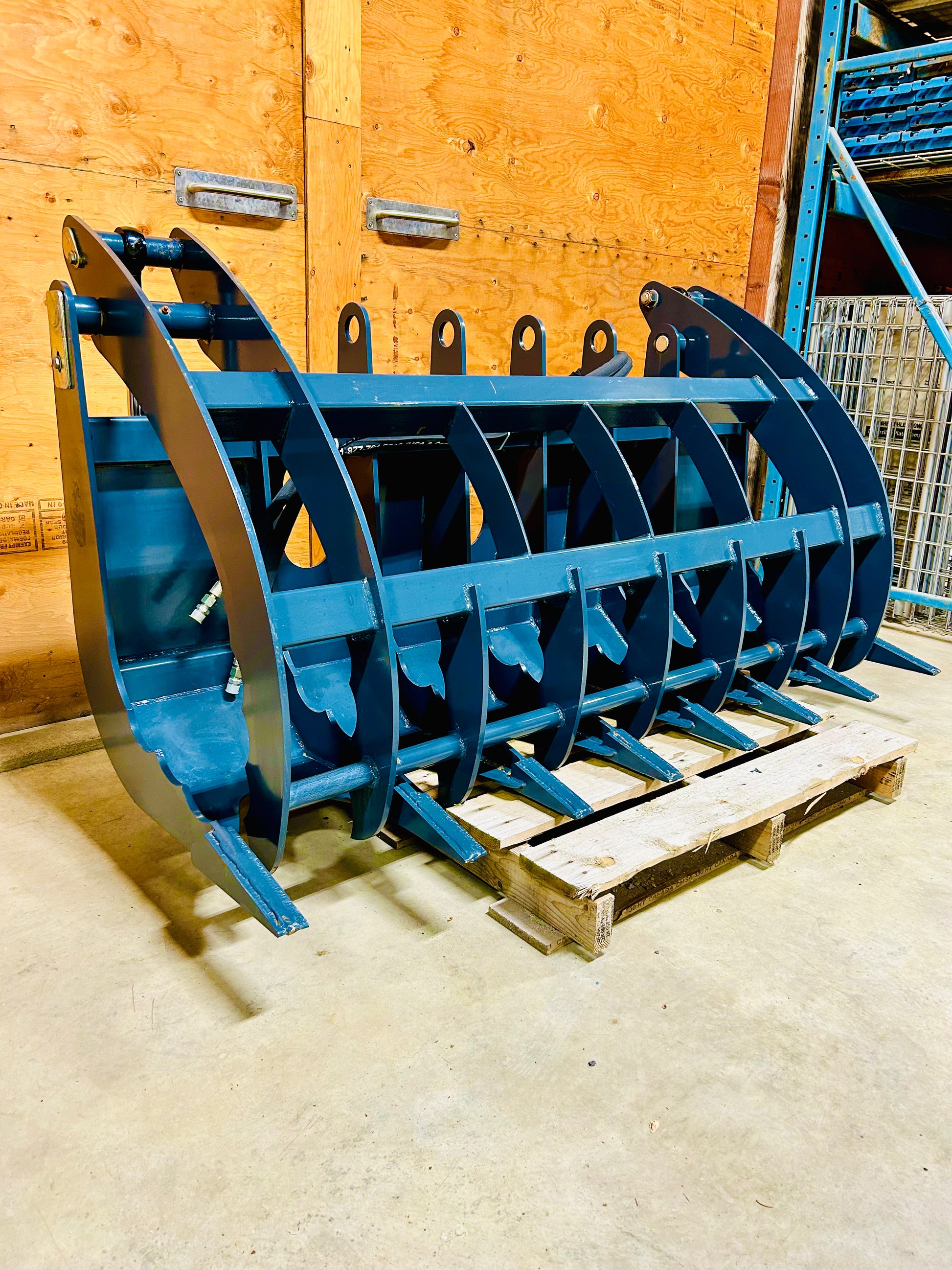

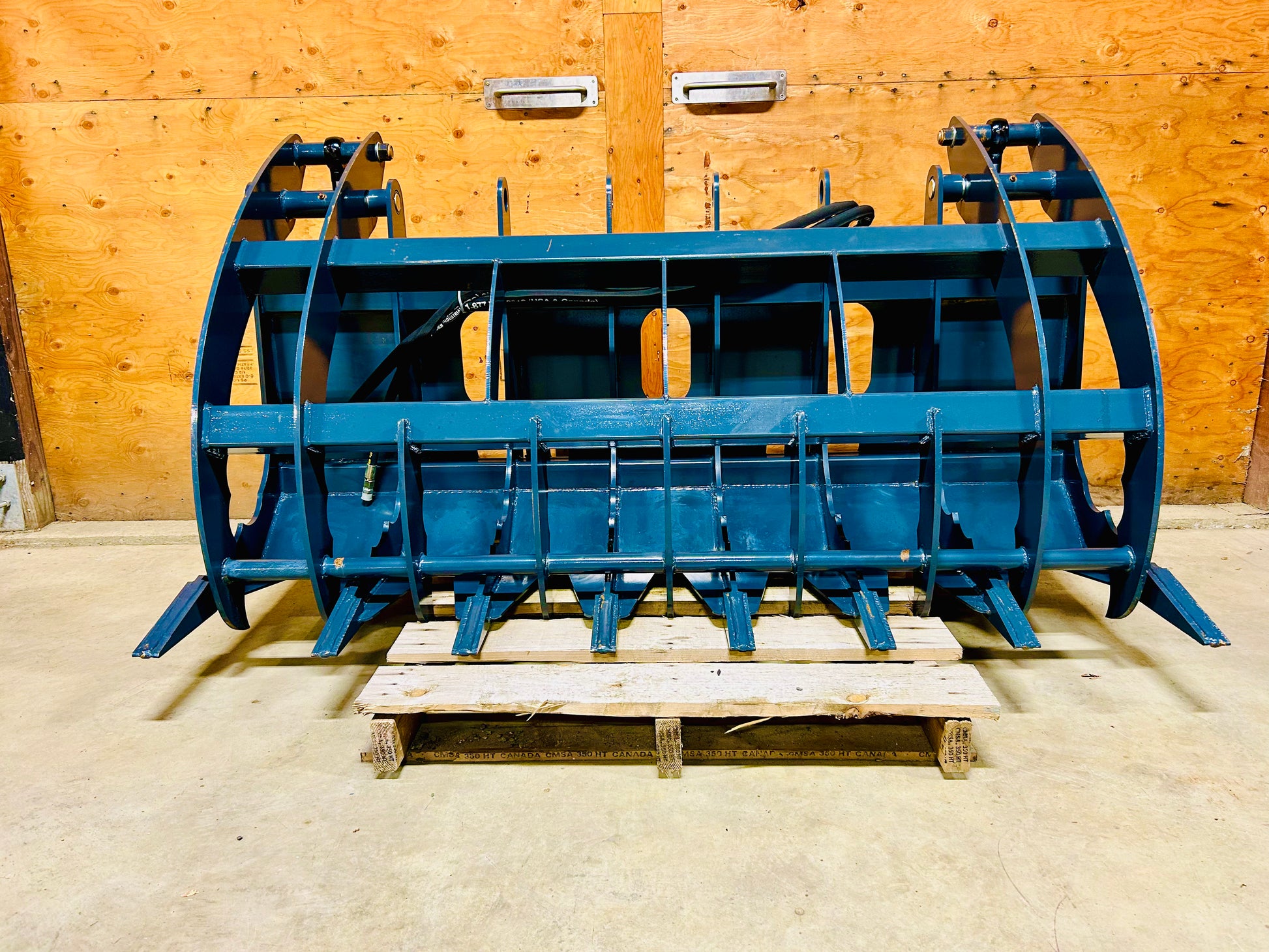

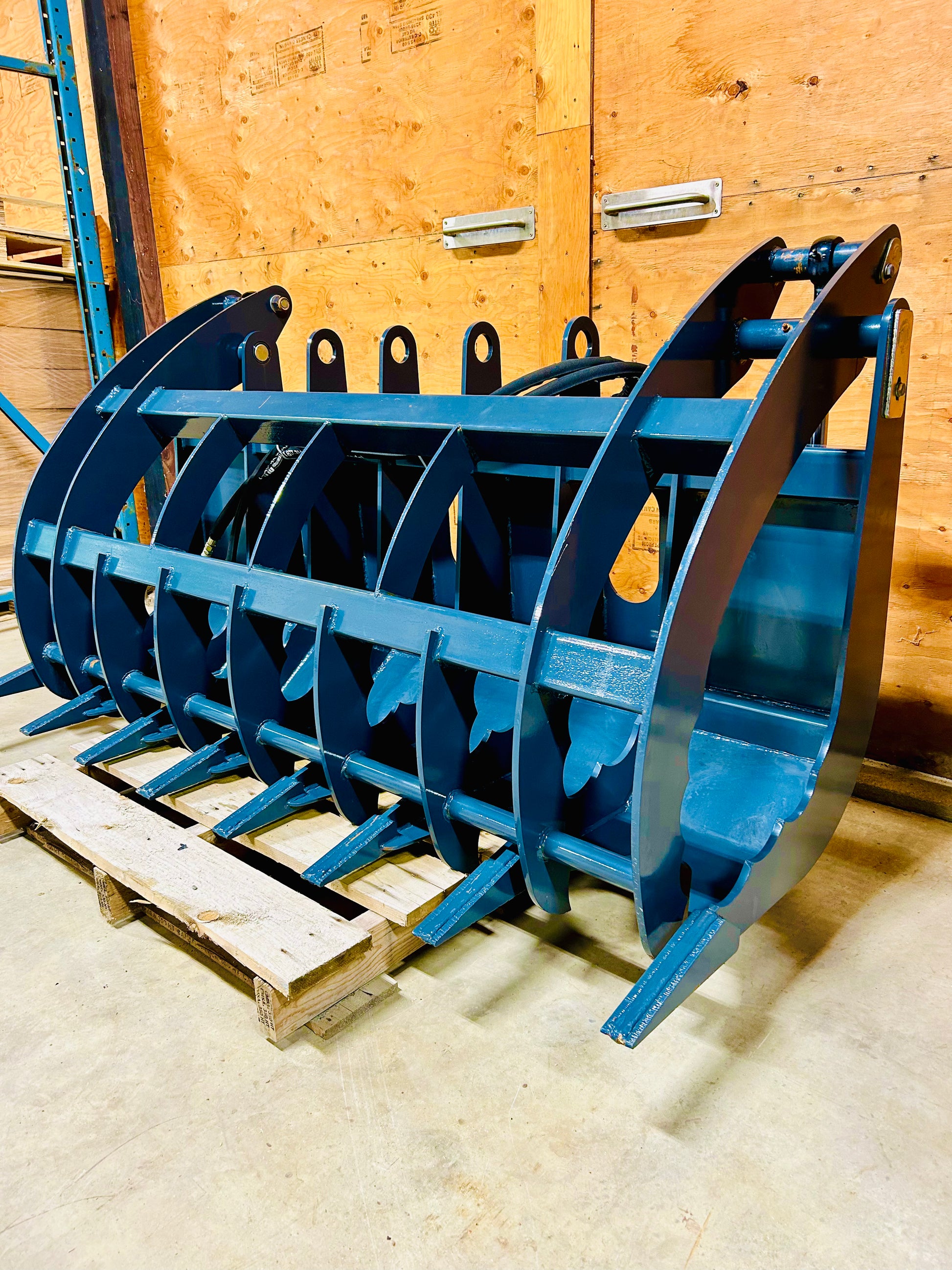

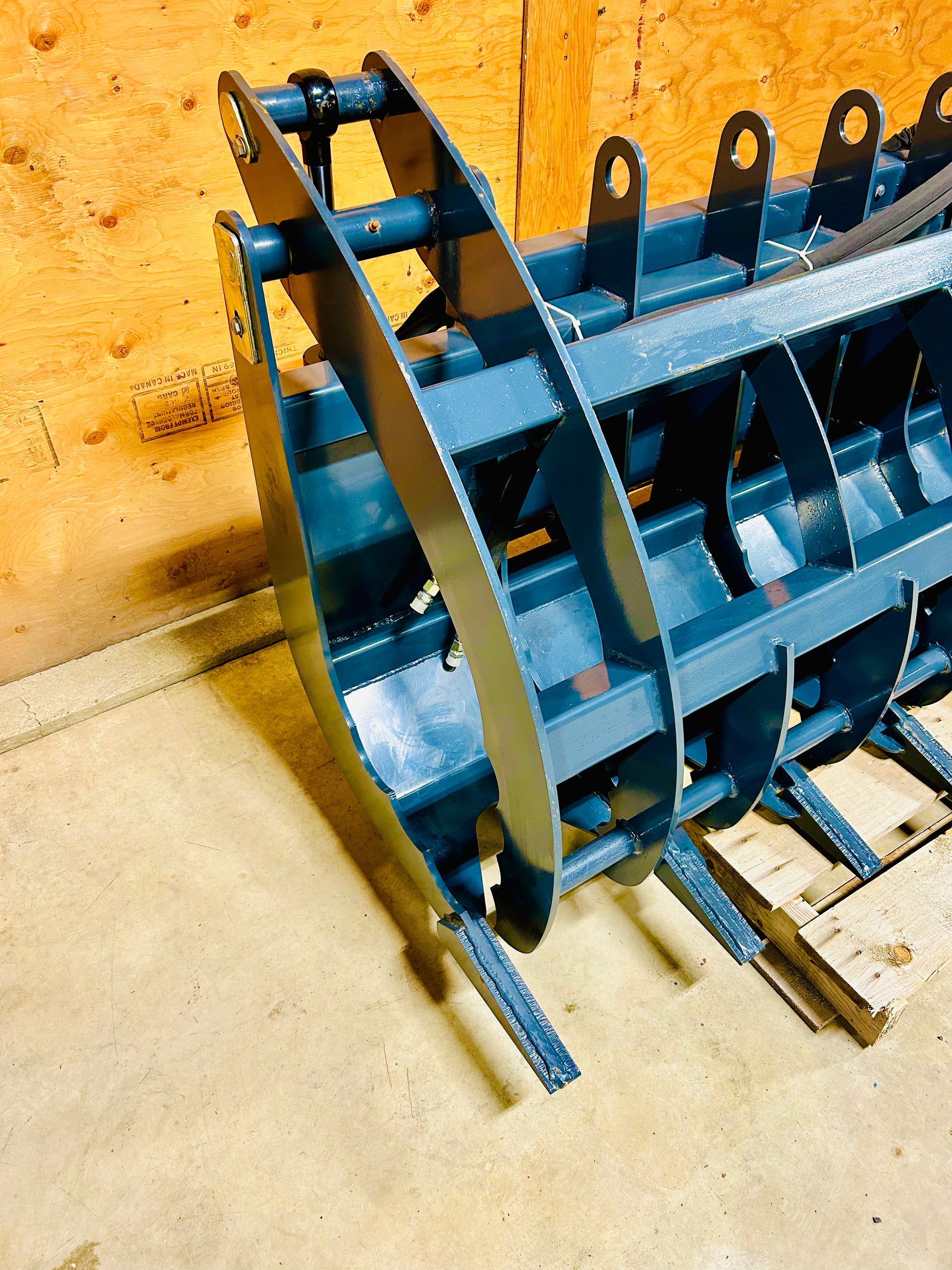

Premium New 72” Skid Steer Root Rake Grapple Attachment, Universal Mount, 53” Jaw Opening, 9” Tine Spacing, 3000 lb Weight Capacity

Premium New 72” Skid Steer Root Rake Grapple Attachment, Universal Mount, 53” Jaw Opening, 9” Tine Spacing, 3000 lb Weight Capacity

Regular price $3,999.00 CAD
Regular price $4,999.99 CAD Sale price $3,999.00 CAD
Sale Sold out
Place Order / Contact Us

Plus Shipping and Tax



Features

• Grapple capacity up to 3000 lb to handle jobs in forestry, recycling, scrap yards, construction, agriculture and more
• 72” of working width and open end design allows you to work with varying sizes of logs, brush, roots and awkward debris

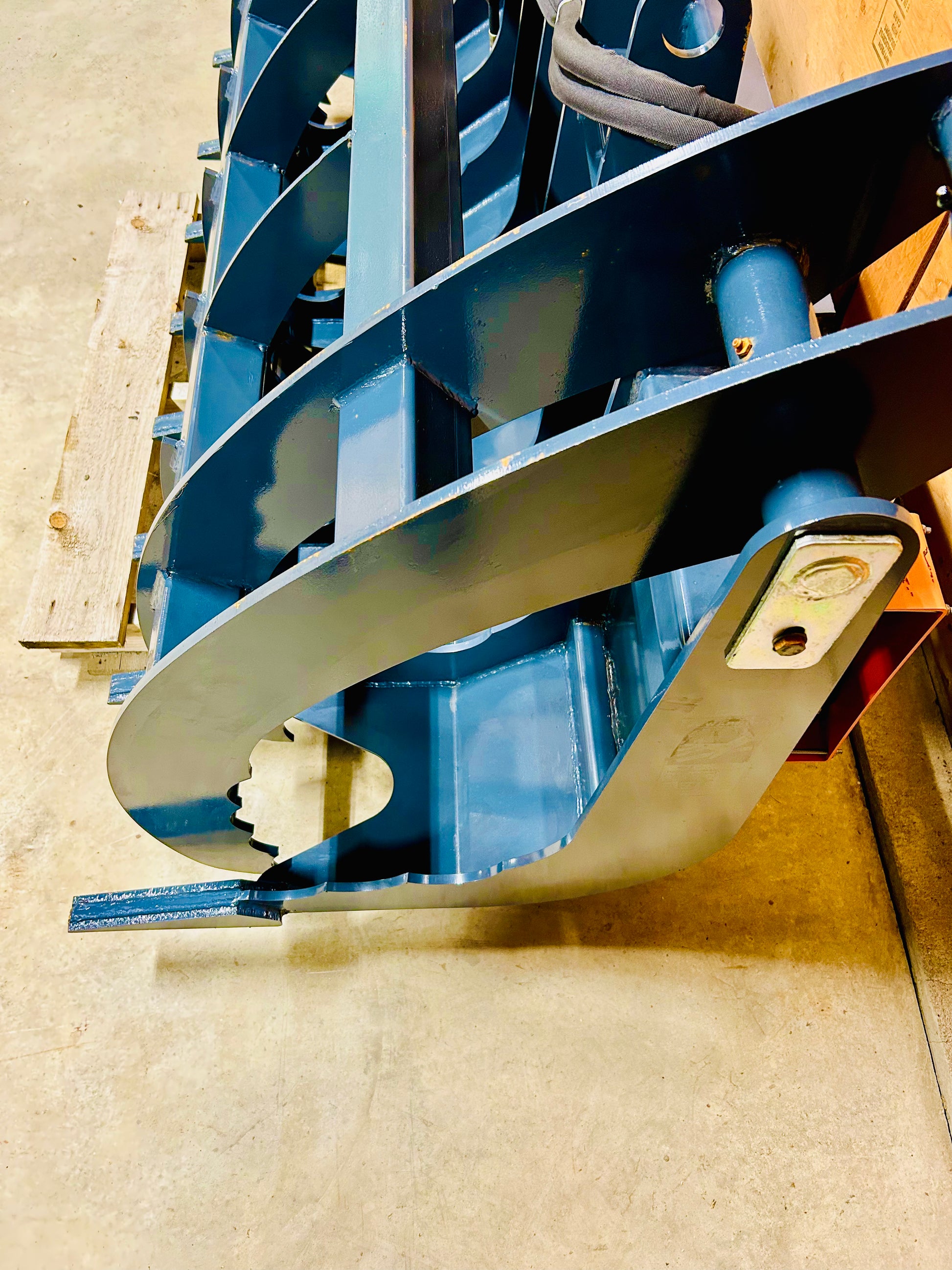

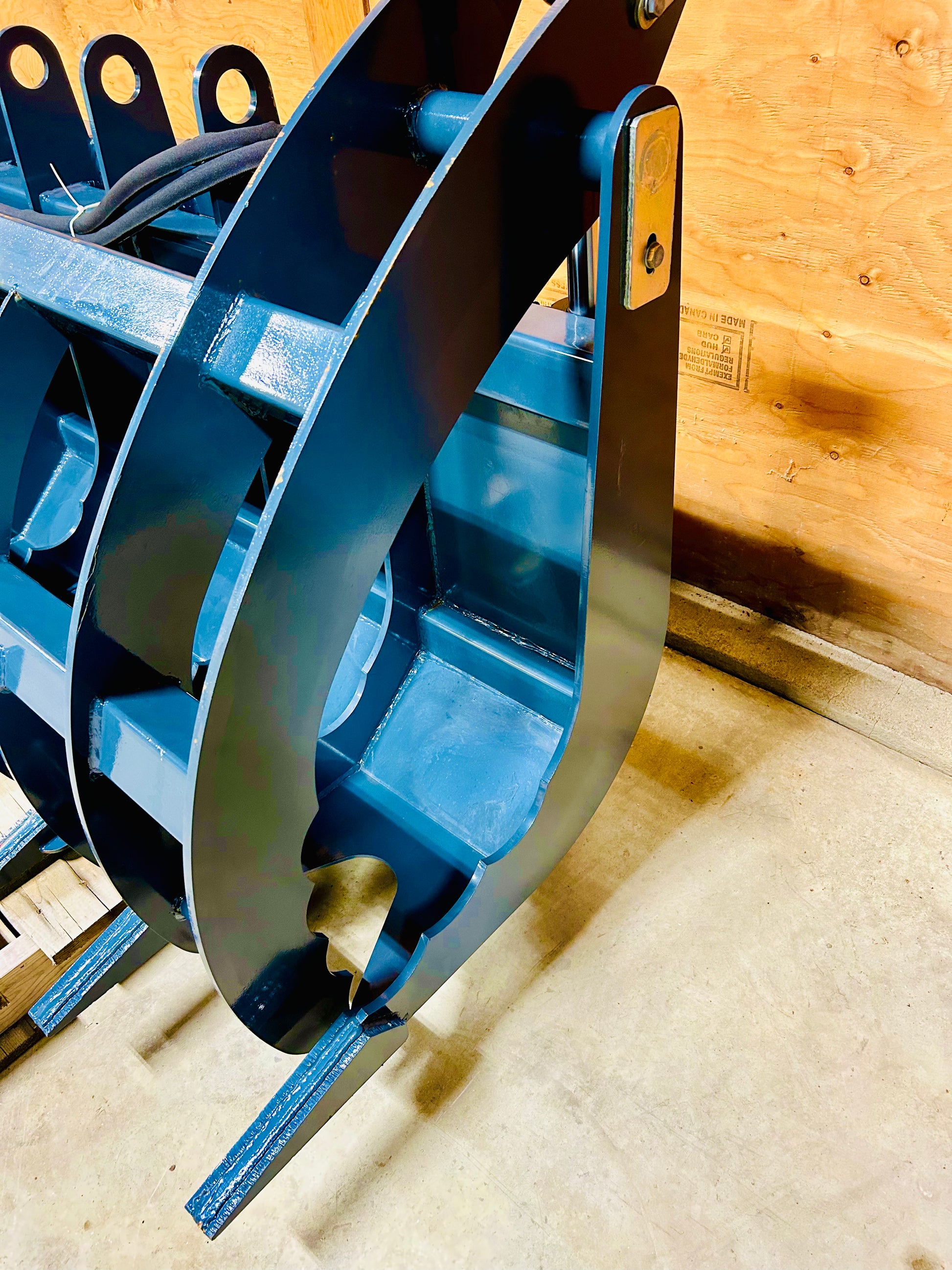

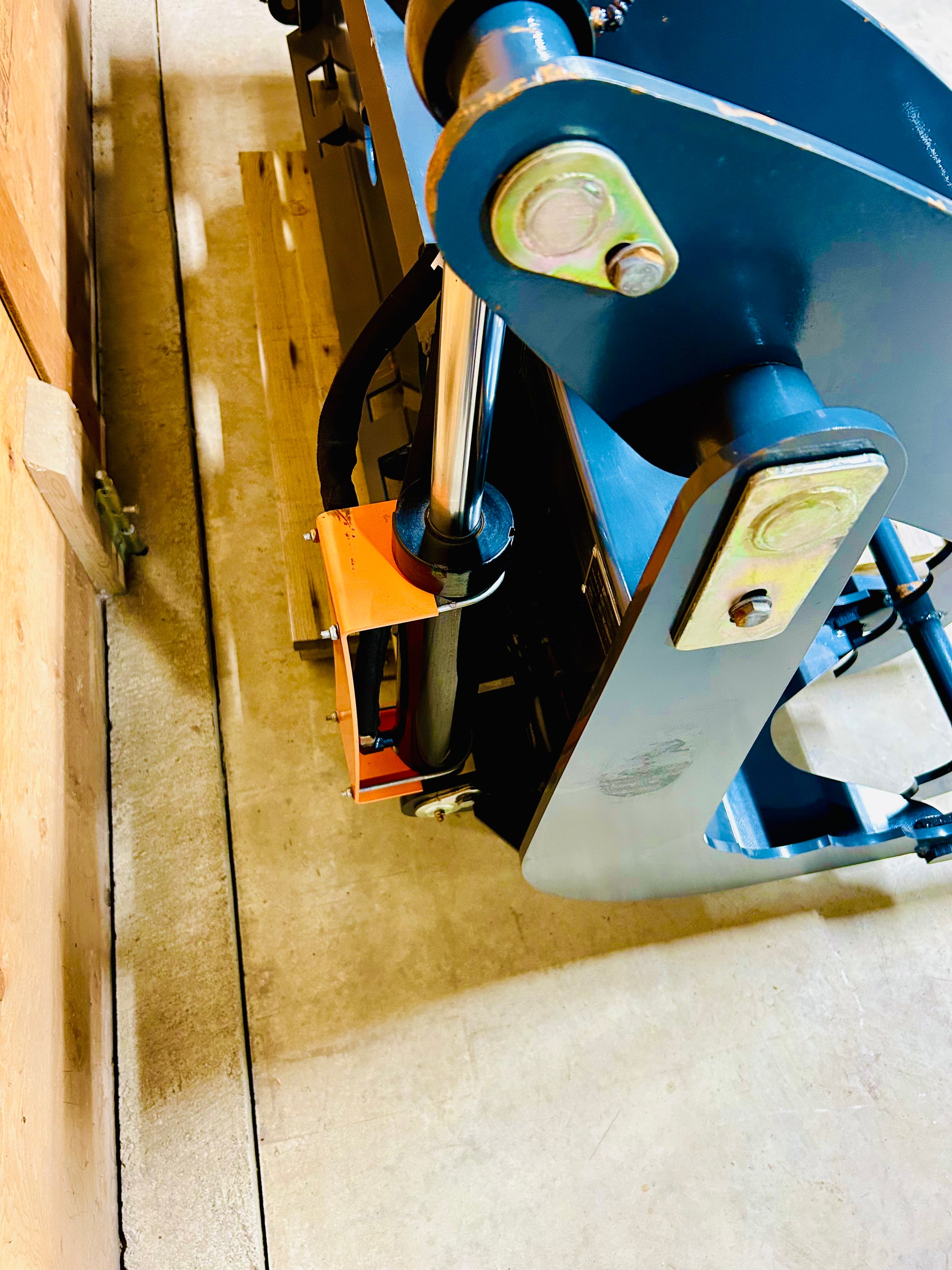

• Twin hydraulic cylinder grapple arms (with guards) operate under 3000 PSI of pressure for a heavy-duty working capacity

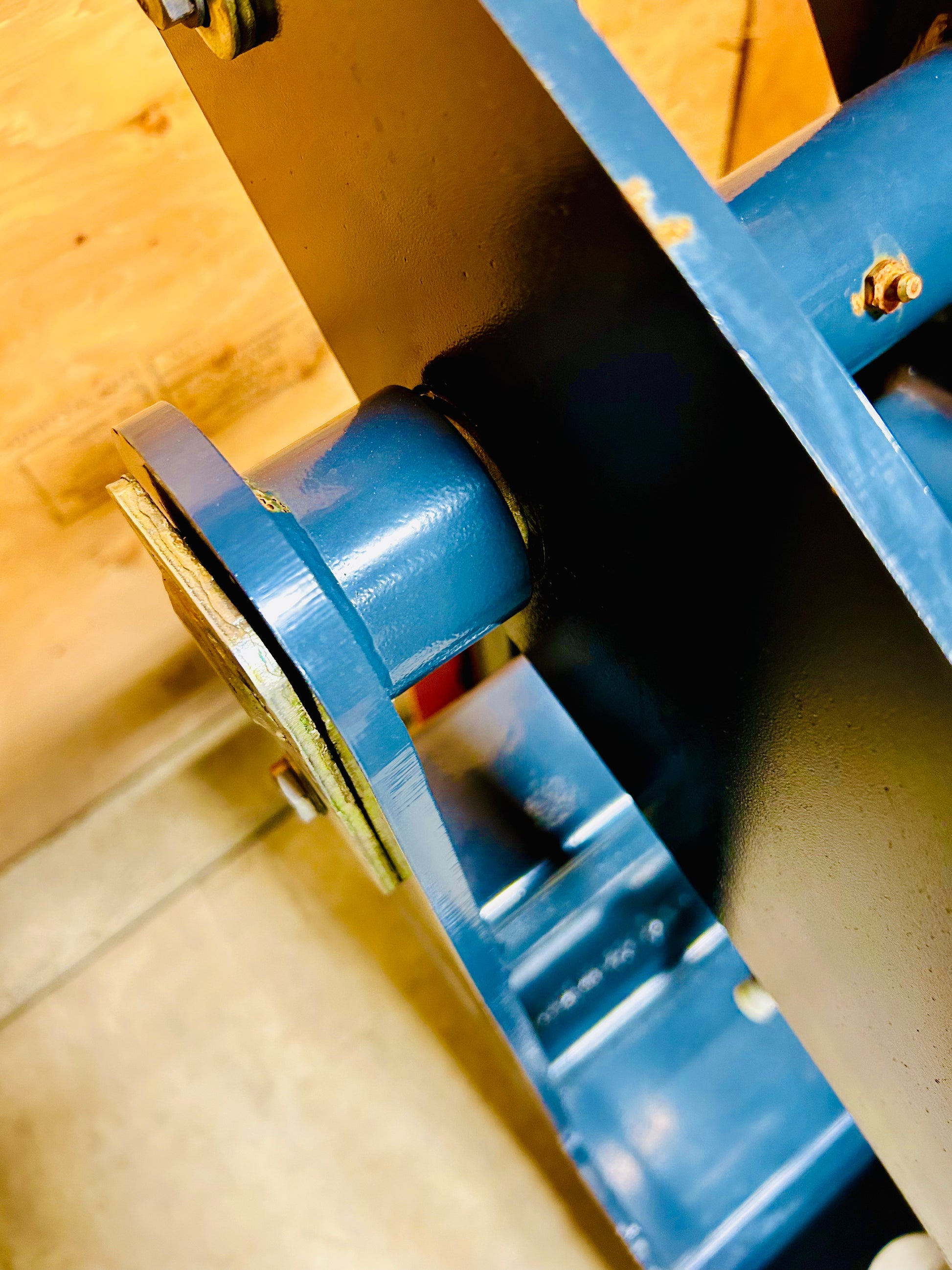

• Greasable pins with bolt-locked design for simple routine maintenance that ensures this attachment’s long-lasting lifespan and dependability

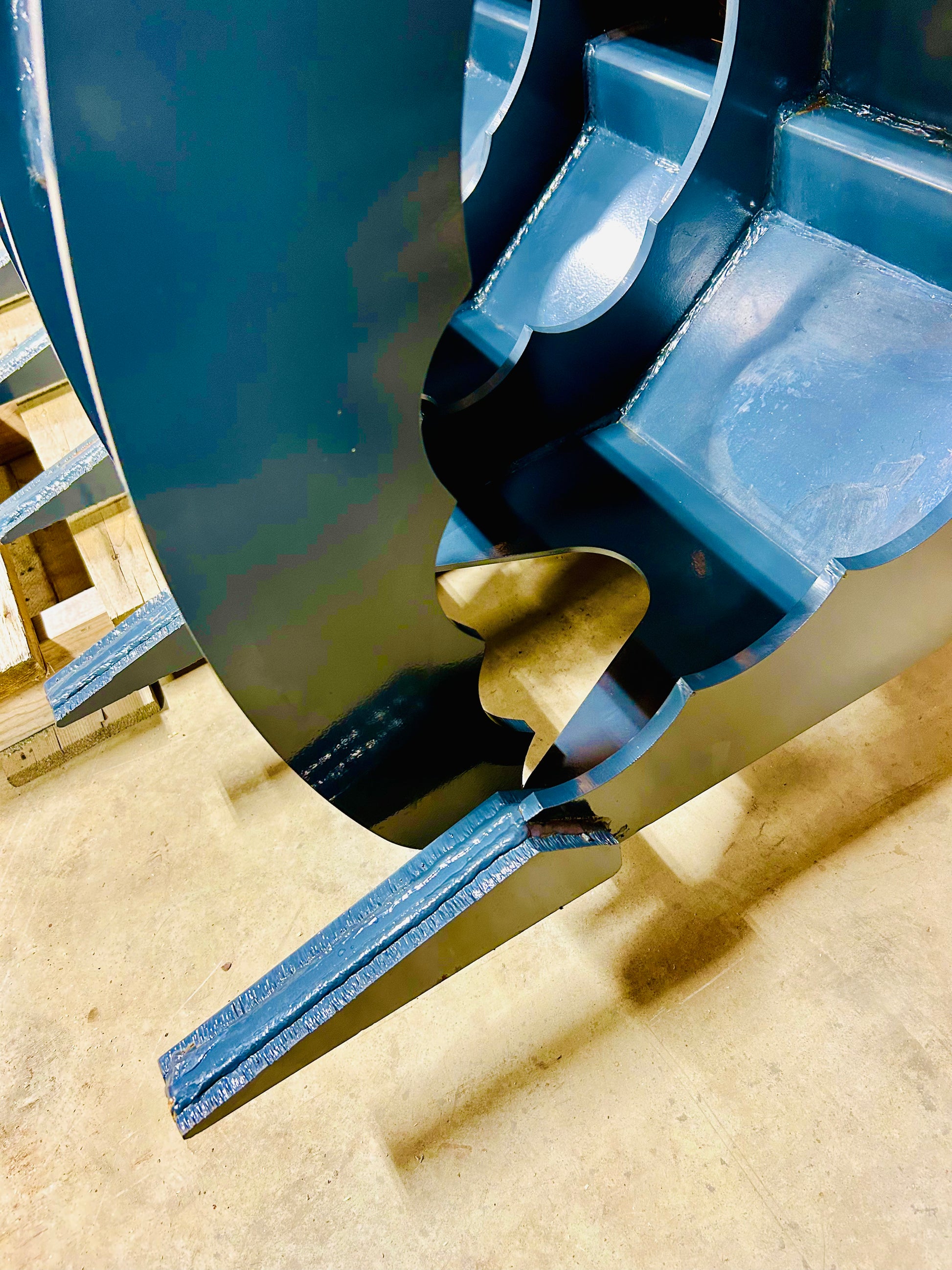

• Reinforced weld-on curved teeth slide effortlessly across the ground, picking up debris while leaving the surface undisturbed
• Included hydraulic hoses for simple hookup and efficient energy transfer between the grappler and skid steer
• Universal mount that will fit most skid steers, turning it into a multi-use, versatile jobsite asset that is strong and reliable

Specifications

• Compatible with 40-70 HP skid steers
• Operating weight: 950 lb
• Overall dimension: 72” (L) x 34” (W) x 38” (H)
• Working width: 72”
• Grapple capacity: 3000 lb
• Number of teeth: 8
• Teeth material: Mn400 steel
• Teeth width: 1-¾”
• Tine spacing: 9”
• Grapple arm & tine thickness: ¾”
• Min. jaw opening: 13”
• Max. jaw opening: 53”
• Hydraulic pressure: 3000 PSI
• Flow rate: 12-24 GPM
• Cross beams: 3” x 3”, 4 GA
• Twin hydraulic cylinder grapple arms with protective guards
• Universal skid steer mount

Couplers not included

Shipping Information

• Shipping dimension: 72” x 42” x 31” (L x W x
H)

• Shipping weight: 1050 lb
