Skid Steer Swivel Backhoe Attachment, 16” Bucket Included, 8’ Digging Depth
Skid Steer Swivel Backhoe Attachment, 16” Bucket Included, 8’ Digging Depth
Regular price
$6,500.00 CAD
Regular price
$14,999.00 CAD
Sale price
$6,500.00 CAD
Unit price
per
Plus Shipping and Tax
- Swivel backhoe attachment with 16” bucket that is perfect for small contractors or landowners to dig ditches, sewer lines, backfill and more
- Well gusseted dual hydraulic cylinder arm and bucket linkage engineered for high breakout force, digging power and 186° of bucket rotation
- Universal skid steer mount to fit most skid steers with a boom and rotation lock for safe and secure transport between job sites
- 70° of left/right swivel rotation and dynamic reach capacity in all directions so you can cover a large area without having to move your setup
- Included flat face couplers and hydraulic hoses for simple, hassle-free hookup to your machine so you can start working and get the job done
- Replaceable bolt-on cast teeth and grease fittings on all pivot points for tough, all-day work and easy to do long term maintenance
- Open seat visibility and foldable stabilizers ensure you stay in place and can see everything you’re working on
- Compatible with 40-100 HP skid steers
- Digging force: 5500-9750 lb
- Hydraulic pressure: 2320-3045 PSI
- Hydraulic cylinders: 2-½” x 13”
- Flow rating: 5-13 GPM

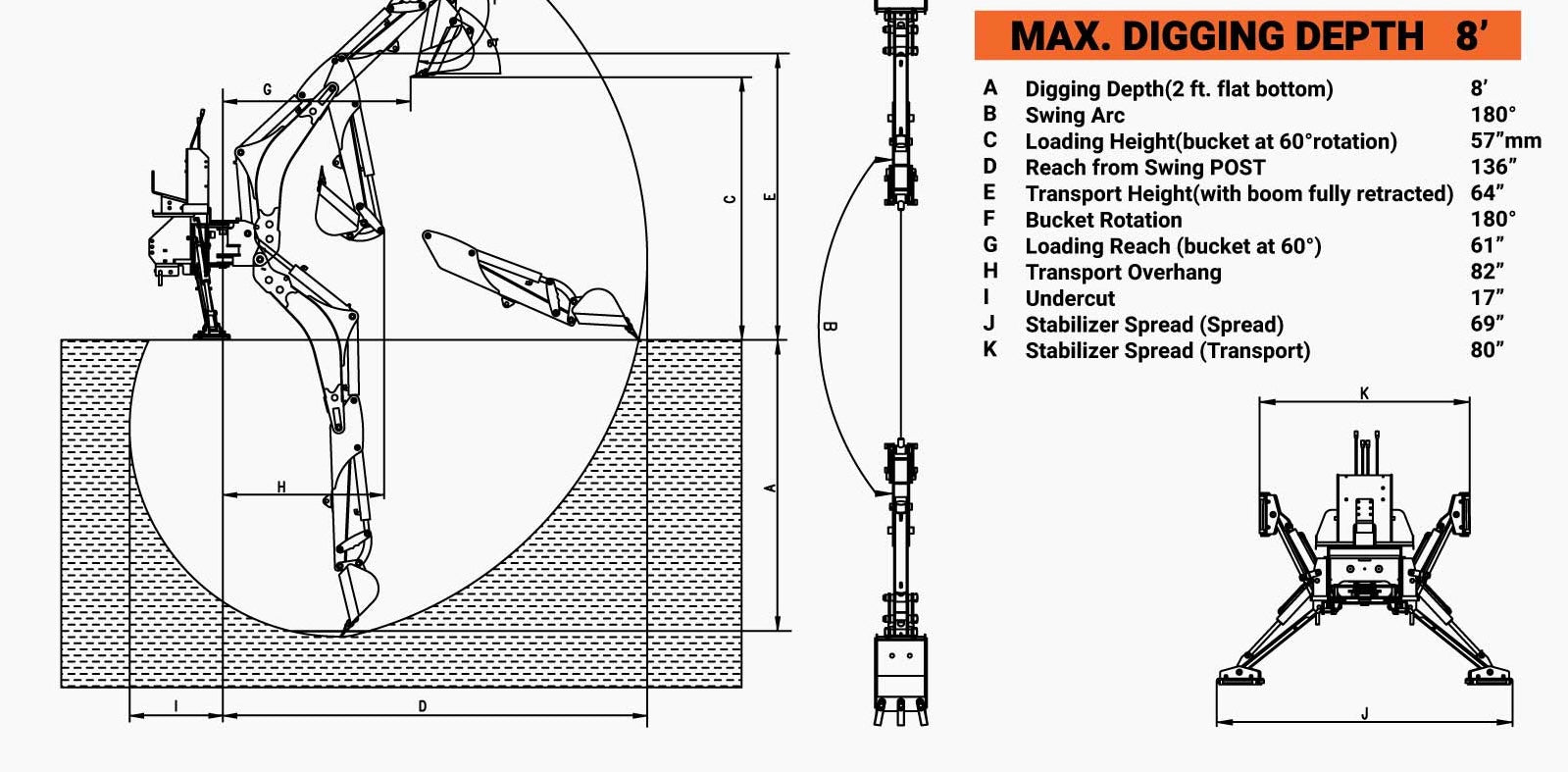

- Digging depth: 96”
- Reach height: 112”
- Horizontal reach: 128”
- Loading height: 58”
- Bucket size: 16”
- Bucket Capacity: 1.4 cu-ft
- Swivel rotation angle: 70° (left/right)
- Bucket flipping angle: 186°
- Foldable stabilizers

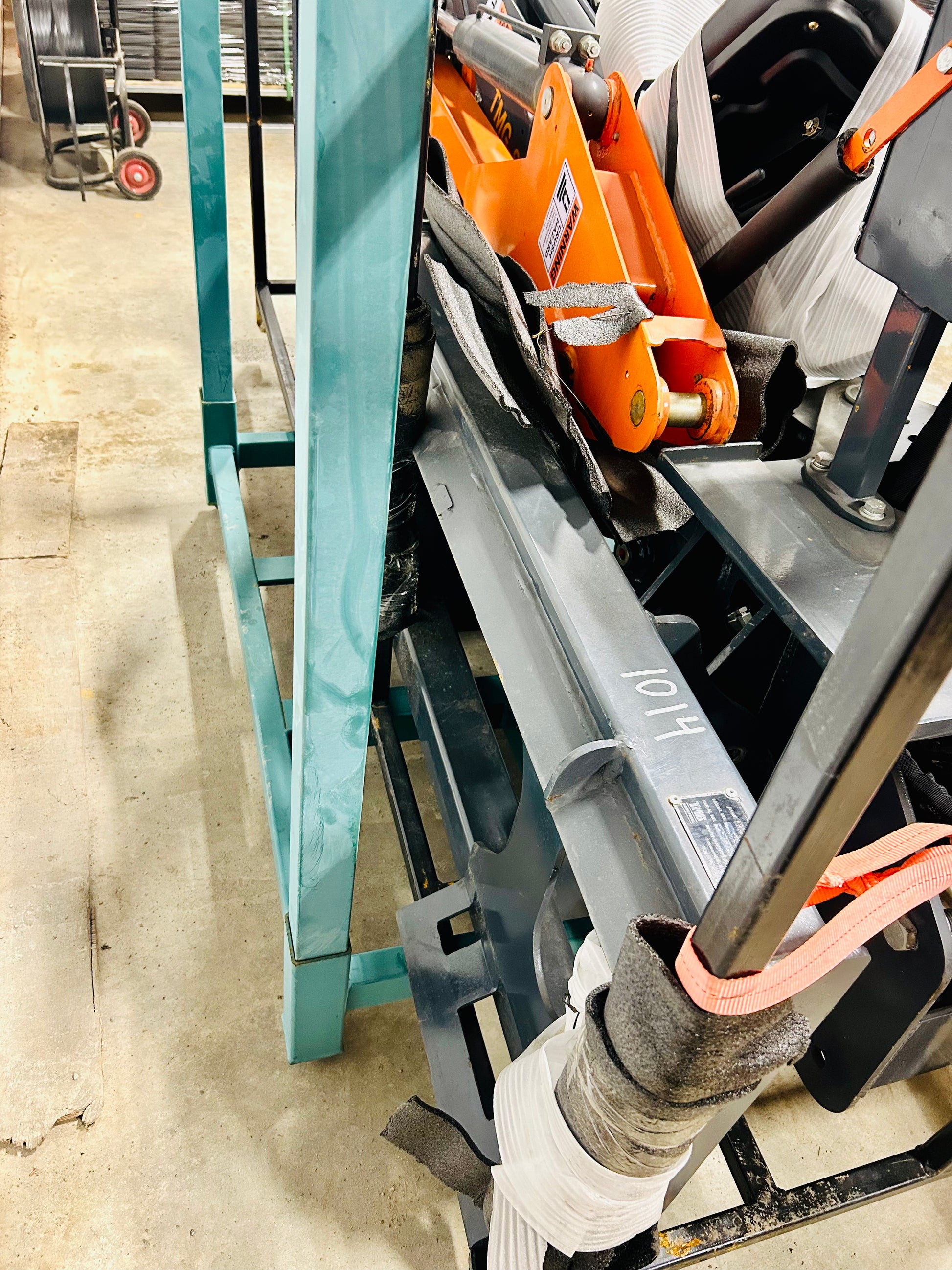

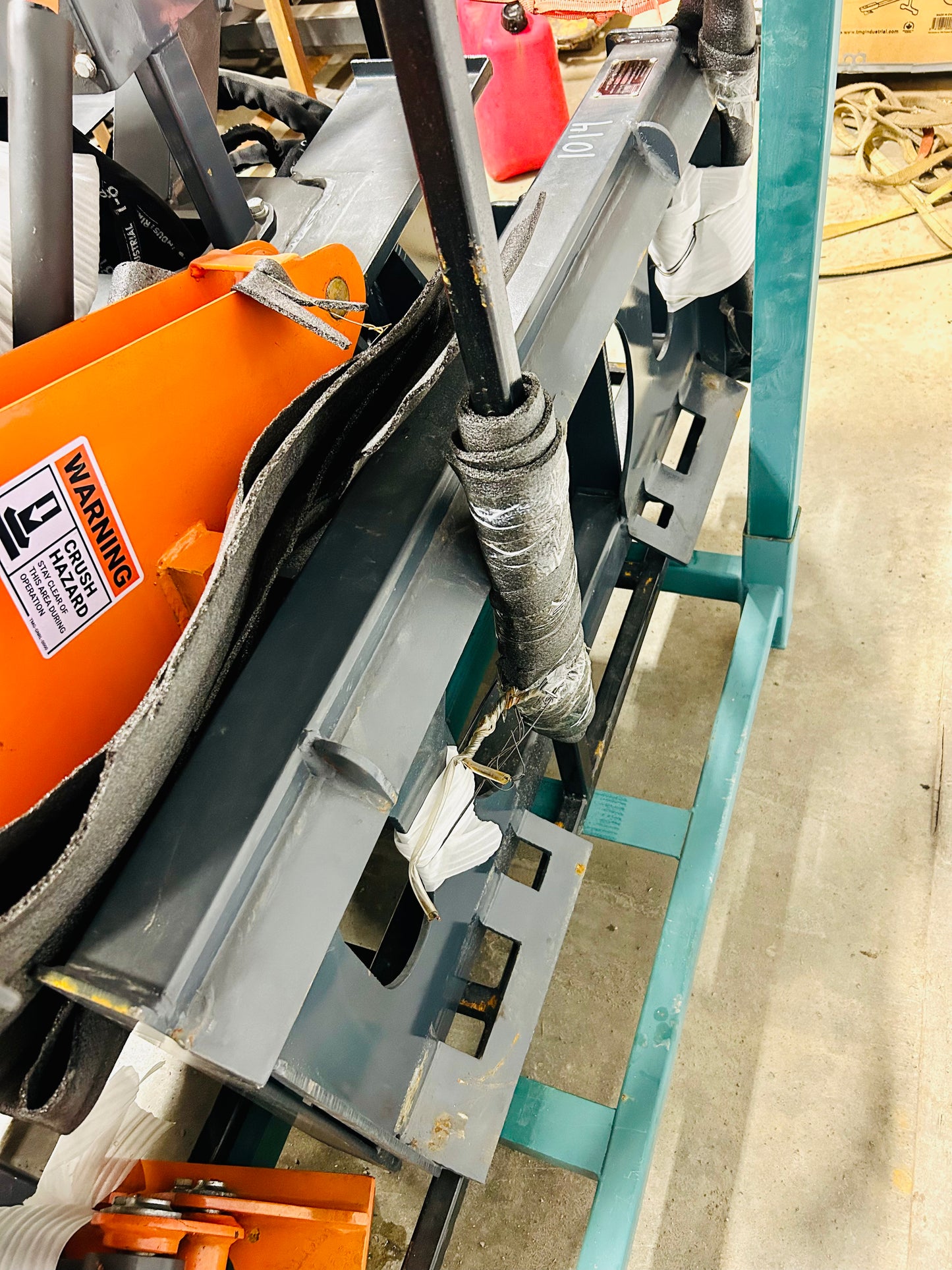

- Universal skid steer quick attach mount

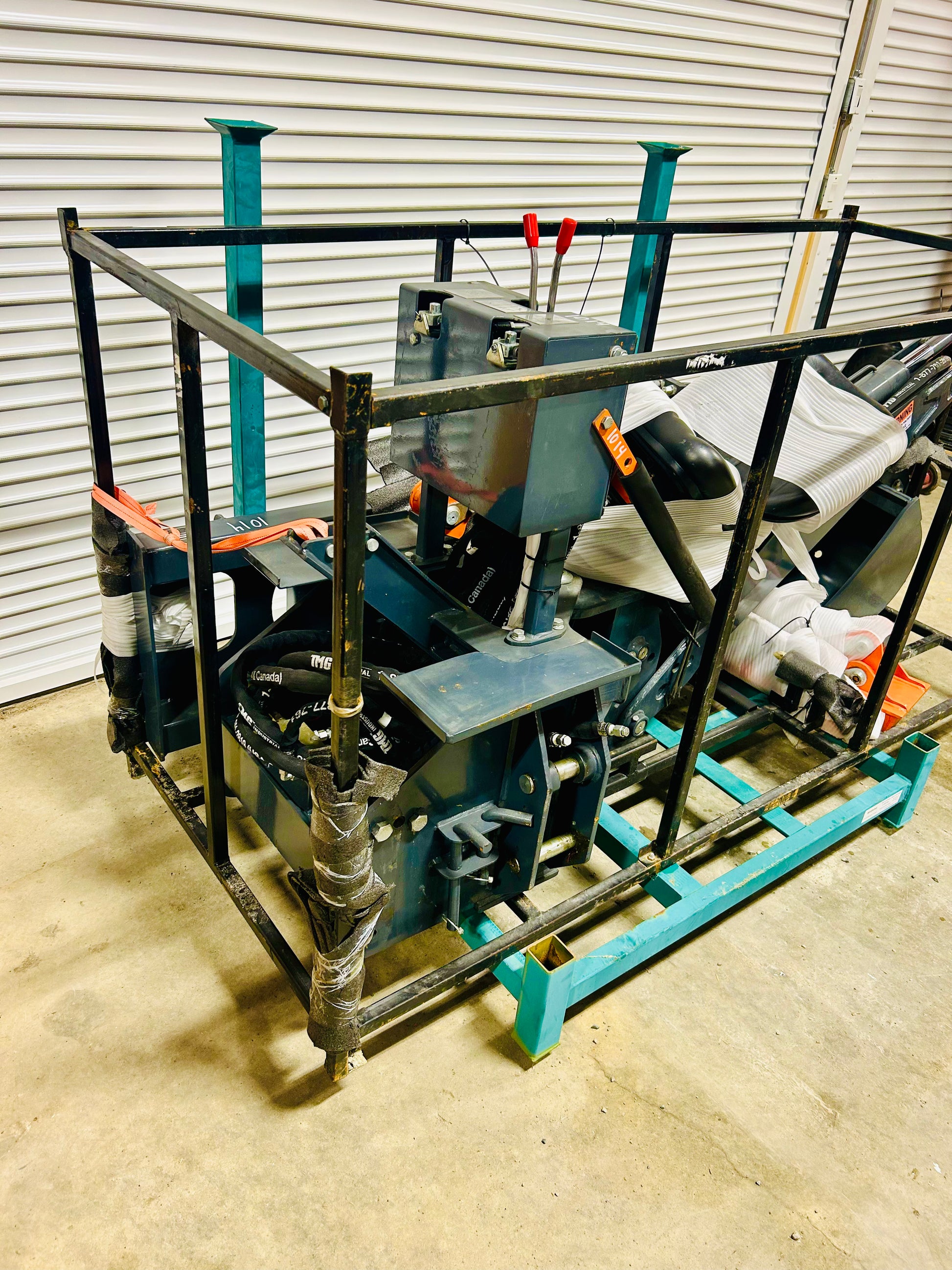

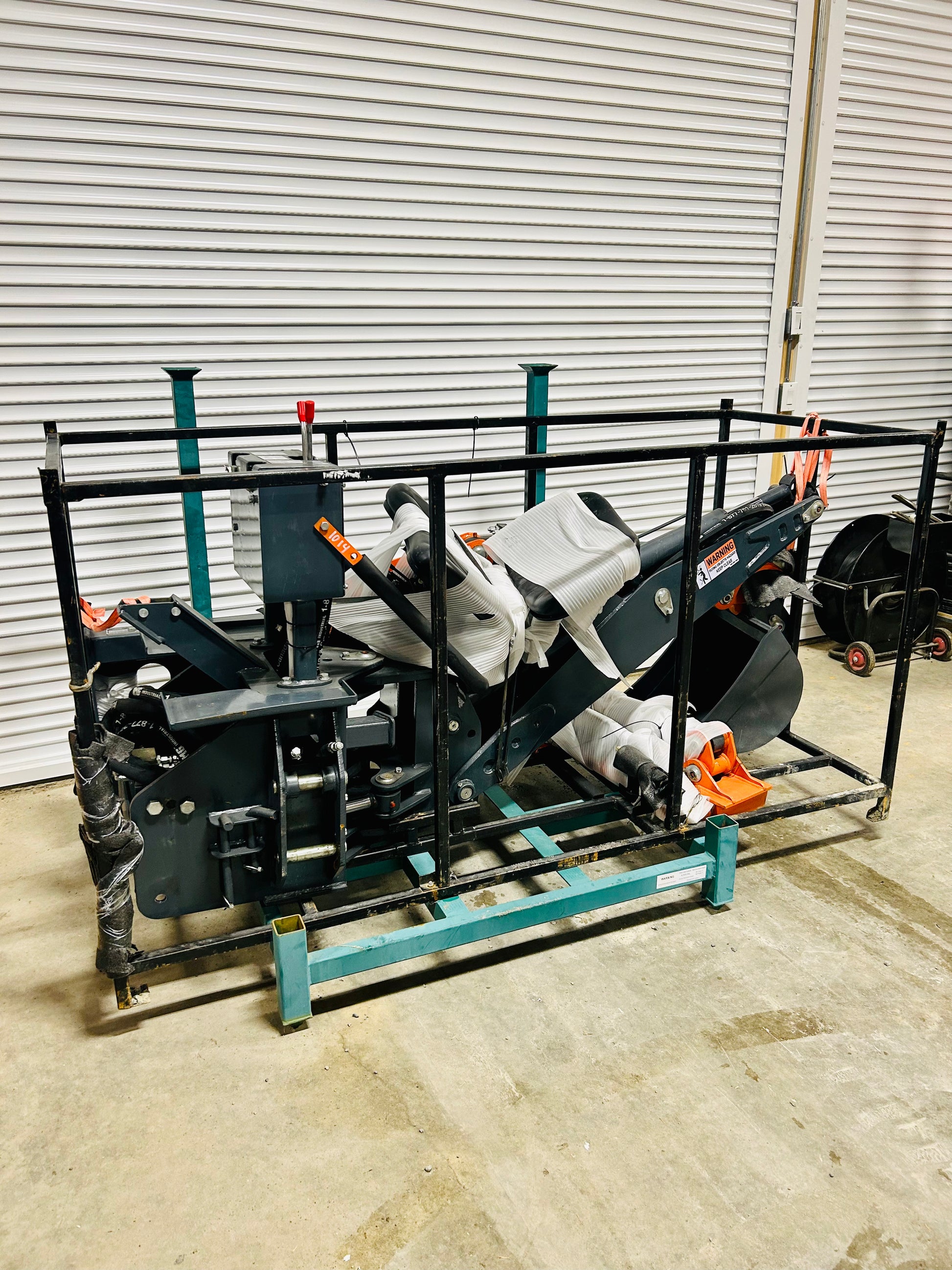

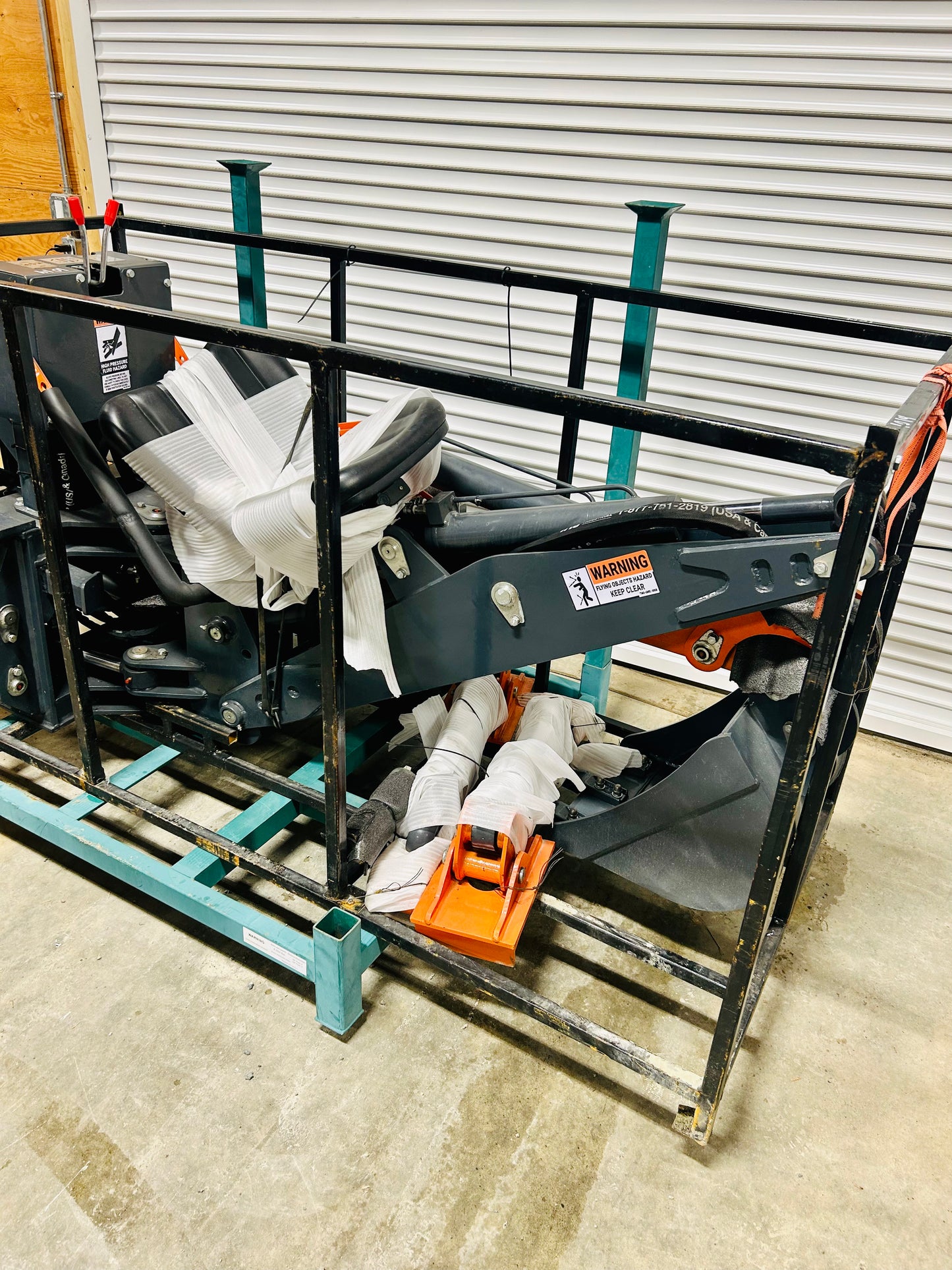

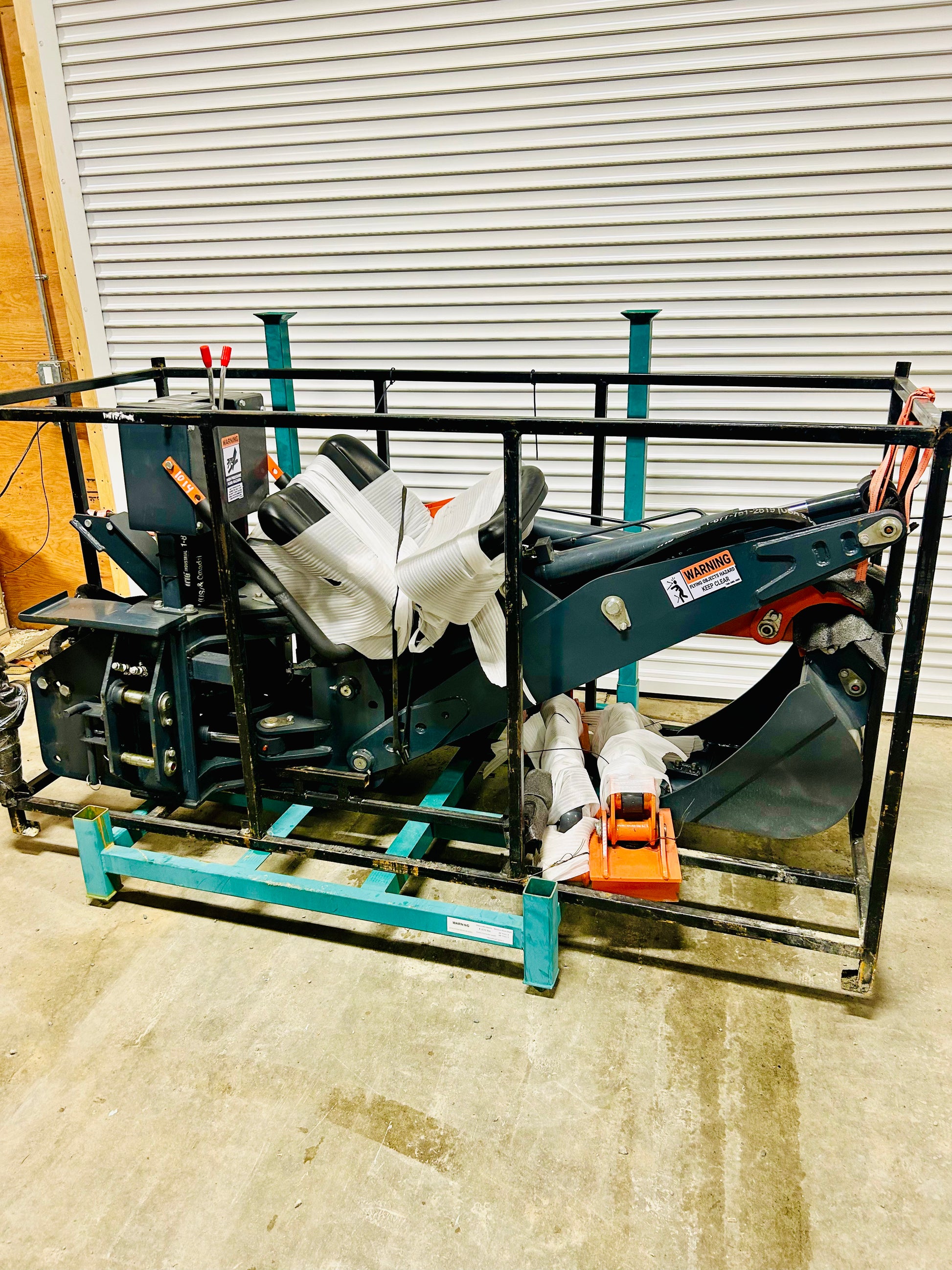

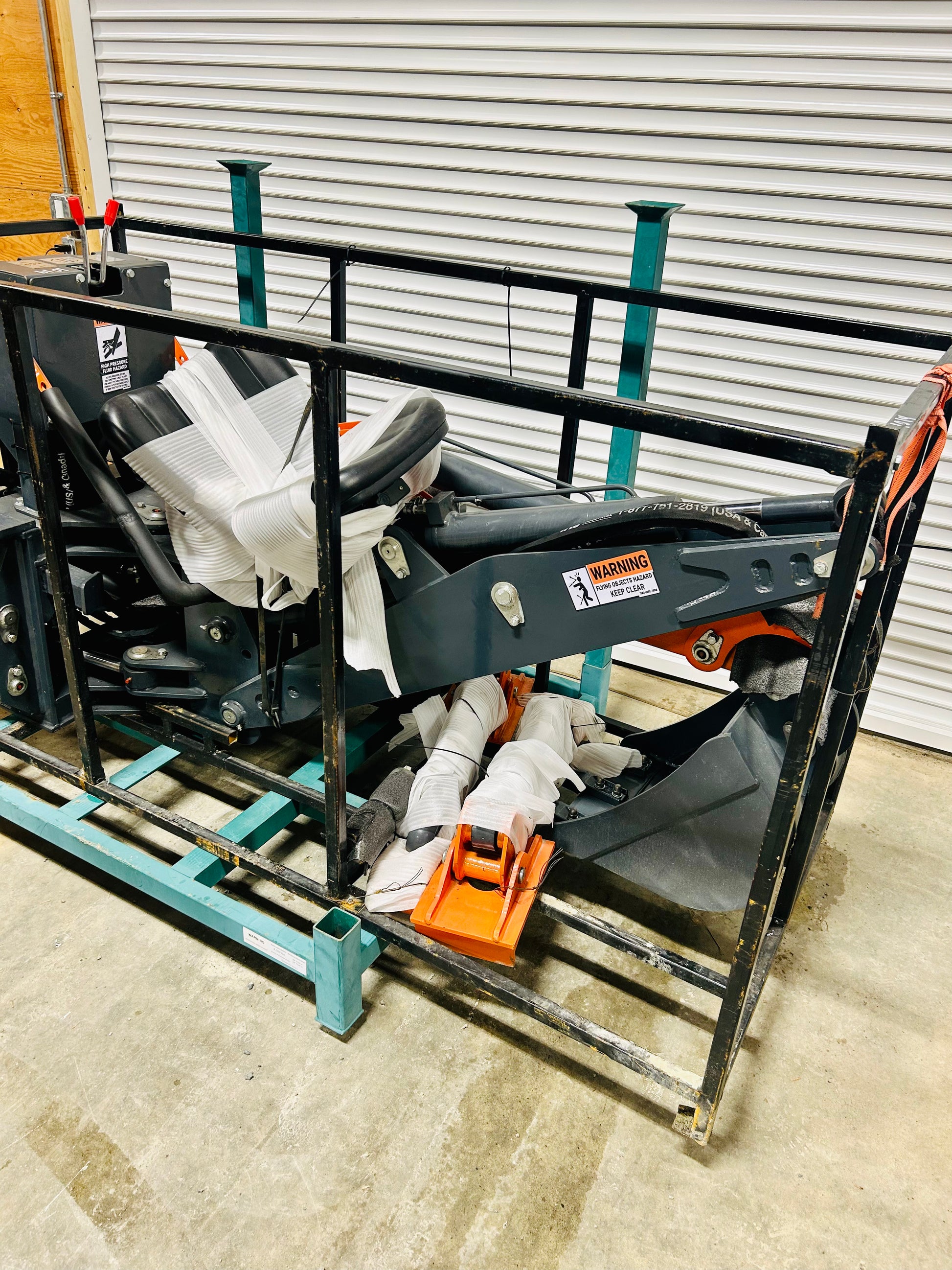

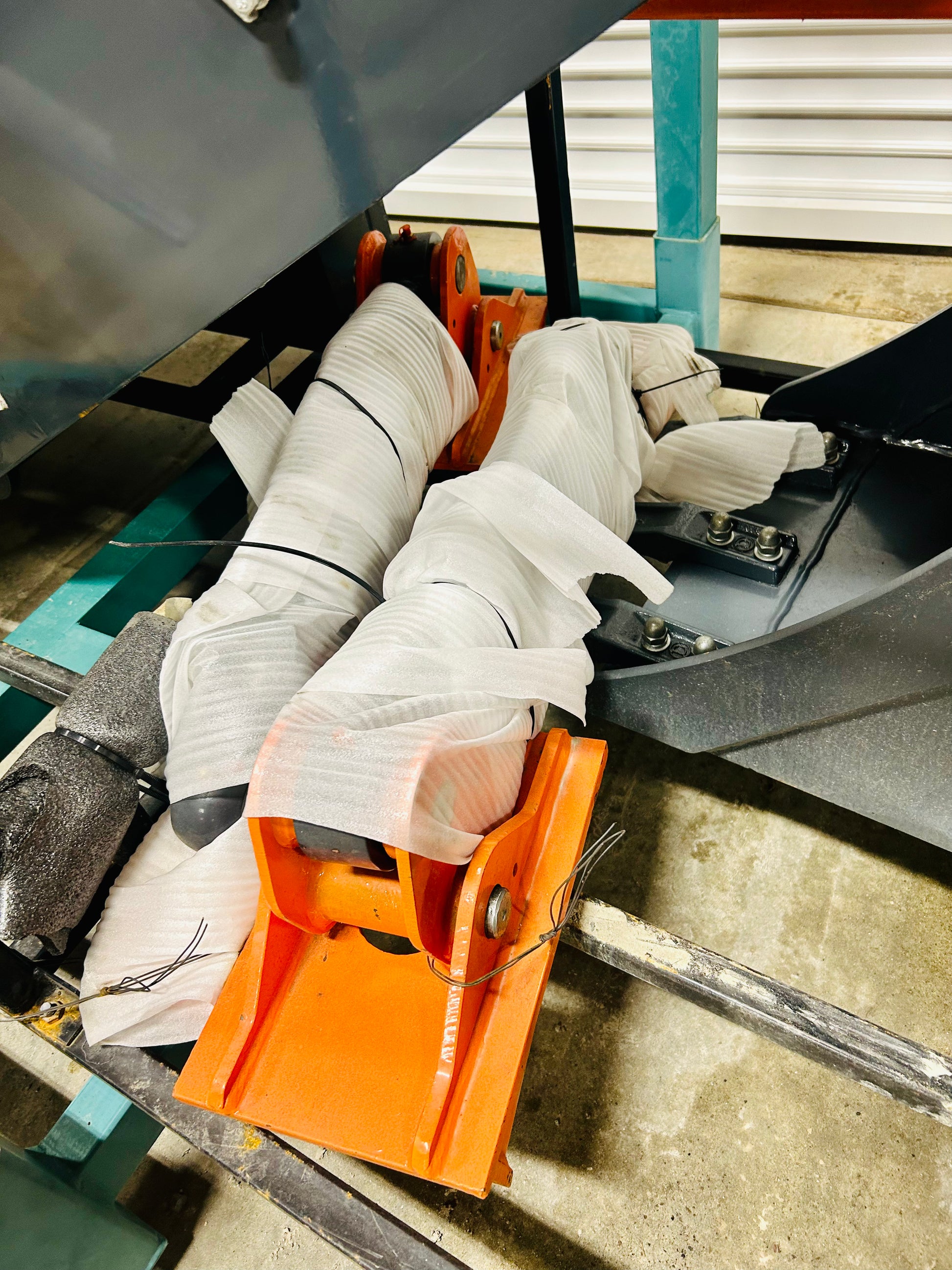

- This product is packed in a metal crate shipping box
- Shipping dimension: 91” x 80” x 32” (L x W x H)
- Shipping weight: 1700 lb
-
Fast Shipping
We offer fast and low cost shipping by having accounts with six different Courier Companies. You will be emailed an invoice with a shipping rate if needed. Living in remote areas or needing additional courier services may result in extra shipping charges.
