Price Includes Shipping to any Manitoulin Transport Terminal in BC, AB, SK, MB, ON

We can arrange shipping Canada Wide

DIMENSION

• Operating Weight: 0.8 Ton (1,600 Ibs)
• Overall Length: 2,802 mm (110 in)
• Overall Width: 962 mm (38 in)
• Overall Height: 2,212 mm (87 in)
• Track Size: 180*72*37 (Width*Pitch Length* Links)

WORKING RANGE

• Max Digging Depth: 1,764 mm (69.5 in)
• Max Digging Height: 2,589 mm (102 in)
• Max Dumping Height: 1,789 mm (70.5 in)
• Max Reach at Ground: 2,605 mm (102.5 in)

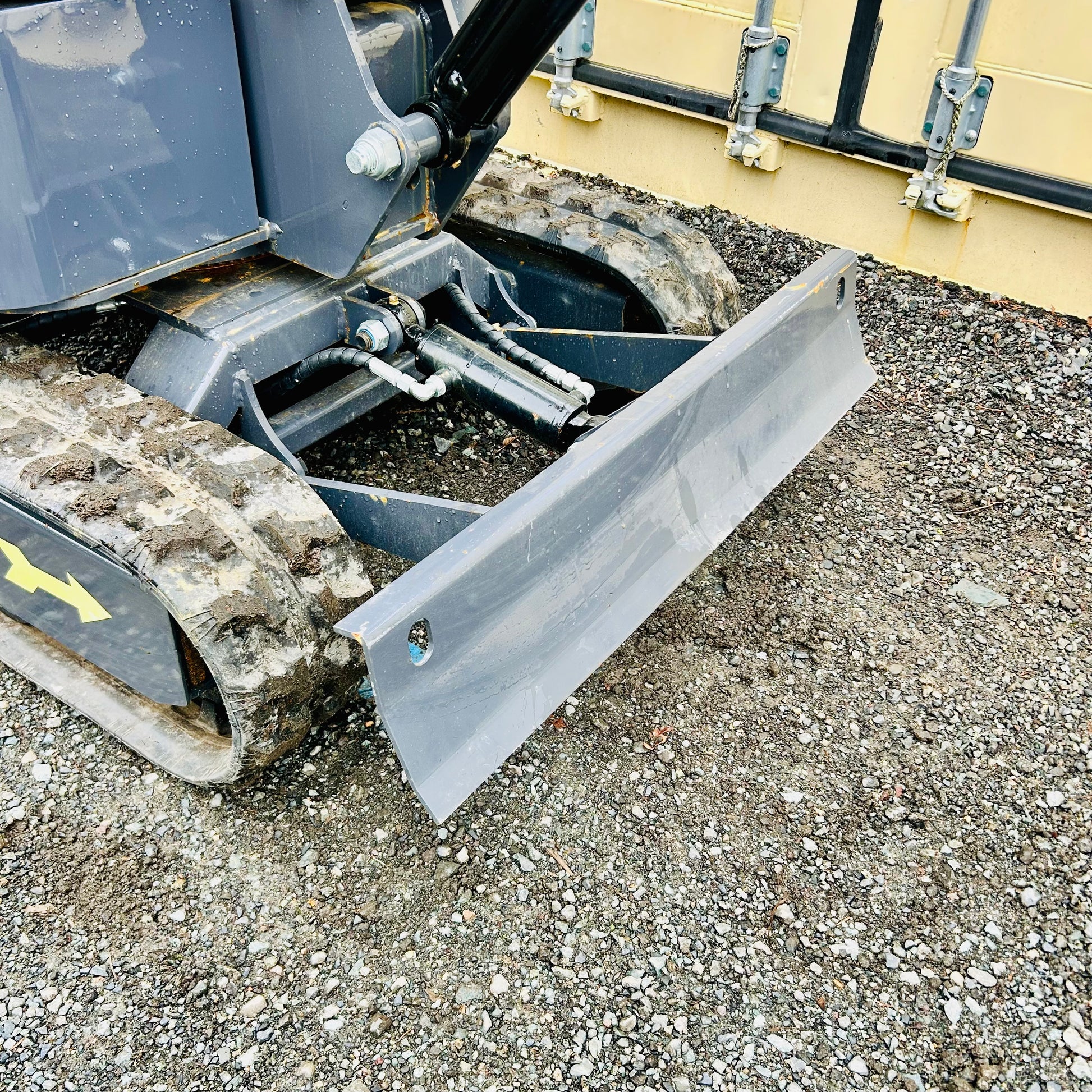

• Blade Width: 900 mm (35.5 in)
• Blade Height: 170 mm (6.5 in)
• Blade Max Lifting Height: 383 mm (15 in)
• Blade Max Drop Depth: 176 mm (7 in)

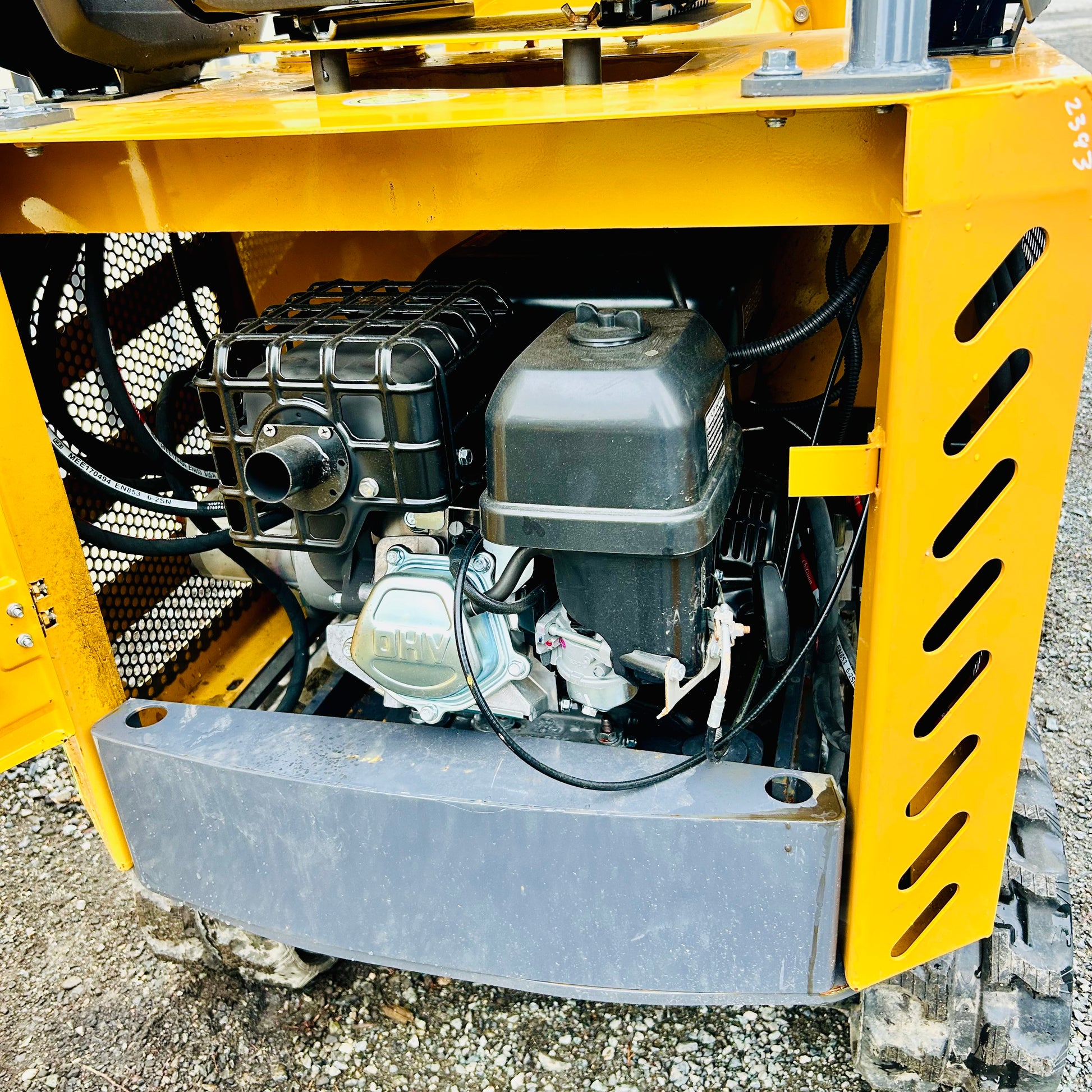

ENGINE

• Engine Brand: Zonsen
• Fuel Type: Gasoline
• Rated Power: 17 HP
• Displacement: 460 cc
• Fuel Capacity: 6.6 L (1.7 gal)
• Fuel Consumption: 0.5-1.2 L/hr
• Hydraulic Flow Rate: 21.6 L/min (5.7 GPM)
• Hydraulic Pressure: 16 MPa (2,320 PSI)

FEATURES

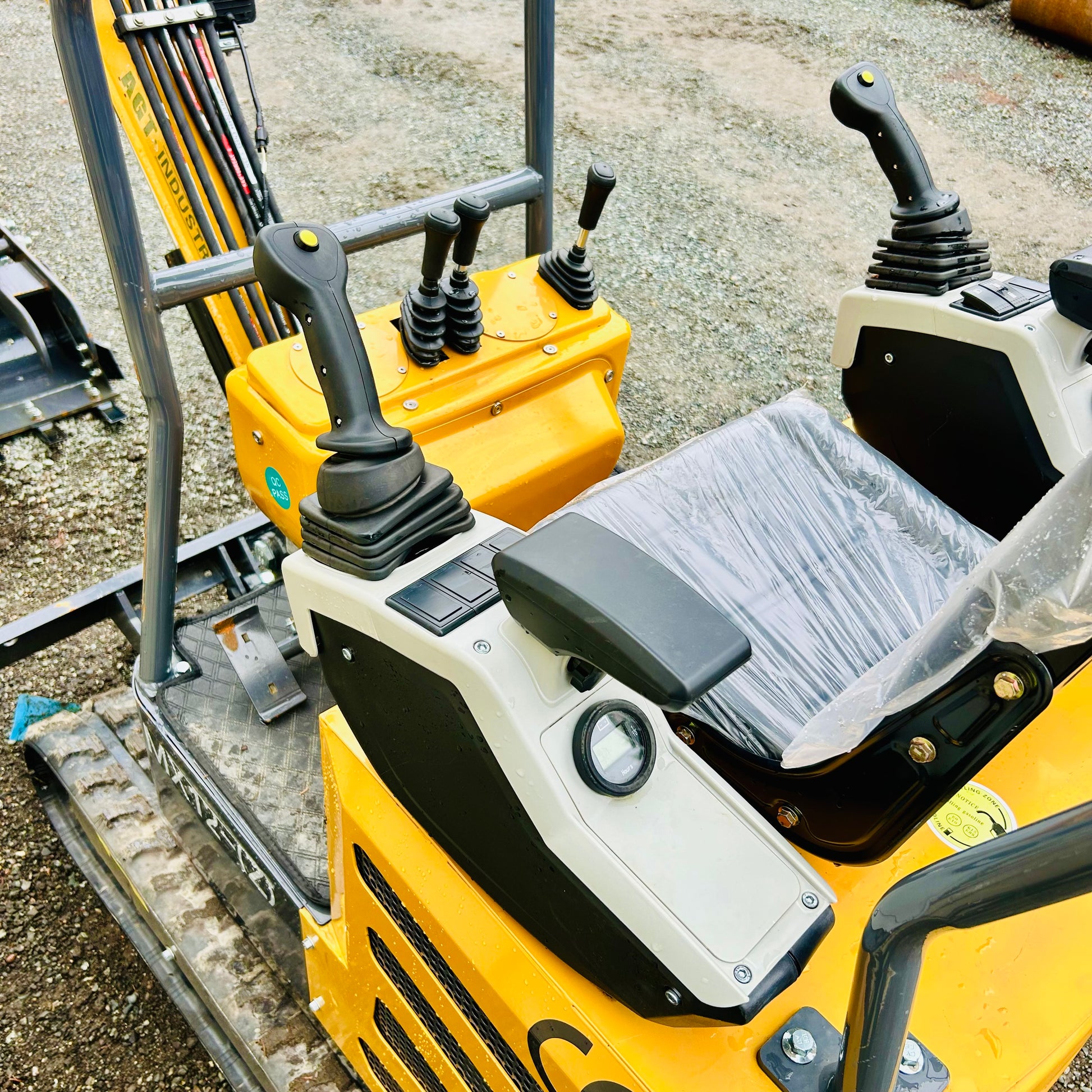

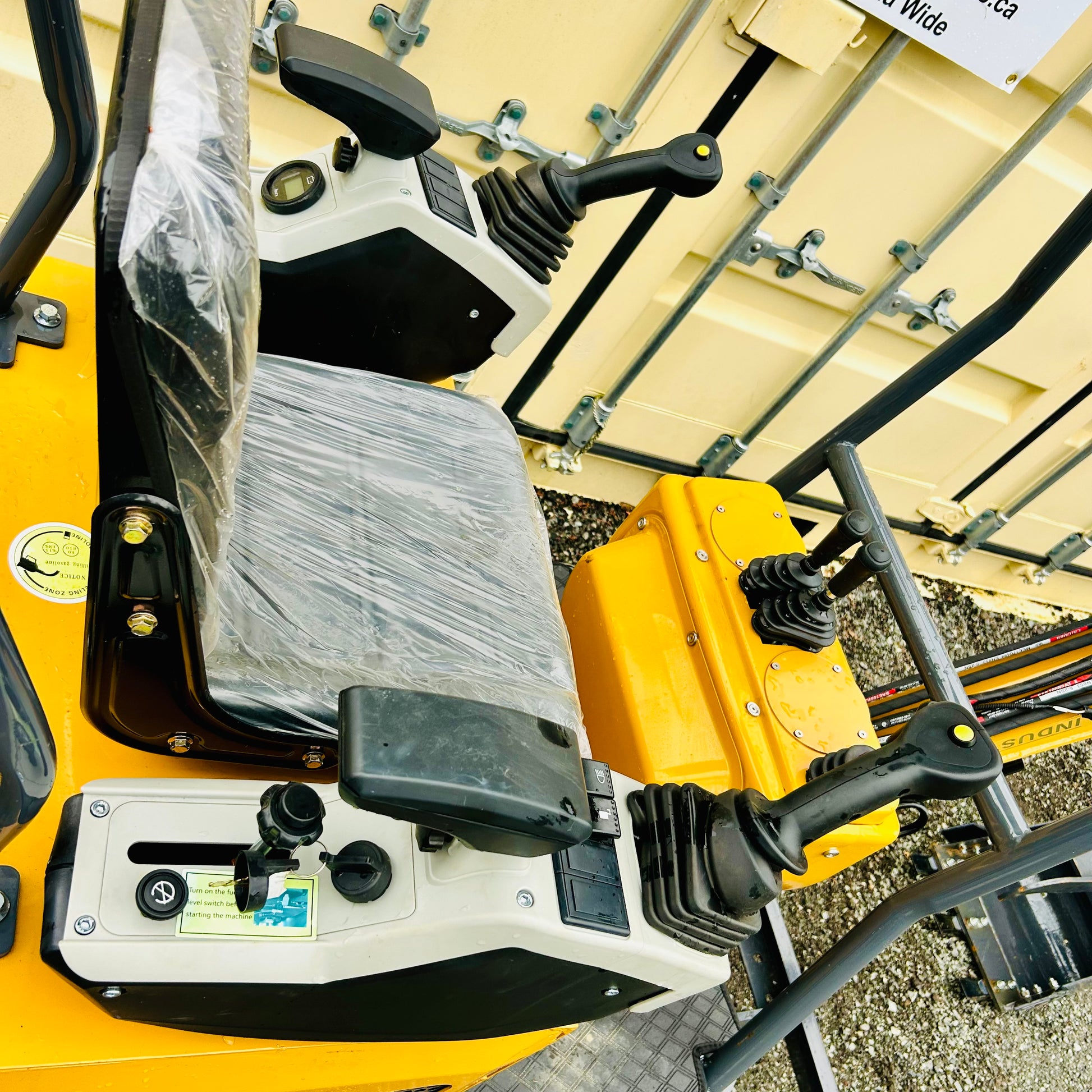

• Pilot Control

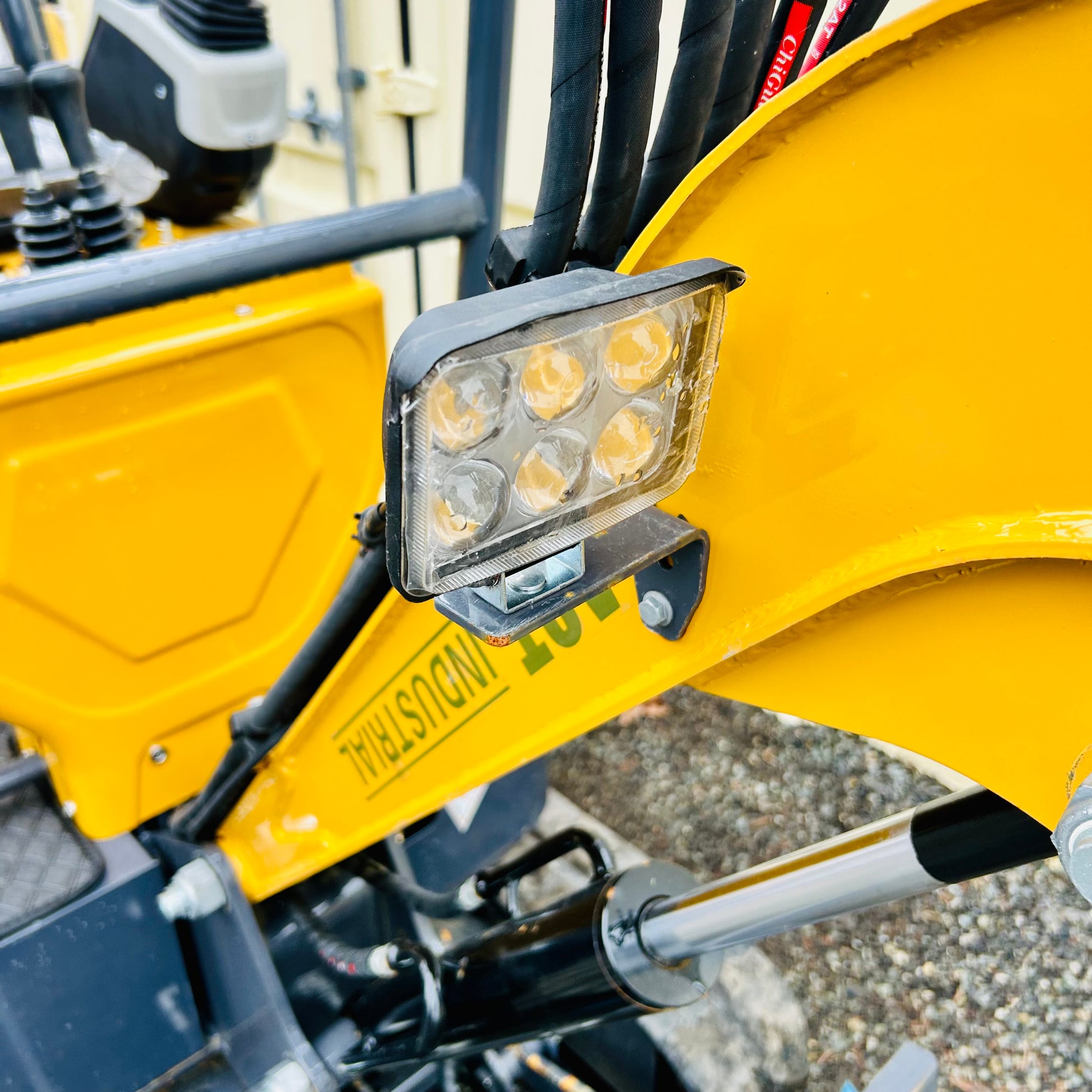

• LED Work Light
